MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

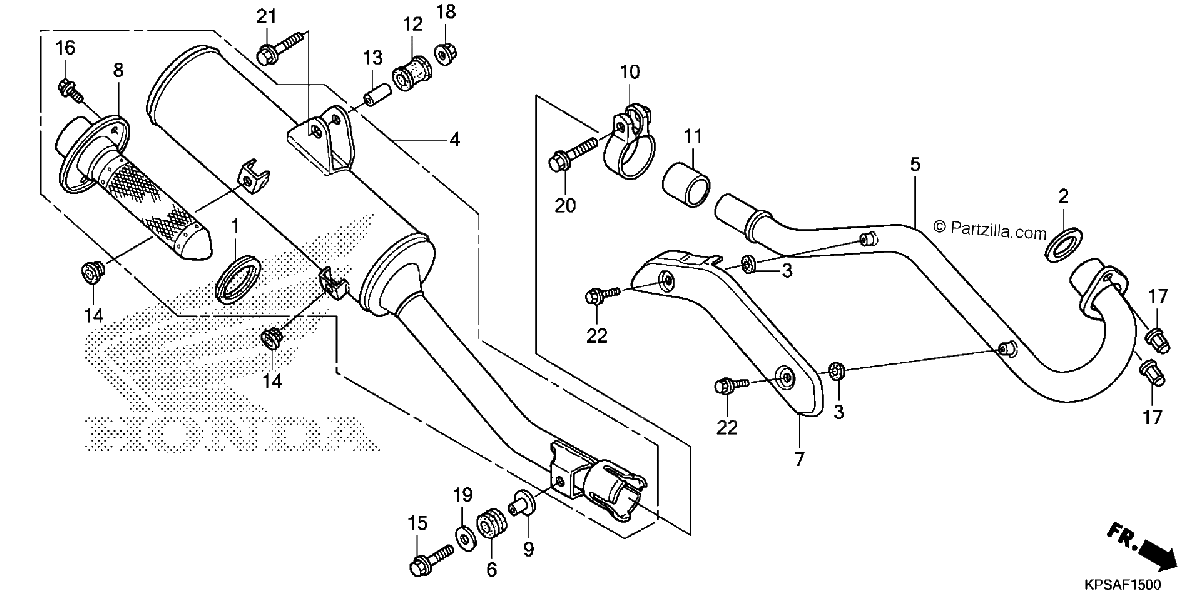

Diagrama de MUFFLER

Repuestos

#1
18291-KPS-900
GASKET, EX. MUFFLER
$8.91¢4 456
1
#2
18291-MN5-650
GASKET, EX. PIPE
$4.21¢2 105
1
#3
18292-KBR-000
GASKET, PROTECTOR
$3.85¢1 926
1
#4
18300-KPS-307
MUFFLER ASSY., EX. (COO)
$1065.67¢532 835
1
#5
18320-KPS-900
PIPE, EX.
$52.72¢26 358
1
#6
18328-KAE-000
RUBBER, RR. CHAMBER MOUNTING
$2.68¢1 340
1
#7
18345-KPS-901ZA
PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK)
$58.71¢29 354
1
#8
18355-KPS-306
ARRESTER ASSY. (COO)
$308.23¢154 117
1
#9
18356-KAE-000
COLLAR, MUFFLER MOUNTING
$5.40¢2 702
1
#10
18373-KRH-D20
BAND, EX. PIPE
$61.13¢30 567
1
#11
18391-MB0-891
GASKET, EX.
$19.14¢9 568
1
#12
18421-KFB-000
RUBBER, MUFFLER MOUNTING
$5.01¢2 507
1
#13
18422-KFB-000
COLLAR, MUFFLER MOUNTING
$5.28¢2 639
1
#14
83512-KA4-700
RUBBER, SIDE COVER
$5.11¢2 553
1
#15
95701-08030-07
BOLT, FLANGE (8X30)
$2.69¢1 346
1
#16
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#16
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#17
90305-KPS-900
NUT, HEX. CAP (7MM)
$9.34¢4 669
1
#18
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#19
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#20
95701-08040-07
BOLT, FLANGE (8X40)
$2.75¢1 374
1
#21
95701-08045-07
BOLT, FLANGE (8X45)
$2.56¢1 282
1
#22
96001-06008-07
BOLT, FLANGE (6X8)
$1.12¢558
1
