FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

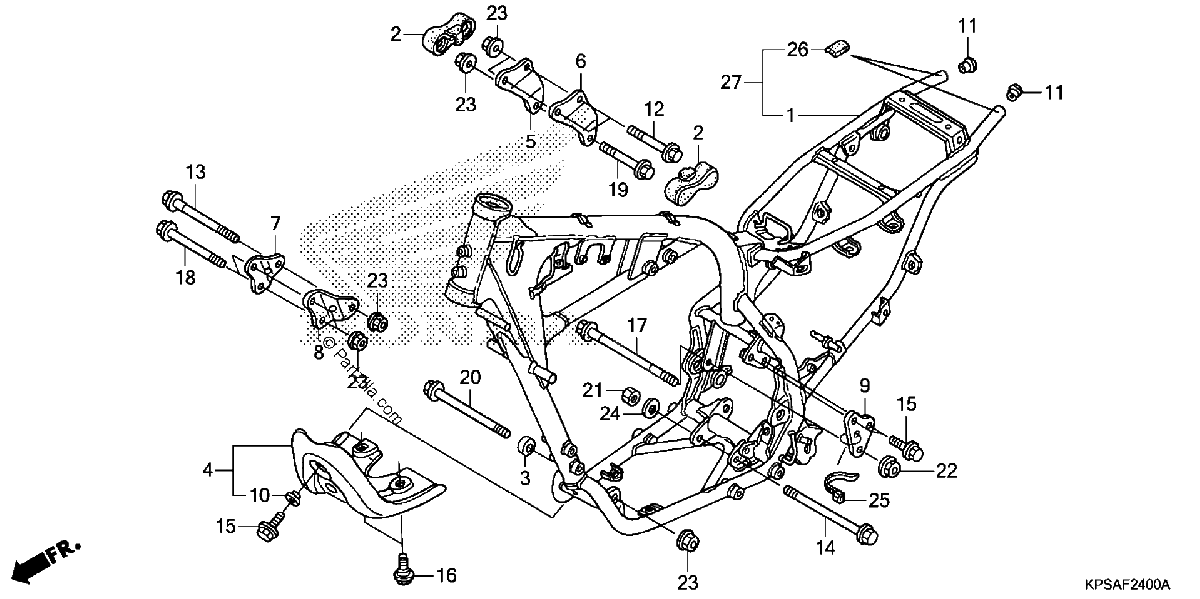

Diagrama de FRAME

Repuestos

#2
50212-KPS-900
RUBBER, TANK GUARD
$4.47¢2 237
1
#3
50318-GE2-000
COLLAR, ENGINE MOUNTING
$7.31¢3 657
1
#4
50351-KPS-900ZA
PLATE, SKID *NH201R* (HUSKY GRAY)
$44.77¢22 385
1
#5
50531-KPS-900
PLATE, R. ENGINE HANGER (UPPER)
$6.14¢3 070
1
#6
50532-KPS-900
PLATE, L. ENGINE HANGER (UPPER)
$6.14¢3 070
1
#7
50533-KPS-900
PLATE, R. FR. ENGINE HANGER
$4.60¢2 300
1
#8
50534-KPS-900
PLATE, L. FR. ENGINE HANGER
$4.60¢2 300
1
#9
50535-KPS-900
PLATE, L. RR. ENGINE HANGER (UPPER)
$2.60¢1 299
1
#10
80138-KPS-900
COLLAR (14X5)
$2.51¢1 254
1
#11
84103-392-000
CAP, RR. BUMPER
$4.34¢2 168
1
#12
90013-KRH-D20
BOLT, FLANGE (8X56)
$1.85¢926
1
#13
90024-MV9-670
BOLT, FLANGE (8X88)
$8.88¢4 439
1
#14
90105-MG3-000
BOLT, FLANGE (10X110)
$10.94¢5 468
1
#15
90107-KPS-900
BOLT, FLANGE (8X16)
$1.21¢604
1
#16
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#17
90152-MBN-671
BOLT, FLANGE (10X109)
$4.28¢2 139
1
#18
90154-KB7-700
BOLT, FLANGE (8X73)
$25.04¢12 518
1
#19
90154-MA0-000
BOLT, FLANGE (8X60)
$8.15¢4 077
1
#20
90156-KK6-000
BOLT, FLANGE (8X96)
$10.74¢5 371
1
#21
94030-10200
NUT, HEX. (10MM)
$1.15¢575
1
#22
90208-GHR-650
NUT, FLANGE (10MM)
$1.00¢500
1
#22
90303-KPS-900
NUT, FLANGE (10MM)
$1.00¢500
1
#23
90208-GHR-640
NUT, FLANGE (8MM)
$2.77¢1 386
1
#23
90306-KPS-900
NUT, FLANGE (8MM)
$2.77¢1 386
1
#24
90441-MT3-000
WASHER (10MM)
$11.65¢5 825
1
#25
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#26
17518-KPF-900
RUBBER B, FUEL TANK
$2.06¢1 029
1
#27
50010-KPS-B70ZA
FRAME ASSY. *NH146M* (ACCURATE SILVER METALLIC)
$792.00¢396 003
1
