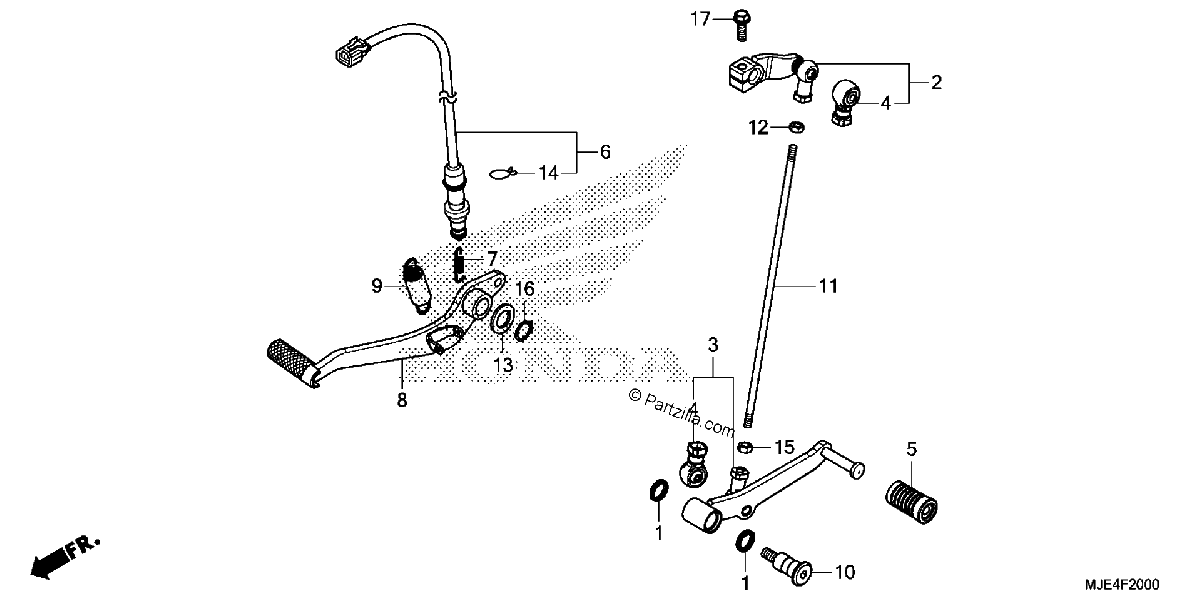

PEDAL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RUBBER, DUST SEAL
$4.99¢2 496
#001
RUBBER, DUST SEAL
$4.99¢2 496
#2
ARM, GEARSHIFT
$26.00¢13 001
#002
ARM, GEARSHIFT
$26.00¢13 001
#003
PEDAL, GEARSHIFT (COO)
$62.48¢31 240
#3
PEDAL, GEARSHIFT (COO)
$62.48¢31 240
#004
COVER, DUST
$7.77¢3 887
#4
COVER, DUST
$7.77¢3 887
#005
RUBBER, CHANGE PEDAL
$8.31¢4 157
#5
RUBBER, CHANGE PEDAL
$8.31¢4 157
#006
SWITCH ASSY., RR. STOP
$28.58¢14 289
#6
SWITCH ASSY., RR. STOP
$28.58¢14 289
#7
SPRING, STOP SWITCH
$3.04¢1 518
#007
SPRING, STOP SWITCH
$3.04¢1 518
#8
PEDAL, BRAKE (COO)
$44.06¢22 028
#008
PEDAL, BRAKE (COO)
$44.06¢22 028
#009
SPRING Assembly., BRAKE PEDAL
$3.36¢1 679
#9
SPRING Assembly., BRAKE PEDAL
$3.36¢1 679
#10
BOLT, CHANGE PIVOT
$9.92¢4 962
#010
BOLT, CHANGE PIVOT
$9.92¢4 962
#11
BOLT, TIE ROD
$5.01¢2 507
#011
BOLT, TIE ROD
$5.01¢2 507
#012
NUT, SPECIAL (6MM) (LEFT HAND THREAD)
$2.69¢1 346
#12
NUT, SPECIAL (6MM) (LEFT HAND THREAD)
$2.69¢1 346
#013
WASHER (15.2X25)
$2.83¢1 414
#13
WASHER (15.2X25)
$2.83¢1 414
#14
CLIP, SWITCH COVER
$2.13¢1 064
#014
CLIP, SWITCH COVER
$2.13¢1 064
#15
NUT, HEX. (6MM)
$1.54¢771
#015
NUT, HEX. (6MM)
$1.54¢771
#016
CIRCLIP, OUTER (15MM)
$0.80¢402
#16
CIRCLIP, OUTER (15MM)
$0.80¢402
#017
BOLT, FLANGE (6X20)
$1.92¢960
#17
BOLT, FLANGE (6X20)
$1.92¢960
