CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

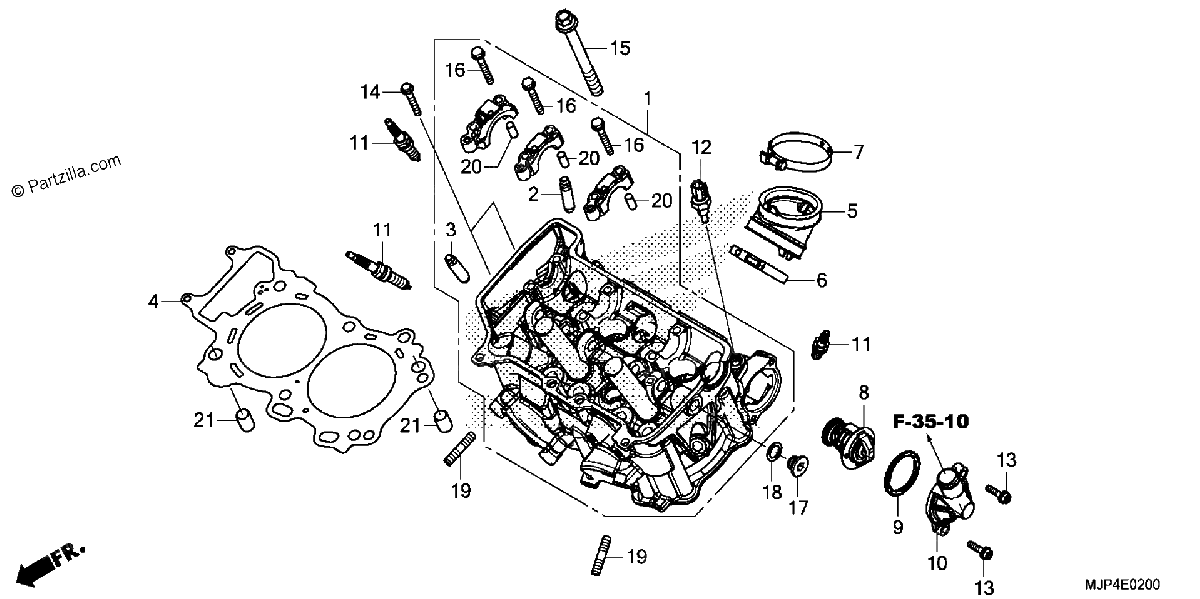

Diagrama de CYLINDER HEAD

Repuestos

#001
12010-MJP-G50
CYLINDER HEAD ASSY.
$1971.99¢985 993
1
#1
12010-MJP-G50
CYLINDER HEAD ASSY.
$1971.99¢985 993
1
#2
12204-HL4-305
GUIDE, VALVE (OVER SIZE)
$20.02¢10 011
1
#002
12204-HL4-305
GUIDE, VALVE (OVER SIZE)
$20.02¢10 011
1
#3
12205-HL4-305
GUIDE, EX VALVE (OVER SIZE)
$17.02¢8 510
1
#003
12205-HL4-305
GUIDE, EX VALVE (OVER SIZE)
$17.02¢8 510
1
#004
12251-MJP-G51
GASKET, CYLINDER HEAD
$55.31¢27 658
1
#4
12251-MJP-G51
GASKET, CYLINDER HEAD
$55.31¢27 658
1
#5
16211-MJP-G50
INSULATOR, THROTTLE BODY
$25.85¢12 926
1
#005
16211-MJP-G50
INSULATOR, THROTTLE BODY
$25.85¢12 926
1
#6
16218-MCA-000
BAND, INSULATOR
$8.13¢4 065
1
#006
16218-MCA-000
BAND, INSULATOR
$8.13¢4 065
1
#7
16218-MJP-G50
BAND, INSULATOR ENGINE
$11.82¢5 911
1
#007
16218-MJP-G50
BAND, INSULATOR ENGINE
$11.82¢5 911
1
#8
19300-MCJ-003
THERMOSTAT
$55.46¢27 732
1
#008
19300-MCJ-003
THERMOSTAT
$55.46¢27 732
1
#009
19305-KV3-010
RUBBER, THERMOSTAT
$6.76¢3 381
1
#9
19305-KV3-010
RUBBER, THERMOSTAT
$6.76¢3 381
1
#10
19321-MJP-G50
COVER, THERMOSTAT
$34.65¢17 325
1
#010
19321-MJP-G50
COVER, THERMOSTAT
$34.65¢17 325
1
#11
31909-MJP-G51
SPARK PLUG (SILMAR8A9S) (NGK)
$31.45¢15 726
1
#011
31909-MJP-G51
SPARK PLUG (SILMAR8A9S) (NGK)
$31.45¢15 726
1
#12
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$53.60¢26 801
1
#012
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$53.60¢26 801
1
#013
90001-MGZ-J00
BOLT, FLANGE SOCKET (6X22)
$0.64¢322
1
#13
90001-MGZ-J00
BOLT, FLANGE SOCKET (6X22)
$0.64¢322
1
#014
90006-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$2.28¢1 138
1
#14
90006-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$2.28¢1 138
1
#015
90007-HL4-003
BOLT-WASHER (12X118)
$9.50¢4 749
1
#15
90007-HL4-003
BOLT-WASHER (12X118)
$9.50¢4 749
1
#16
90017-MA6-000
BOLT, FLANGE (6X45.5)
$3.74¢1 869
1
#016
90017-MA6-000
BOLT, FLANGE (6X45.5)
$3.74¢1 869
1
#017
90032-MJP-G50
BOLT, SEALING (14MM)
$7.99¢3 996
1
#17
90032-MJP-G50
BOLT, SEALING (14MM)
$7.99¢3 996
1
#018
90544-KF0-000
WASHER, SEALING (14MM)
$3.63¢1 817
1
#18
90544-KF0-000
WASHER, SEALING (14MM)
$3.63¢1 817
1
#19
92900-08025-0B
BOLT, STUD (8X25)
$2.60¢1 299
1
#019
92900-08025-0B
BOLT, STUD (8X25)
$2.60¢1 299
1
#20
94301-08200
PIN, DOWEL (8X20)
$2.66¢1 328
1
#020
94301-08200
PIN, DOWEL (8X20)
$2.66¢1 328
1
#21
94301-14200
PIN, DOWEL (14X20)
$2.70¢1 351
1
#021
94301-14200
PIN, DOWEL (14X20)
$2.70¢1 351
1
