FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

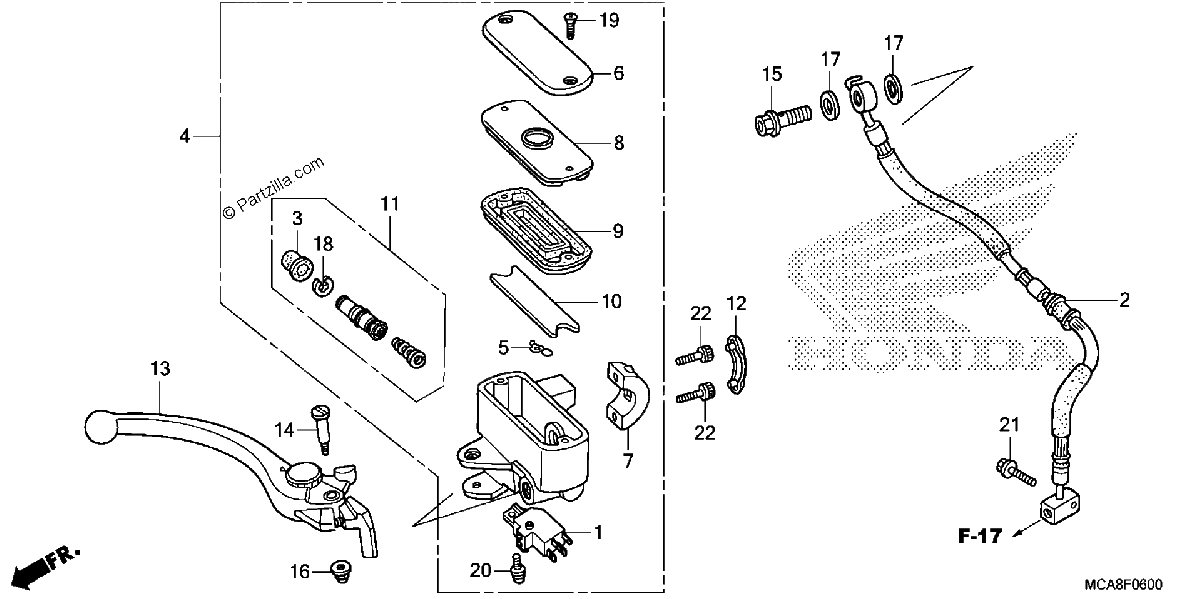

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
35340-MCA-S41
SWITCH ASSY., FR. STOP CRUISE
$16.84¢8 418
1
#2
45124-MCA-003
MAIN HOSE A, FR. BRAKE
$100.16¢50 082
1
#3
45504-410-003
BOOT
$13.10¢6 549
1
#4
45510-MCA-305
MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)
$291.30¢145 648
1
#5
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#6
45513-MAM-A61
CAP, MASTER CYLINDER
$36.05¢18 026
1
#7
45517-MAM-A62
HOLDER, MASTER CYLINDER
$15.26¢7 630
1
#8
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#9
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#10
45523-MN5-006
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.01¢2 507
1
#11
45530-MCA-006
PISTON SET, FR. MASTER CYLINDER
$19.52¢9 758
1
#12
45553-MAM-A60
CAP, BRAKE MASTER CYLINDER HOLDER
$3.47¢1 737
1
#13
53170-MCA-305
LEVER ASSY., R. HANDLE (COO)
$49.97¢24 984
1
#14
90114-MG9-951
BOLT, HANDLE LEVER
$8.80¢4 399
1
#15
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#16
90202-ZV0-000
NUT, CAP (6MM)
$3.29¢1 644
1
#17
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#18
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#19
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#19
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#20
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#20
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#21
95801-06025-07
BOLT, FLANGE (6X25)
$2.13¢1 064
1
#22
96600-06020-17
BOLT, SOCKET (6X20)
$1.56¢782
1
