UPPER COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

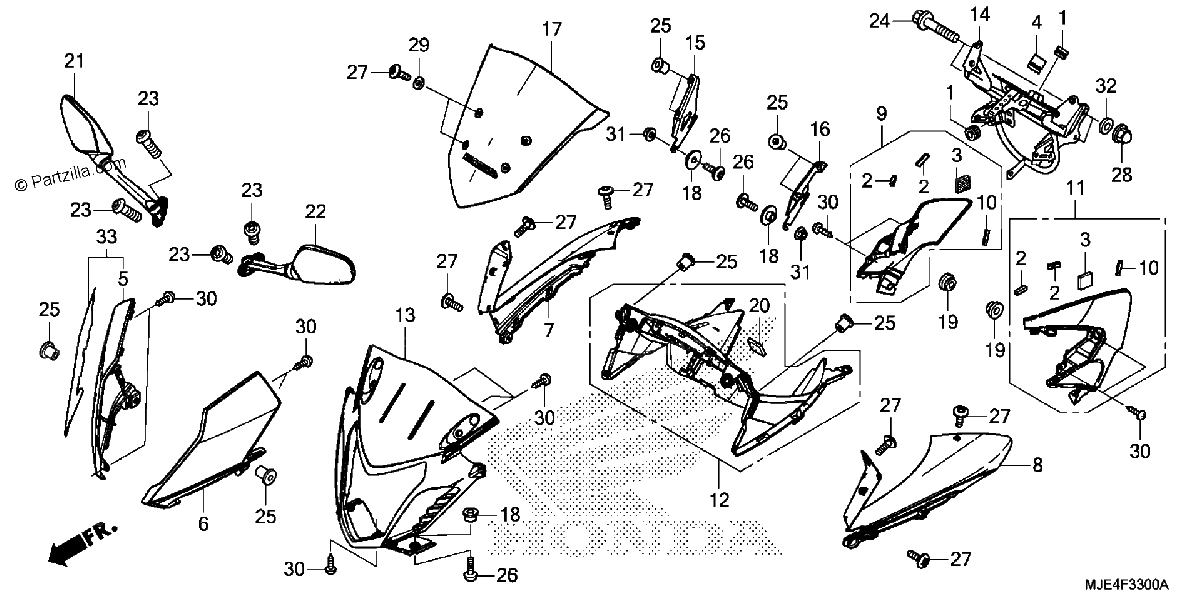

Diagrama de UPPER COWL

Repuestos

#1
11344-MB0-000
GROMMET A, RR. COVER (8X16X6.6)
$3.36¢1 679
1
#2
17541-MJE-D00
FASTENER C, DUAL LOCK (8X25)
$1.56¢782
1
#3
17542-MJE-D00
FASTENER D, DUAL LOCK (20X20)
$2.36¢1 179
1
#4
37215-KZZ-900
RUBBER, METER SETTING
$1.68¢839
1
#5
64111-MJE-D00ZA
COWL A, Right. (UPPER) R263 (MILLENNIUM RED)
$42.10¢21 051
1
#5
64111-MJE-D00ZD
COWL A, Right. (UPPER) PB215C (CANDY TAHITIAN BLUE)
$33.71¢16 853
1
#5
64111-MJE-D00ZE
COWL A, Right. (UPPER) NH436M (MAT GUNPOWDER BLACK METALLIC)
$42.06¢21 028
1
#6
64121-MJE-D00ZA
COWL A, Left (UPPER) R263 (MILLENNIUM RED)
$42.10¢21 051
1
#6
64121-MJE-D00ZD
COWL A, Left (UPPER) PB215C (CANDY TAHITIAN BLUE)
$33.71¢16 853
1
#6
64121-MJE-D00ZE
COWL A, Left (UPPER) NH436M (MAT GUNPOWDER BLACK METALLIC)
$42.06¢21 028
1
#7
64131-MJE-D00ZE
COWL B, Right. (UPPER) NH436M (MAT GUNPOWDER BLACK METALLIC)
$45.69¢22 845
1
#7
64131-MJE-D00ZA
COWL B, Right. (UPPER) R263 (MILLENNIUM RED)
$51.34¢25 668
1
#7
64131-MJE-D00ZD
COWL B, Right. (UPPER) PB215C (CANDY TAHITIAN BLUE)
$53.20¢26 599
1
#8
64141-MJE-D00ZA
COWL B, Left (UPPER) R263 (MILLENNIUM RED)
$51.34¢25 668
1
#8
64141-MJE-D00ZD
COWL B, Left (UPPER) PB215C (CANDY TAHITIAN BLUE)
$53.20¢26 599
1
#8
64141-MJE-D00ZE
COWL B, Left (UPPER) NH436M (MAT GUNPOWDER BLACK METALLIC)
$56.05¢28 025
1
#9
64150-MJE-D00
COWL Assembly C, Right. (UPPER)
$19.87¢9 936
1
#10
64152-MJE-D00
RUBBER, COWL (UPPER)
$1.64¢822
1
#11
64160-MJE-D00
COWL Assembly C, Left (UPPER)
$16.34¢8 171
1
#12
64170-MJE-D02
PANEL Assembly., METER
$70.83¢35 414
1
#13
64181-MJE-D00
COVER, HEADLIGHT
$39.91¢19 953
1
#14
64501-MJE-D00
STAY, Front COWL (UPPER)
$189.05¢94 524
1
#15
67102-MJE-D00
STAY, Right SCREEN
$20.29¢10 143
1
#16
67103-MJE-D00
STAY, L SCREEN
$12.56¢6 279
1
#17
67110-MJE-D00ZA
WINDSCREEN (TYPE1) (WL)
$55.43¢27 715
1
#18
80113-MJE-D00
COLLAR A
$2.96¢1 478
1
#19
83551-376-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#20
86150-GFC-901
EMBLEM, PRODUCT (MARUI)
$3.36¢1 679
1
#21
88110-MJE-305
MIRROR Assembly., Right BACK (COO)
$59.98¢29 992
1
#22
88120-MJE-305
MIRROR Assembly., L BACK (COO)
$59.89¢29 946
1
#23
90001-MCK-A50
BOLT, SOCKET (6X20)
$2.59¢1 294
1
#24
90101-GBL-000
BOLT, FLANGE (8X35)
$4.34¢2 168
1
#25
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#26
90133-MJE-D00
SCREW, PAN (5X16)
$1.06¢529
1
#27
90134-MJE-D00
SCREW, PAN (5X16)
$1.33¢667
1
#28
90307-MJE-D00
NUT, HEX CAP (8MM)
$1.53¢765
1
#29
90504-964-000
WASHER, THRUST (5MM)
$2.24¢1 121
1
#30
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#31
94050-05000
NUT, FLANGE (5MM)
$1.54¢771
1
#32
94101-08700
WASHER, PLAIN (8MM)
$1.17¢586
1
