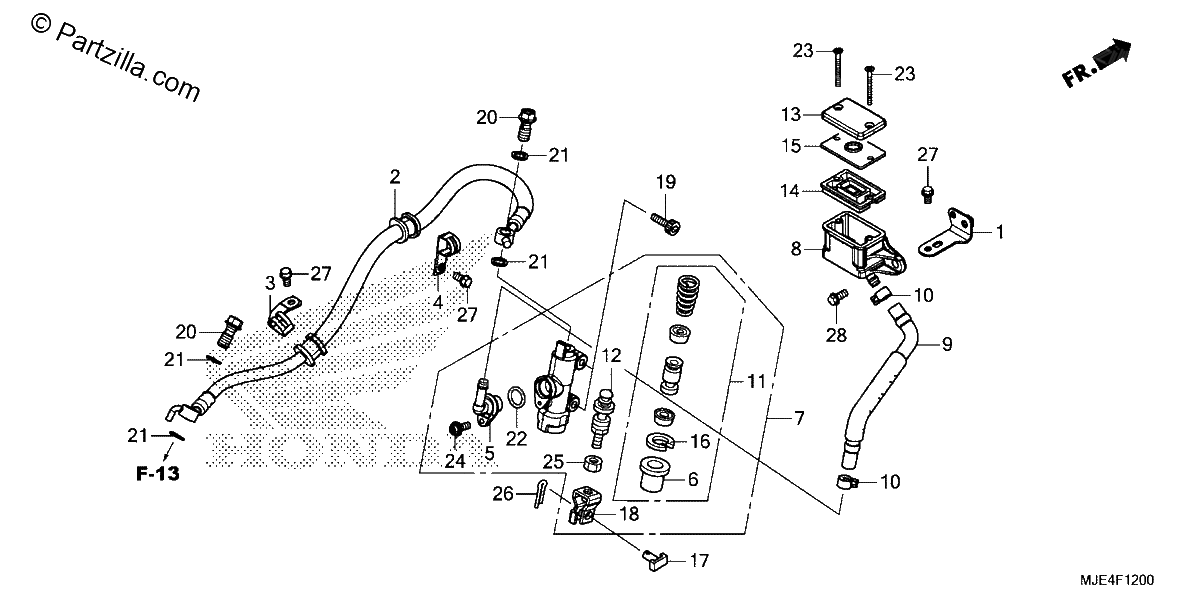

REAR BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
STAY C, RR. BRAKE
$7.76¢3 881
#002
HOSE, RR. BRAKE
$30.26¢15 131
#003
CLAMP A, RR. BRAKE HOSE
$6.00¢3 000
#004
CLAMP B, RR. BRAKE HOSE
$4.71¢2 356
#005
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
#006
BOOT
$11.74¢5 869
#007
MASTER CYLINDER SUB-ASSY., RR. (COO)
$220.51¢110 256
#008
CUP, OIL
$27.52¢13 763
#009
HOSE, RR. MASTER CYLINDER
$13.44¢6 719
#010
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#011
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#012
ROD, PUSH
$25.54¢12 769
#013
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#013
CAP, MASTER CYLINDER
$5.04¢2 519
#014
DIAPHRAGM
$12.31¢6 156
#015
PLATE, DIAPHRAGM
$12.60¢6 300
#016
CIRCLIP
$2.50¢1 250
#017
PIN, BRAKE ROD
$5.76¢2 881
#018
JOINT, BRAKE ROD
$17.25¢8 625
#019
BOLT, SOCKET (6X20)
$2.09¢1 044
#020
BOLT, OIL (10X22)
$8.89¢4 444
#021
WASHER, OIL BOLT
$4.85¢2 425
#022
O-RING (14.8X2.4)
$3.30¢1 650
#023
SCREW, FLAT (4X40)
$0.61¢306
#024
SCREW-WASHER (4X12)
$1.72¢862
#024
SCREW-WASHER (4X12)
$1.72¢862
#025
NUT, HEX. (8MM)
$1.60¢800
#026
PIN, SPLIT (2.0X12)
$1.27¢638
#027
BOLT, FLANGE (6X12)
$2.31¢1 156
#028
BOLT, FLANGE (6X14)
$1.54¢769
