HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

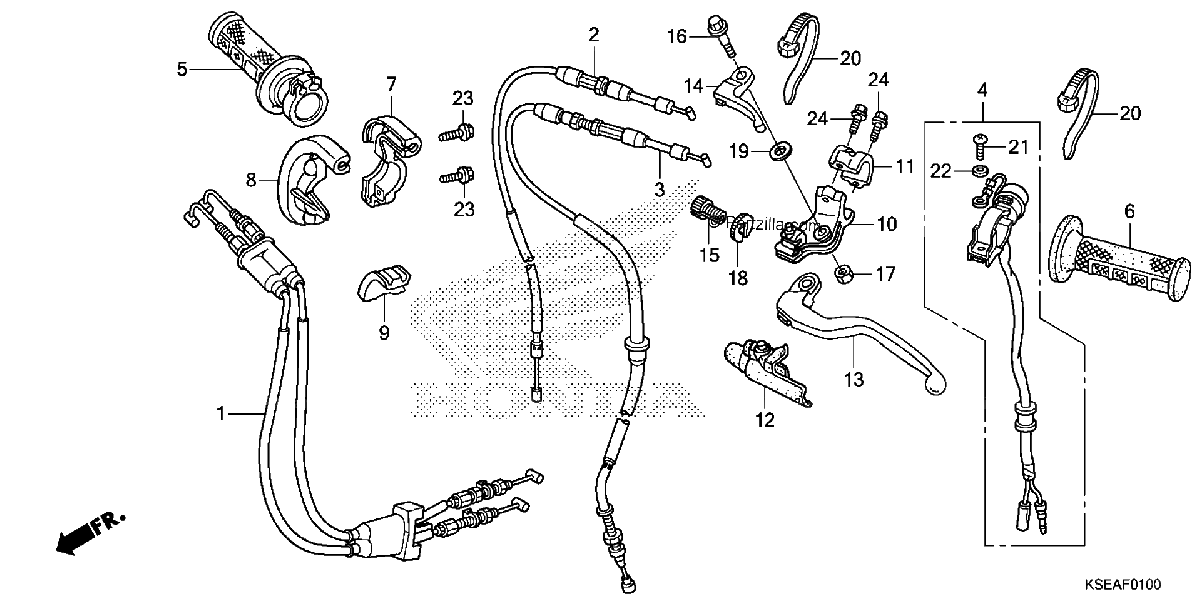

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17900-KSE-710
CABLE, THROTTLE
$38.47¢19 234
1
#2
17950-KSE-000
CABLE, HOT STARTER
$25.59¢12 794
1
#3
22870-KSE-000
CABLE, CLUTCH
$23.18¢11 592
1
#4
35130-KSE-671
SWITCH ASSY., ENGINE STOP
$41.61¢20 804
1
#5
53140-KSE-305
GRIP, THROTTLE (COO)
$21.69¢10 844
1
#6
53166-KPT-305
GRIP, L. HANDLE (COO)
$11.05¢5 526
1
#7
53167-MEB-672
HOUSING, THROTTLE (UPPER)
$23.00¢11 500
1
#8
53168-KRN-A90
HOUSING, THROTTLE (LOWER)
$31.50¢15 749
1
#9
53169-KSE-000
SLIDER, THROTTLE CABLE
$5.27¢2 633
1
#10
53172-MEB-670
BRACKET, L. HANDLE LEVER
$33.60¢16 801
1
#11
53174-KCE-670
HOLDER, L. LEVER BRACKET
$14.37¢7 187
1
#12
53177-MEB-670
COVER, L. HANDLE LEVER
$15.92¢7 958
1
#13
53178-KSE-305
LEVER, L. HANDLEBAR (COO)
$21.32¢10 660
1
#14
53190-MEB-670
LEVER, HOT STARTER
$21.61¢10 804
1
#15
53192-203-000
BOLT, CLUTCH WIRE ADJUSTING
$9.80¢4 899
1
#16
90112-MEB-670
BOLT, LEVER PIVOT (NSHF)
$3.42¢1 708
1
#17
90301-782-000
NUT, U (6MM)
$1.83¢914
1
#18
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#19
90501-KV6-670
WASHER, PLAIN (7MM)
$2.21¢1 104
1
#20
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#21
93500-04012-0A
SCREW, PAN (4X12)
$0.98¢489
1
#21
93500-04012-1A
SCREW, PAN (4X12)
$0.98¢489
1
#22
94111-04000
WASHER, SPRING (4MM)
$1.26¢633
1
#23
96001-06018-07
BOLT, FLANGE (6X18)
$1.49¢747
1
#24
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
