LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

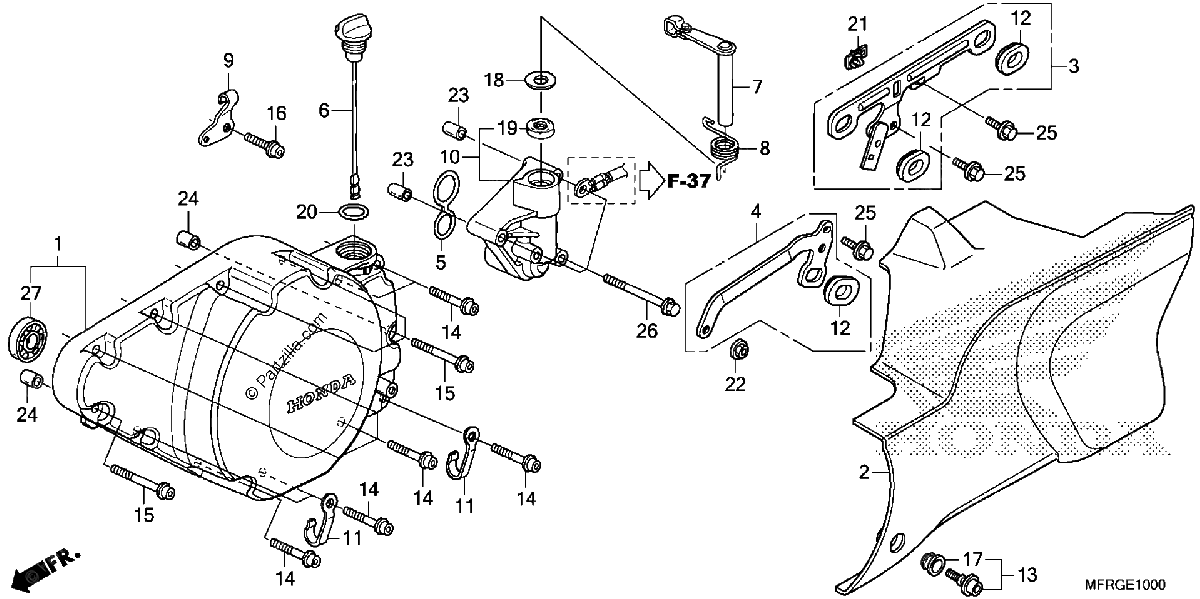

Diagrama de LEFT CRANKCASE COVER

Repuestos

#1
11360-MFR-670
COVER, L. CRANKCASE
$426.47¢213 233
1
#2
11370-MFR-670
COVER, L. RR.
$261.43¢130 715
1
#3
11380-MFR-670
STAY A, L. RR. COVER
$20.17¢10 085
1
#4
11390-MFR-670
STAY B, L. RR. COVER
$12.12¢6 060
1
#5
15152-HN2-000
SEAL, RUBBER
$5.40¢2 702
1
#6
15650-MEA-670
DIPSTICK, OIL
$17.03¢8 516
1
#7
22710-MEA-670
LEVER, CLUTCH
$67.04¢33 522
1
#8
22815-MEA-670
SPRING, CLUTCH LEVER
$4.78¢2 392
1
#9
22821-MEA-670
RECEIVER, CLUTCH CABLE
$14.36¢7 182
1
#10
22860-MEA-670
HOLDER, CLUTCH LIFTER
$92.56¢46 282
1
#11
35211-443-760
CLAMP, SWITCH WIRE
$4.90¢2 449
1
#12
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#13
90020-MBA-D20
BOLT ASSY., SPECIAL
$4.74¢2 369
1
#14
90032-MCH-000
BOLT, FLANGE SOCKET (6X32)
$2.68¢1 340
1
#15
90033-MCH-000
BOLT, FLANGE SOCKET (6X45)
$3.06¢1 529
1
#16
90034-MCH-000
BOLT, FLANGE SOCKET (6X18)
$2.33¢1 167
1
#17
90543-MBA-000
RUBBER, MOUNTING
$3.36¢1 679
1
#18
90559-MR8-000
WASHER, PLAIN (14MM)
$2.64¢1 322
1
#19
91202-444-013
OIL SEAL (14X24X6)
$4.22¢2 110
1
#19
91202-444-015
OIL SEAL (14X24X6) (NOK)
$4.22¢2 110
1
#19
91202-444-023
OIL SEAL (14X24X6) (ARAI)
$4.22¢2 110
1
#20
91301-250-000
O-RING (21.5MM)
$3.07¢1 535
1
#20
91307-425-003
O-RING (21.5X3.2)
$3.07¢1 535
1
#21
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#23
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#24
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#25
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#26
95701-06055-00
BOLT, FLANGE (6X55)
$2.45¢1 225
1
#27
96100-60000-00
BEARING, RADIAL BALL (6000)
$9.06¢4 531
1
