FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

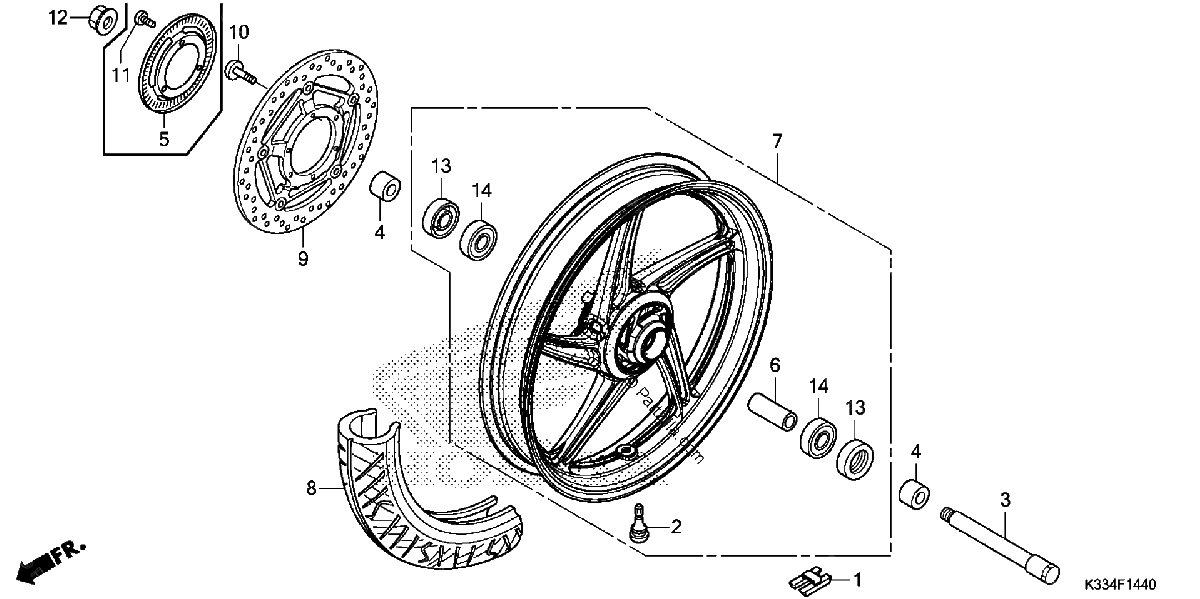

Diagrama de FRONT WHEEL

Repuestos

#1
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.91¢5 456
1
#001
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.91¢5 456
1
#1
42705-MER-D00
WEIGHT, BALANCE (20G)
$22.41¢11 206
1
#001
42705-MER-D00
WEIGHT, BALANCE (20G)
$22.41¢11 206
1
#001
42706-MER-D00
WEIGHT, BALANCE (30G)
$22.09¢11 044
1
#1
42706-MER-D00
WEIGHT, BALANCE (30G)
$22.09¢11 044
1
#2
42753-KWF-901
VALVE, RIM (TRITON)
$0.71¢356
1
#002
42753-KWF-901
VALVE, RIM (TRITON)
$0.71¢356
1
#002
42753-K38-901
VALVE, RIM
$0.71¢356
1
#002
42753-GM9-743
VALVE, RIM (IRC)
$10.15¢5 075
1
#2
42753-GM9-743
VALVE, RIM (IRC)
$10.15¢5 075
1
#3
44301-KYJ-900
AXLE, Front WHEEL
$33.01¢16 506
1
#003
44301-KYJ-900
AXLE, Front WHEEL
$33.01¢16 506
1
#004
44311-KYJ-900
COLLAR, FR. WHEEL
$11.54¢5 769
1
#4
44311-KYJ-900
COLLAR, FR. WHEEL
$11.54¢5 769
1
#5
44515-MEJ-D01
RING, Front PULSER
$102.34¢51 169
1
#005
44515-MEJ-D01
RING, Front PULSER
$102.34¢51 169
1
#6
44620-KYJ-900
COLLAR, Front AXLE DISTANCE
$8.30¢4 150
1
#006
44620-KYJ-900
COLLAR, Front AXLE DISTANCE
$8.30¢4 150
1
#007
44650-KYJ-911ZC
WHEEL SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC)
$326.23¢163 113
1
#7
44650-KYJ-911ZC
WHEEL SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC)
$326.23¢163 113
1
#8
44711-KYJ-902
TIRE, Front. (110/70-17M/C 54S) (IRC)
$93.45¢46 725
1
#008
44711-KYJ-902
TIRE, Front. (110/70-17M/C 54S) (IRC)
$93.45¢46 725
1
#008
44711-KYJ-903
TIRE, Front. (110/70-17M/C 54S) (IRC)
$93.45¢46 725
1
#008
44711-KYJ-904
TIRE, Front. (110/70-17M/C 54S) (IRC)
$93.45¢46 725
1
#009
45120-KYJ-901
DISK, FR. BRAKE
$188.44¢94 219
1
#9
45120-KYJ-901
DISK, FR. BRAKE
$188.44¢94 219
1
#010
90106-KGH-600
BOLT, BRAKE DISK (6X17)
$3.65¢1 825
1
#10
90106-KGH-600
BOLT, BRAKE DISK (6X17)
$3.65¢1 825
1
#011
90131-KPB-751
BOLT, TORX (5X10)
$3.43¢1 713
1
#11
90131-KPB-751
BOLT, TORX (5X10)
$3.43¢1 713
1
#12
90306-KWN-701
NUT, U (12MM)
$4.91¢2 456
1
#012
90306-KWN-701
NUT, U (12MM)
$4.91¢2 456
1
#13
91252-MC7-003
DUST SEAL (22X42X7) (ARAI)
$9.04¢4 519
1
#013
91252-MC7-003
DUST SEAL (22X42X7) (ARAI)
$9.04¢4 519
1
#014
96150-63020-10
BEARING, RADIAL BALL (6302UU)
$17.96¢8 981
1
#14
96150-63020-10
BEARING, RADIAL BALL (6302UU)
$17.96¢8 981
1
