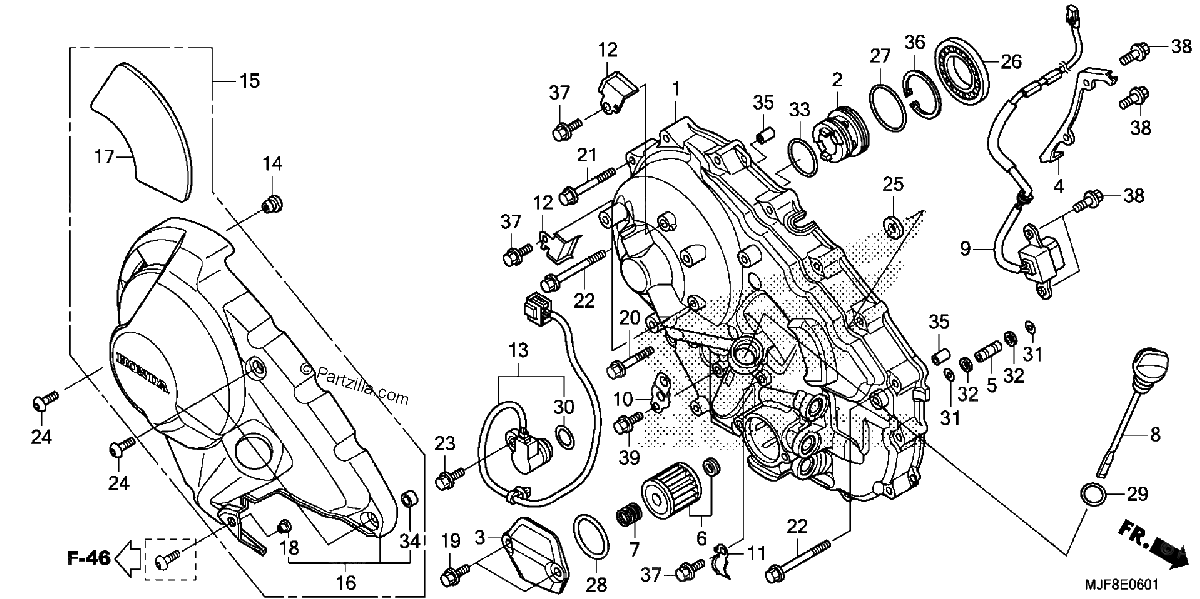

RIGHT CRANKCASE COVER CTX700ND
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, Right CRANKCASE
$386.55¢193 275
#2
COLLAR, OIL GUIDE
$31.31¢15 657
#3
COVER, OIL FILTER
$67.32¢33 661
#4
CLAMP, SOLENOID CORD
$11.74¢5 871
#5
PIPE, OIL PASSAGE
$11.58¢5 790
#6
ELEMENT, OIL FILTER
$9.11¢4 554
#7
SPRING, OIL FILTER
$3.10¢1 553
#8
DIPSTICK, OIL
$34.94¢17 469
#9
GENERATOR Assembly., PULSE
$141.98¢70 989
#10
STAY, HARNESS CLIP (B)
$3.21¢1 604
#11
STAY, HARNESS
$3.21¢1 604
#12
STAY, HARNESS
$3.21¢1 604
#13
SENSOR Assembly., ANGLE
$284.52¢142 261
#14
PLUG, HANDLE COVER (LOWER)
$2.20¢1 098
#15
COVER Assembly., Right ENGINE SIDE NH303M (MAT AXIS GRAY METALLIC)
$84.25¢42 125
#16
COVER, Right ENGINE SIDE NH303M (MAT AXIS GRAY METALLIC)
$95.54¢47 771
#17
MAT, ENGINE SIDE COVER
$7.41¢3 703
#18
COLLAR, FENDER SETTING
$3.06¢1 529
#19
BOLT, FLANGE (6X16) (NSHF)
$2.13¢1 064
#20
BOLT, FLANGE (6X28) (NSHF)
$2.42¢1 208
#21
BOLT, FLANGE (6X40) (NSHF)
$2.28¢1 138
#22
BOLT, FLANGE (6X50) (NSHF)
$2.13¢1 064
#23
BOLT, KNOCK (6MM)
$3.42¢1 708
#24
BOLT, SPECIAL (6X17)
$2.53¢1 265
#25
WASHER, SEALING (6MM)
$2.69¢1 346
#26
BEARING, RADIAL BALL (40X68X7.5)
$25.06¢12 529
#27
O-RING (35X2.2)
$2.74¢1 368
#28
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
#29
O-RING (18X3)
$3.36¢1 679
#30
O-RING (16.5X2.5)
$5.69¢2 846
#31
O-RING (7.7X1.9)
$3.09¢1 547
#32
RING, BACK-UP (8X11)
$3.96¢1 978
#33
O-RING (29X2.4) (NOK)
$3.93¢1 967
#34
COLLAR
$3.22¢1 610
#35
PIN, DOWEL (8X20)
$2.66¢1 328
#36
CIRCLIP (INNER) (40)
$2.39¢1 196
#37
BOLT, FLANGE (6X14)
$1.13¢564
#38
BOLT, FLANGE (6X16)
$1.92¢960
#39
BOLT, FLANGE (6X14)
$2.13¢1 064
