PARKING BRAKE LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

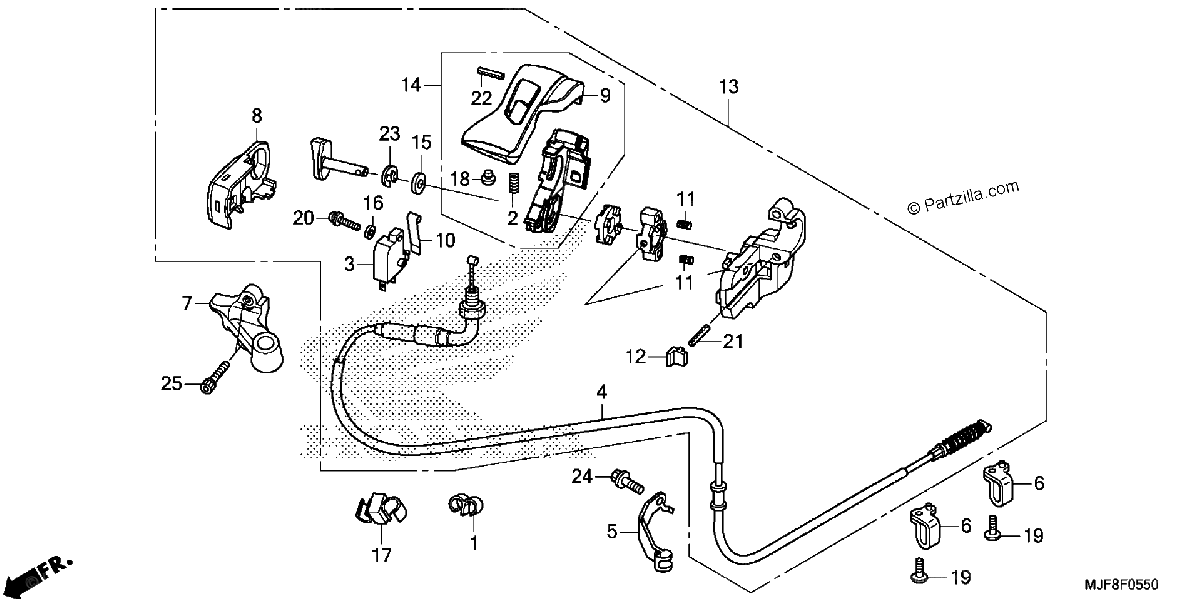

Diagrama de PARKING BRAKE LEVER

Repuestos

#1
17205-PC6-000
CLAMP, TUBE (7.5X2)
$10.74¢5 371
1
#001
17205-PC6-000
CLAMP, TUBE (7.5X2)
$10.74¢5 371
1
#2
24271-743-000
SPRING, BALL SETTING
$2.69¢1 346
1
#002
24271-743-000
SPRING, BALL SETTING
$2.69¢1 346
1
#003
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#3
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#004
43450-MJF-A21
CABLE, PARKING BRAKE
$66.57¢33 287
1
#4
43450-MJF-A21
CABLE, PARKING BRAKE
$66.57¢33 287
1
#5
43455-MGS-D50
CLAMP, PARKING BRAKE
$10.97¢5 485
1
#005
43455-MGS-D50
CLAMP, PARKING BRAKE
$10.97¢5 485
1
#006
43456-MGS-D70
GUIDE, PARKING BRAKE
$8.11¢4 054
1
#6
43456-MGS-D70
GUIDE, PARKING BRAKE
$8.11¢4 054
1
#7
47111-MGS-D50
HOLDER (UPPER)
$64.58¢32 292
1
#007
47111-MGS-D50
HOLDER (UPPER)
$64.58¢32 292
1
#8
47117-MGS-D50
COVER, HOLDER
$4.52¢2 260
1
#008
47117-MGS-D50
COVER, HOLDER
$4.52¢2 260
1
#009
47152-MGS-D51
LEVER, PARKING TOP
$13.14¢6 572
1
#9
47152-MGS-D51
LEVER, PARKING TOP
$13.14¢6 572
1
#010
47154-MGE-D00
SPRING, SWITCH
$10.06¢5 031
1
#10
47154-MGE-D00
SPRING, SWITCH
$10.06¢5 031
1
#11
47155-MGE-D00
SPRING, PLUNGER
$4.04¢2 018
1
#011
47155-MGE-D00
SPRING, PLUNGER
$4.04¢2 018
1
#12
47156-MGE-D00
CAP, HOLDER (LOWER)
$2.74¢1 368
1
#012
47156-MGE-D00
CAP, HOLDER (LOWER)
$2.74¢1 368
1
#013
47200-MJF-A21
LEVER ASSY., PARKING
$436.83¢218 414
1
#13
47200-MJF-A21
LEVER ASSY., PARKING
$436.83¢218 414
1
#14
47210-MGS-D51
LEVER, PARKING
$52.98¢26 490
1
#014
47210-MGS-D51
LEVER, PARKING
$52.98¢26 490
1
#015
90401-430-000
WASHER (10.2MM)
$2.04¢1 018
1
#15
90401-430-000
WASHER (10.2MM)
$2.04¢1 018
1
#016
90515-046-810
WASHER, PLAIN (4X8)
$1.47¢736
1
#16
90515-046-810
WASHER, PLAIN (4X8)
$1.47¢736
1
#016
90515-GN5-910
WASHER, PLAIN (4X8)
$1.47¢736
1
#16
90515-GN5-910
WASHER, PLAIN (4X8)
$1.47¢736
1
#17
90601-MEJ-000
CLIP, JOINT
$4.34¢2 168
1
#017
90601-MEJ-000
CLIP, JOINT
$4.34¢2 168
1
#18
90801-SB0-000
PLUG, CHANGE REINFORCEMENT
$4.28¢2 139
1
#018
90801-SB0-000
PLUG, CHANGE REINFORCEMENT
$4.28¢2 139
1
#019
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#19
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#20
93892-04014-07
SCREW-WASHER (4X14)
$1.17¢586
1
#020
93892-04014-07
SCREW-WASHER (4X14)
$1.17¢586
1
#21
94305-30223
PIN, SPRING (3X22)
$1.41¢707
1
#021
94305-30223
PIN, SPRING (3X22)
$1.41¢707
1
#022
94305-30283
PIN, SPRING (3X28)
$1.79¢897
1
#22
94305-30283
PIN, SPRING (3X28)
$1.79¢897
1
#23
94540-09018
E-RING (9MM)
$4.57¢2 283
1
#023
94540-09018
E-RING (9MM)
$4.57¢2 283
1
#24
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#024
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#25
96600-06020-07
BOLT, SOCKET (6X20)
$1.23¢615
1
#025
96600-06020-07
BOLT, SOCKET (6X20)
$1.23¢615
1
