TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

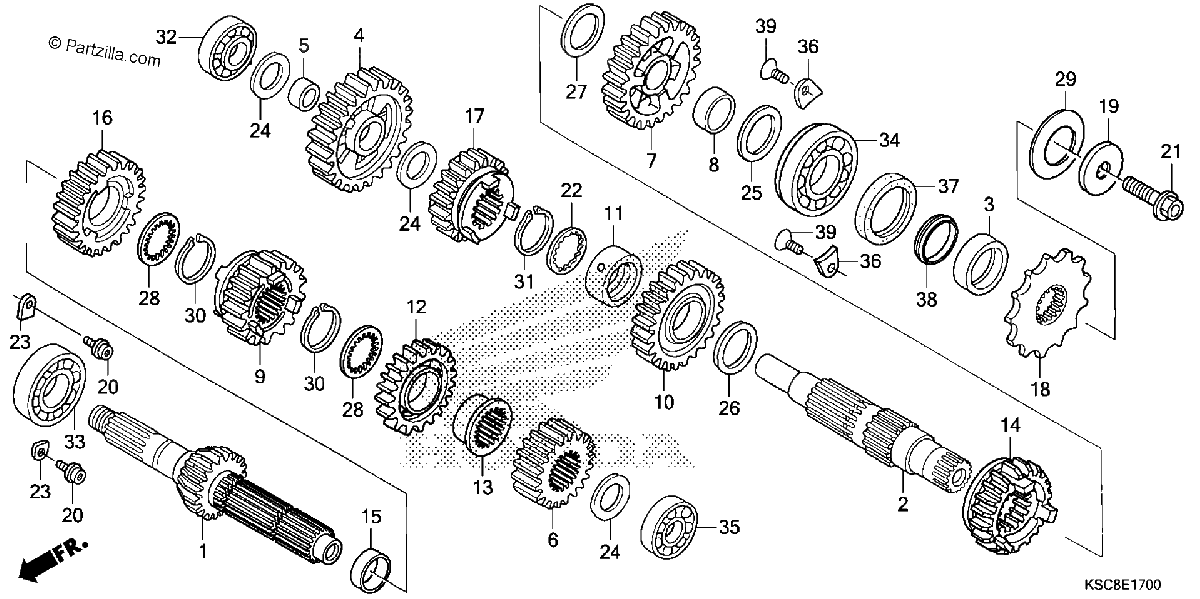

Diagrama de TRANSMISSION

Repuestos

#001
23210-KSC-A10
MAINSHAFT (13T)
$197.39¢98 693
1
#1
23210-KSC-A10
MAINSHAFT (13T)
$197.39¢98 693
1
#002
23221-KSC-A10
COUNTERSHAFT
$195.56¢97 779
1
#2
23221-KSC-A10
COUNTERSHAFT
$195.56¢97 779
1
#3
23225-KSC-670
COLLAR, COUNTERSHAFT
$12.76¢6 382
1
#003
23225-KSC-670
COLLAR, COUNTERSHAFT
$12.76¢6 382
1
#004
23411-KSC-670
GEAR, COUNTERSHAFT LOW (31T)
$122.66¢61 329
1
#4
23411-KSC-670
GEAR, COUNTERSHAFT LOW (31T)
$122.66¢61 329
1
#005
23413-KSC-670
COLLAR (17MM)
$5.58¢2 789
1
#5
23413-KSC-670
COLLAR (17MM)
$5.58¢2 789
1
#6
23421-KSC-670
GEAR, MAINSHAFT SECOND (16T)
$62.74¢31 372
1
#006
23421-KSC-670
GEAR, MAINSHAFT SECOND (16T)
$62.74¢31 372
1
#007
23431-KSC-670
GEAR, COUNTERSHAFT SECOND (28T)
$116.39¢58 196
1
#7
23431-KSC-670
GEAR, COUNTERSHAFT SECOND (28T)
$116.39¢58 196
1
#008
23432-KSC-670
COLLAR (24MM)
$5.51¢2 754
1
#8
23432-KSC-670
COLLAR (24MM)
$5.51¢2 754
1
#9
23441-KSC-670
GEAR, MAINSHAFT THIRD (21T)
$127.36¢63 681
1
#009
23441-KSC-670
GEAR, MAINSHAFT THIRD (21T)
$127.36¢63 681
1
#10
23451-KSC-670
GEAR, COUNTERSHAFT THIRD (28T)
$116.39¢58 196
1
#010
23451-KSC-670
GEAR, COUNTERSHAFT THIRD (28T)
$116.39¢58 196
1
#011
23452-KSC-670
COLLAR, COUNTERSHAFT THIRD GEAR
$11.59¢5 796
1
#11
23452-KSC-670
COLLAR, COUNTERSHAFT THIRD GEAR
$11.59¢5 796
1
#12
23461-KSC-670
GEAR, MAINSHAFT FOURTH (24T)
$113.06¢56 528
1
#012
23461-KSC-670
GEAR, MAINSHAFT FOURTH (24T)
$113.06¢56 528
1
#13
23462-KSC-670
COLLAR, MAINSHAFT FOURTH GEAR
$17.25¢8 625
1
#013
23462-KSC-670
COLLAR, MAINSHAFT FOURTH GEAR
$17.25¢8 625
1
#14
23471-KSC-670
GEAR, COUNTERSHAFT FOURTH (25T)
$127.36¢63 681
1
#014
23471-KSC-670
GEAR, COUNTERSHAFT FOURTH (25T)
$127.36¢63 681
1
#015
23472-KZ4-000
COLLAR (20MM)
$18.89¢9 447
1
#15
23472-KZ4-000
COLLAR (20MM)
$18.89¢9 447
1
#16
23481-KSC-670
GEAR, MAINSHAFT FIFTH (27T)
$116.39¢58 196
1
#016
23481-KSC-670
GEAR, MAINSHAFT FIFTH (27T)
$116.39¢58 196
1
#017
23491-KSC-670
GEAR, COUNTERSHAFT FIFTH (22T)
$127.36¢63 681
1
#17
23491-KSC-670
GEAR, COUNTERSHAFT FIFTH (22T)
$127.36¢63 681
1
#018
23801-KSC-670
SPROCKET, DRIVE (14T)
$50.54¢25 271
1
#18
23801-KSC-670
SPROCKET, DRIVE (14T)
$50.54¢25 271
1
#019
23802-KSC-670
COLLAR, DRIVE SPROCKET
$15.69¢7 843
1
#19
23802-KSC-670
COLLAR, DRIVE SPROCKET
$15.69¢7 843
1
#020
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#20
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#21
90112-413-000
BOLT, UBS (8X33)
$4.30¢2 151
1
#021
90112-413-000
BOLT, UBS (8X33)
$4.30¢2 151
1
#022
90404-KW3-000
WASHER, THRUST INVOLUTE (22X21X1)
$4.58¢2 289
1
#22
90404-KW3-000
WASHER, THRUST INVOLUTE (22X21X1)
$4.58¢2 289
1
#023
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#23
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#024
90446-357-000
WASHER, THRUST (17.2MM)
$4.01¢2 007
1
#24
90446-357-000
WASHER, THRUST (17.2MM)
$4.01¢2 007
1
#25
90452-KSR-A00
WASHER (24X32X1)
$3.56¢1 783
1
#025
90452-KSR-A00
WASHER (24X32X1)
$3.56¢1 783
1
#26
90452-KZ4-000
WASHER, THRUST (22X30X1)
$5.63¢2 818
1
#026
90452-KZ4-000
WASHER, THRUST (22X30X1)
$5.63¢2 818
1
#27
90453-KSR-A00
WASHER (22X32X1.5)
$3.01¢1 507
1
#027
90453-KSR-A00
WASHER (22X32X1.5)
$3.01¢1 507
1
#028
90455-HM8-A40
WASHER, SPLINE (20MM)
$2.89¢1 443
1
#28
90455-HM8-A40
WASHER, SPLINE (20MM)
$2.89¢1 443
1
#029
90501-KSC-670
WASHER, SPRING (24MM)
$4.75¢2 375
1
#29
90501-KSC-670
WASHER, SPRING (24MM)
$4.75¢2 375
1
#30
90601-360-000
SET-RING (20MM)
$9.90¢4 951
1
#030
90601-360-000
SET-RING (20MM)
$9.90¢4 951
1
#031
90602-360-000
SET-RING (22MM)
$11.44¢5 721
1
#31
90602-360-000
SET-RING (22MM)
$11.44¢5 721
1
#32
91001-KZ4-J11
BEARING, RADIAL BALL (17X35X10)
$17.27¢8 637
1
#032
91001-KZ4-J11
BEARING, RADIAL BALL (17X35X10)
$17.27¢8 637
1
#033
91004-KSC-671
BEARING, RADIAL BALL (22X47X14)
$14.78¢7 389
1
#33
91004-KSC-671
BEARING, RADIAL BALL (22X47X14)
$14.78¢7 389
1
#34
91005-KRN-A01
BEARING, RADIAL BALL (22X52X14)
$24.40¢12 201
1
#034
91005-KRN-A01
BEARING, RADIAL BALL (22X52X14)
$24.40¢12 201
1
#35
91006-KRN-A01
BEARING, RADIAL BALL (17X38X10)
$25.86¢12 932
1
#035
91006-KRN-A01
BEARING, RADIAL BALL (17X38X10)
$25.86¢12 932
1
#36
91012-KA3-710
PLATE, COUNTERSHAFT BEARING
$5.44¢2 720
1
#036
91012-KA3-710
PLATE, COUNTERSHAFT BEARING
$5.44¢2 720
1
#037
91201-KSR-A01
OIL SEAL (28X37X7)
$8.98¢4 491
1
#37
91201-KSR-A01
OIL SEAL (28X37X7)
$8.98¢4 491
1
#038
91301-KSR-A01
D-RING (22MM)
$3.36¢1 679
1
#38
91301-KSR-A01
D-RING (22MM)
$3.36¢1 679
1
#039
93600-06010-0H
SCREW, FLAT (6X10)
$1.17¢586
1
#39
93600-06010-0H
SCREW, FLAT (6X10)
$1.17¢586
1
