HEADLIGHT VT750C CS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

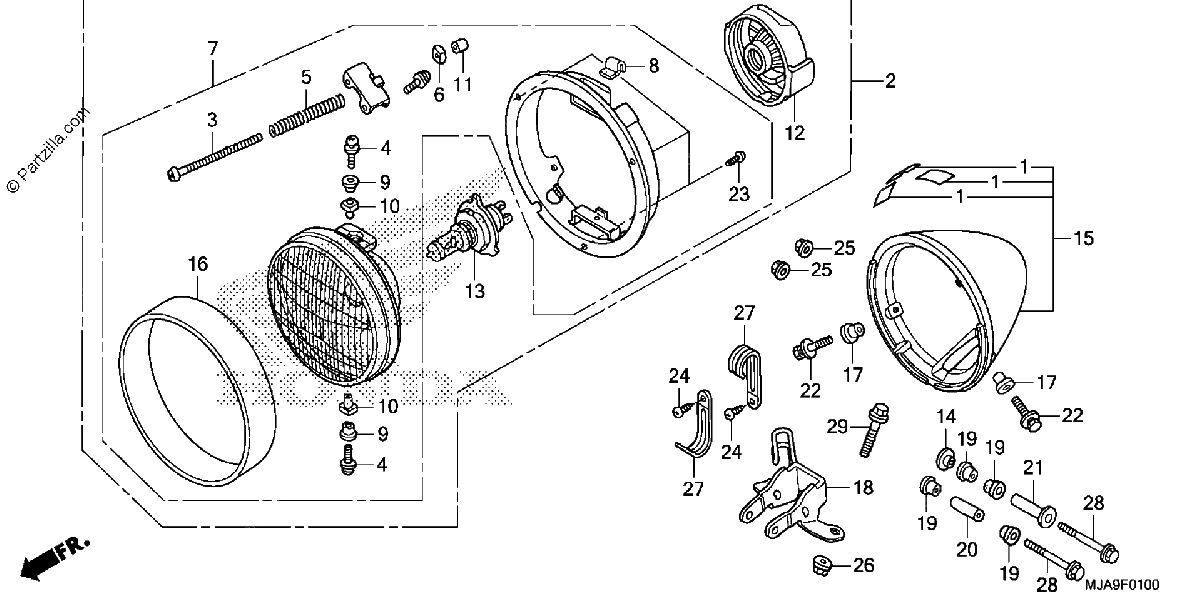

Diagrama de HEADLIGHT VT750C CS

Repuestos

#1
17518-MY9-690
PROTECTOR
$3.89¢1 944
1
#2
33100-MEG-305
HEADLIGHT Assembly. (12V 60/55W) (COO) (STANLEY)
$249.97¢124 988
1
#3
33103-MM2-003
SCREW, BEAM ADJUSTING
$3.52¢1 763
1
#4
33104-MAH-671
SCREW-WASHER
$4.86¢2 431
1
#5
33108-MM2-003
SPRING, BEAM ADJUSTING
$4.20¢2 100
1
#6
33118-438-841
NUT, BEAM ADJUSTING
$2.88¢1 438
1
#7
33120-MEG-305
HEADLIGHT UNIT (COO)
$193.50¢96 750
1
#8
33126-MEA-650
TAPE, PROTECTOR
$4.00¢2 000
1
#9
33127-MAA-A31
SPACER
$2.79¢1 394
1
#10
33128-MAA-A31
NUT, UNIT HOLDER
$2.89¢1 444
1
#11
33136-426-830
COVER, SCREW
$2.41¢1 206
1
#12
33180-MR7-003
COVER, RUBBER
$16.53¢8 263
1
#13
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$43.17¢21 588
1
#14
52157-GC5-000
COLLAR, CHAIN GUARD
$5.42¢2 713
1
#15
61300-MEG-A40
CASE SET, HEADLIGHT
$144.81¢72 406
1
#16
61302-MEG-000
RIM, HEADLIGHT
$69.83¢34 913
1
#17
61304-292-000
COLLAR, HEADLIGHT SETTING
$4.20¢2 100
1
#18
61311-MEG-H10
STAY, HEADLIGHT
$59.77¢29 888
1
#19
61315-MR1-000
RUBBER, HEADLIGHT MOUNTING
$3.65¢1 825
1
#20
61316-MK7-000
COLLAR, HEADLIGHT STAY
$3.65¢1 825
1
#21
90501-MCF-000
COLLAR A
$6.29¢3 144
1
#22
93402-05020-00
BOLT-WASHER (5X20)
$1.34¢669
1
#23
93901-24310
SCREW, TAPPING (4X12)
$1.16¢581
1
#24
93901-34310
SCREW, TAPPING (4X12)
$1.16¢581
1
#25
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#26
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#27
94591-49000
CLIP (4X90)
$3.65¢1 825
1
#28
95701-06055-07
BOLT, FLANGE (6X55)
$2.31¢1 156
1
#29
95801-08045-07
BOLT, FLANGE (8X45)
$2.92¢1 463
1
