HANDLEBAR VT750C CS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

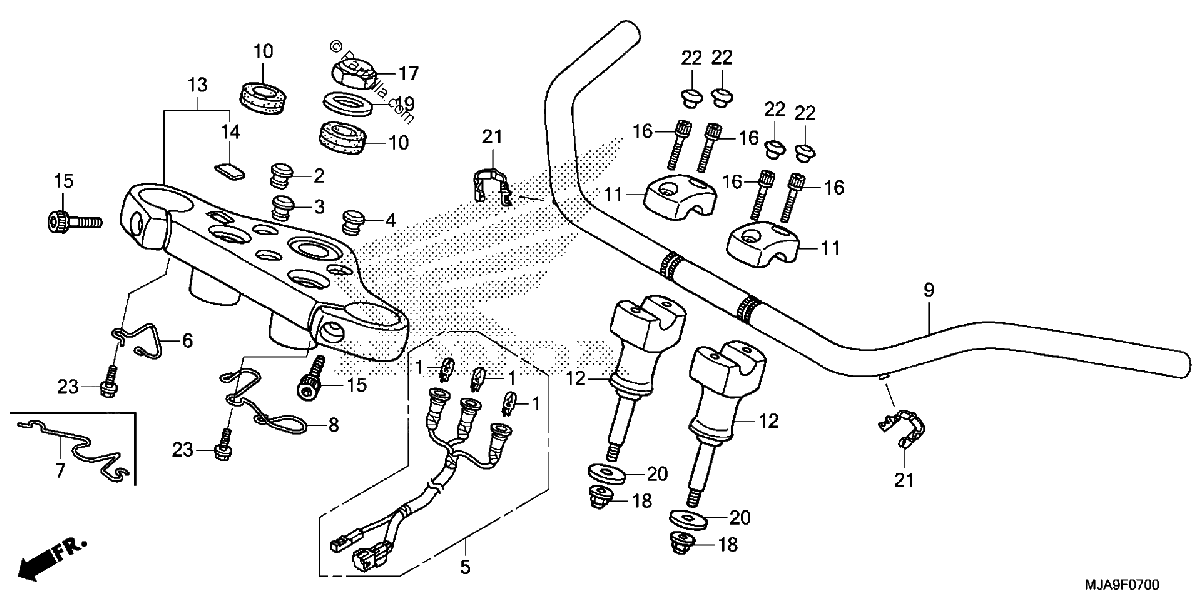

Diagrama de HANDLEBAR VT750C CS

Repuestos

#1
34908-KW3-003
BULB, WEDGE BASE (12V 3.4W) (STANLEY)
$4.71¢2 356
1
#2
37551-MZ0-018
LENS, HIGH BEAM PILOT (BLUE)
$10.60¢5 300
1
#3
37561-MZ0-611
LENS, TURN SIGNAL PILOT (GREEN)
$9.68¢4 838
1
#4
37581-MBS-008
LENS, FUEL PILOT (ORANGE)
$10.80¢5 400
1
#5
37605-MEG-A41
SOCKET ASSY., PILOT
$98.79¢49 394
1
#7
45135-MEG-H10
GUIDE, R. CABLE
$38.61¢19 306
1
#8
45136-MEG-A40
GUIDE, L. CABLE
$21.92¢10 962
1
#9
53100-MEG-305
HANDLEBAR (COO)
$148.14¢74 069
1
#10
53125-KW9-700
CAP, HANDLE (LOWER)
$6.44¢3 219
1
#11
53131-MM8-000
HOLDER, HANDLE (UPPER)
$22.32¢11 163
1
#12
53231-MZ8-A20
HOLDER, HANDLE (LOWER)
$62.82¢31 412
1
#13
53300-MBA-J11
BRIDGE ASSY., FORK TOP
$313.20¢156 600
1
#14
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#14
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#15
90112-MCL-000
BOLT, SOCKET (8X30)
$3.65¢1 825
1
#16
90154-ME9-000
BOLT, SOCKET (8X32)
$6.67¢3 338
1
#17
90304-415-000
NUT, STEERING STEM
$23.01¢11 506
1
#18
90309-ML4-901
NUT, FLANGE (8MM)
$3.77¢1 888
1
#18
90309-MR1-770
NUT, FLANGE (8MM)
$3.77¢1 888
1
#19
90503-283-000
WASHER, STEERING STEM
$5.30¢2 650
1
#20
90535-MR1-770
WASHER, HANDLE HOLDER (LOWER)
$4.63¢2 313
1
#21
90690-GHB-701
CLIP, CABLE (17MM)
$3.65¢1 825
1
#22
91455-MB0-010
CAP, SOCKET BOLT (8MM)
$4.38¢2 188
1
#23
95701-08016-00
BOLT, FLANGE (8X16)
$2.31¢1 156
1
