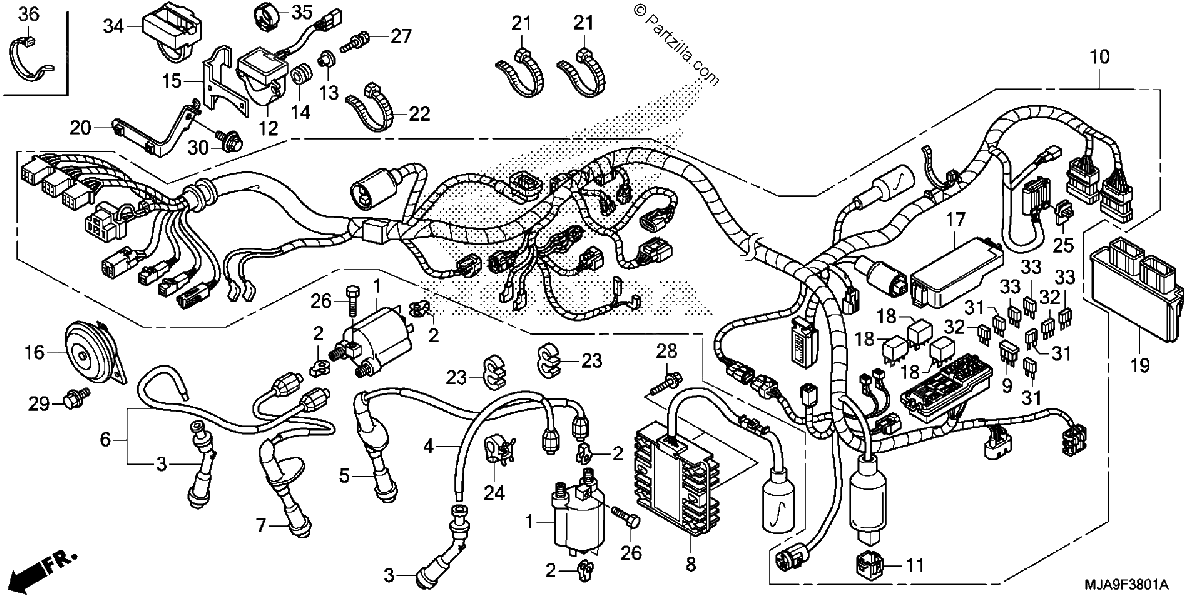

WIRE HARNESS VT750CS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COIL, IGNITION
$104.43¢52 213
#2
SPACER, IGNITION COIL
$4.58¢2 288
#3
CAP Assembly., NOISE SUPPRESSOR
$37.25¢18 625
#4
WIRE, L. RR. IGNITION
$48.91¢24 456
#5
WIRE, R. RR. IGNITION
$89.51¢44 756
#6
WIRE Assembly., Right Front IGNITION
$29.14¢14 569
#7
WIRE ASSY., L. FR. IGNITION
$30.94¢15 469
#8
RECTIFIER ASSY., REGULATE
$240.19¢120 094
#9
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
#10
WIRE HARNESS
$1541.51¢770 756
#11
CAP, DUMMY (4P) (RED)
$5.83¢2 913
#12
SENSOR, BANK ANGLE
$184.91¢92 456
#12
SENSOR, BANK ANGLE
$135.41¢67 706
#13
COLLAR
$8.80¢4 400
#14
GROMMET
$3.81¢1 906
#15
PLATE, BANK ANGLE SENSOR
$43.72¢21 862
#16
HORN (HIGH)
$74.26¢37 131
#17
COVER (UPPER)
$13.04¢6 519
#18
RELAY ASSY., POWER (MICRO ISO 4P)
$5.64¢2 819
#19
PGM-FI UNIT
$911.66¢455 831
#20
BRACKET, BANK ANGLE SENSOR
$17.11¢8 556
#21
BAND, WIRE HARNESS
$31.72¢15 862
#22
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
#23
CLIP, HIGH TENSION CORD
$3.05¢1 525
#24
CLIP, CABLE (15MM)
$2.81¢1 406
#25
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#26
BOLT, HEX. (6X20)
$1.79¢894
#27
BOLT-WASHER (4X25)
$0.86¢431
#28
BOLT, FLANGE (6X20)
$2.27¢1 138
#29
BOLT, FLANGE (8X12)
$2.31¢1 156
#30
BOLT, FLANGE (6X10)
$2.09¢1 044
#31
FUSE, MINI (10A)
$1.70¢850
#32
FUSE, MINI (20A)
$1.49¢744
#33
FUSE, MINI (30A)
$2.15¢1 075
#34
CUSHION, BANK ANGLE
$11.83¢5 913
#35
CLIP, WIRE HARNESS
$4.33¢2 163
#36
TY-RAP, CABLE
$3.05¢1 525
