STEP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

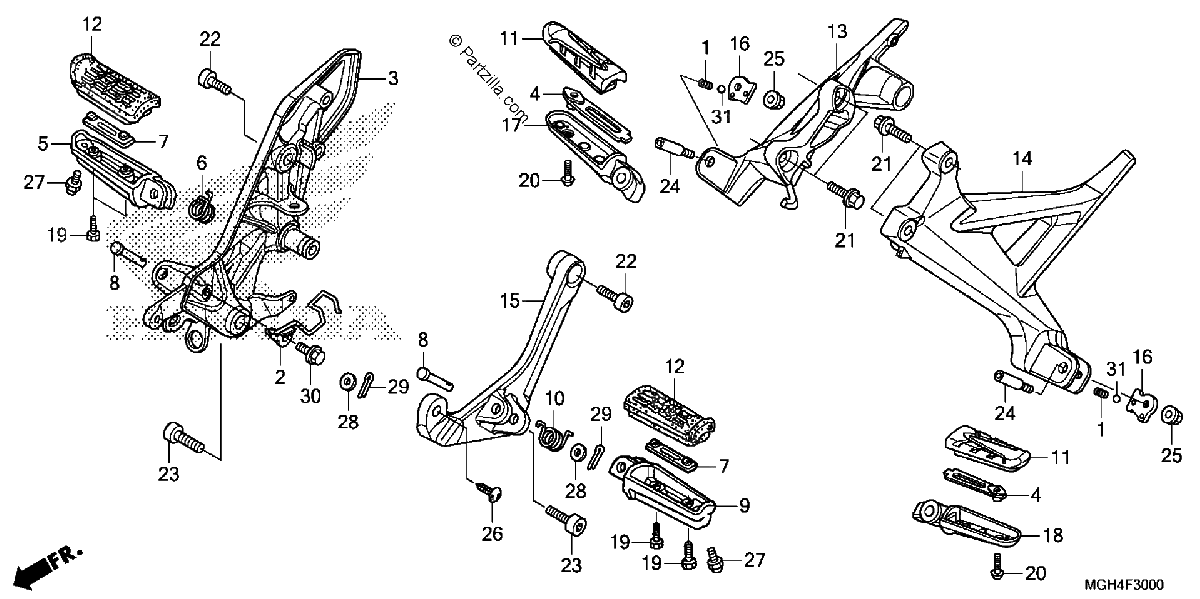

Diagrama de STEP

Repuestos

#1
28333-300-000
SPRING, KICK STARTER STOPPER
$3.36¢1 679
1
#2
32109-MGH-640
GUIDE, HARNESS
$7.50¢3 749
1
#3
50600-MGH-640
HOLDER, R. MAIN STEP
$271.81¢135 907
1
#4
50609-MGE-000
PLATE, STEP SETTING
$6.16¢3 082
1
#5
50612-KYJ-305
ARM, R. STEP (COO)
$27.88¢13 938
1
#5
50612-MM5-000
ARM, R. STEP
$27.88¢13 938
1
#6
50617-445-840
SPRING, R. STEP RETURN
$6.08¢3 042
1
#7
50619-MM5-000
PLATE, STEP SETTING
$8.83¢4 416
1
#8
50639-MFL-D20
PIN, STEP BAR
$3.36¢1 679
1
#9
50642-KYJ-305
ARM, L. STEP (COO)
$27.88¢13 938
1
#9
50642-MM5-000
ARM, L. STEP
$27.88¢13 938
1
#10
50644-445-840
SPRING, L. STEP RETURN
$6.08¢3 042
1
#11
50661-MGE-000
RUBBER, MAIN STEP
$10.74¢5 371
1
#11
50661-MGE-305
RUBBER, MAIN STEP (COO)
$10.74¢5 371
1
#12
50661-MV9-000
RUBBER, STEP
$15.43¢7 716
1
#13
50671-MGH-N00
HOLDER, R. PILLION STEP
$196.52¢98 262
1
#14
50681-MGH-N00
HOLDER, L. PILLION STEP
$196.52¢98 262
1
#15
50700-MGH-640
HOLDER, L. MAIN STEP
$200.70¢100 349
1
#16
50718-MGE-000
PLATE, PILLION STEP CLICK
$2.59¢1 294
1
#17
50720-MGH-N01
ARM, R. PILLION STEP
$81.06¢40 532
1
#18
50730-MGH-N01
ARM, L. PILLION STEP
$81.06¢40 532
1
#19
90115-MV9-000
BOLT, MAIN STEP RUBBER SETTING
$4.09¢2 047
1
#20
90118-MGE-000
BOLT, SPECIAL (5X14)
$4.13¢2 064
1
#21
90136-MGH-640
BOLT, FLANGE (8X30)
$3.24¢1 621
1
#22
90157-MGE-000
BOLT, SOCKET (8X22)
$4.96¢2 478
1
#23
90158-MGE-000
BOLT, SOCKET (10X22)
$5.58¢2 789
1
#24
90167-MGE-010
BOLT, SPECIAL (6X16)
$10.64¢5 319
1
#25
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
1
#27
92501-08010-0B
BOLT, CAP (8X10)
$2.60¢1 299
1
#28
94102-08200
WASHER, PLAIN (8MM)
$1.02¢512
1
#29
94201-20152
PIN, SPLIT (2.0)
$0.61¢305
1
#30
96001-06010-00
BOLT, FLANGE (6X10)
$1.92¢960
1
#31
96211-08000
BALL, STEEL (#8) (1/4)
$1.47¢736
1
