REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

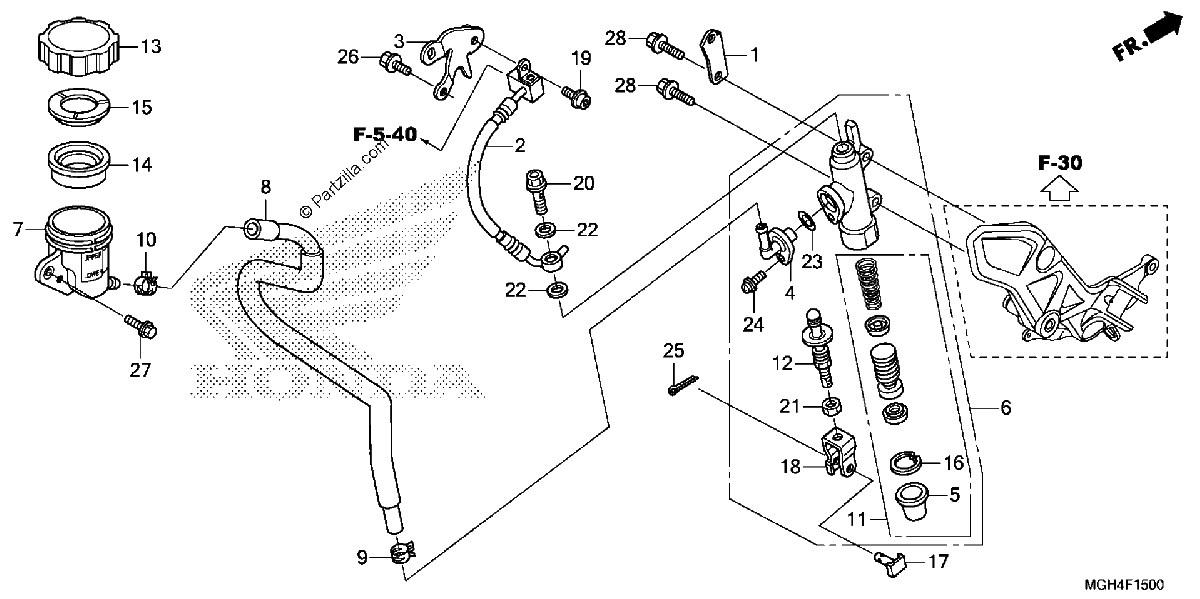

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#1
32157-MGH-640
STAY, HARNESS CLIP
$5.22¢2 613
1
#2
43310-MGH-641
HOSE A, RR. BRAKE
$60.00¢30 000
1
#3
43325-MGE-000
STAY, RR. BRAKE HOSE
$13.30¢6 650
1
#4
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
1
#5
43504-MB2-006
BOOT
$11.74¢5 869
1
#6
43510-MGH-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$281.85¢140 925
1
#6
43510-MGH-641
MASTER CYLINDER SUB-ASSY., RR.
$281.85¢140 925
1
#7
43511-MGE-016
CUP, MASTER CYLINDER OIL
$29.00¢14 500
1
#8
43512-MGH-641
HOSE, RR. BRAKE MASTER CYLINDER
$44.61¢22 306
1
#9
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#10
43514-MN9-006
CLAMP, MASTER CYLINDER OIL HOSE
$19.68¢9 838
1
#11
43520-MG9-315
PISTON SET, MASTER CYLINDER (NISSIN)
$77.40¢38 700
1
#12
43530-MGH-641
ROD, PUSH
$36.25¢18 125
1
#13
45513-MEL-D21
CAP, OIL CUP
$21.39¢10 694
1
#14
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#15
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#16
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#17
46503-MAL-000
PIN, BRAKE ROD
$7.72¢3 863
1
#18
46504-MAL-601
JOINT, BRAKE ROD
$17.25¢8 625
1
#19
90009-MF5-000
BOLT, FLANGE SOCKET (6X12)
$4.74¢2 369
1
#20
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#21
90301-MEH-006
NUT, HEX. (8MM)
$1.96¢981
1
#22
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#23
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#24
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#24
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#25
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#26
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#27
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#28
96001-06022-07
BOLT, FLANGE (6X22)
$2.38¢1 188
1
