SUB HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

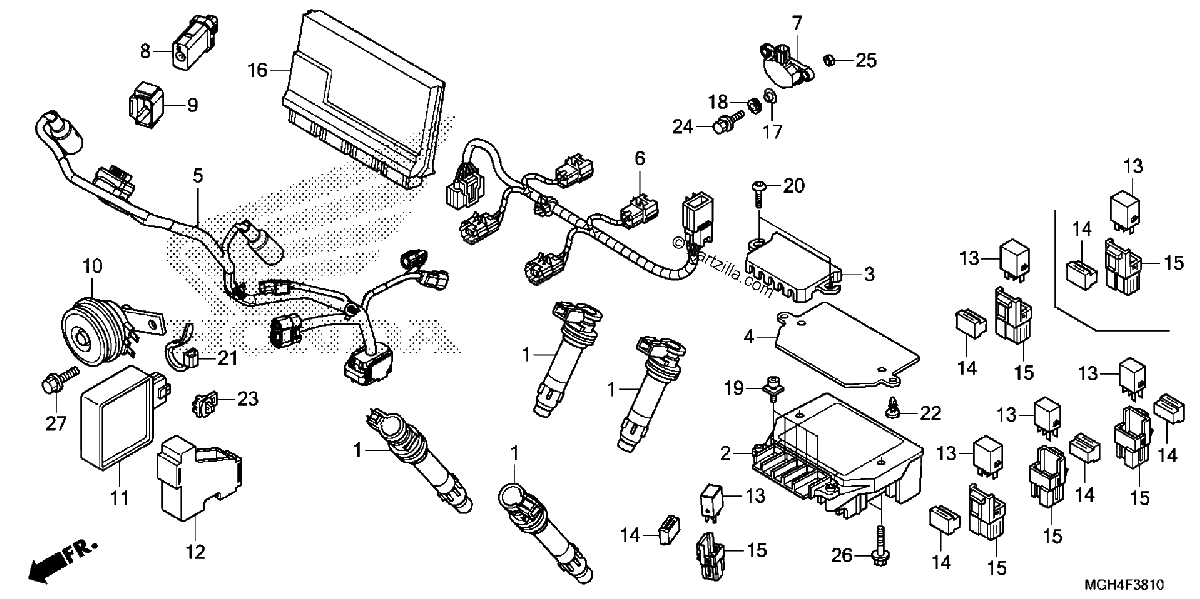

Diagrama de SUB HARNESS

Repuestos

#1
30700-MGE-641
CAP COIL, IGNITION
$105.04¢52 519
1
#2
31600-MGE-641
RECTIFIER ASSY., REGULATOR
$528.26¢264 131
1
#3
31601-MGE-642
COVER, REGULATOR RECTIFIER
$12.24¢6 119
1
#4
31604-MGE-000
PLATE, REGULATOR RECTIFIER
$15.76¢7 881
1
#5
32103-MGH-A50
SUB-WIRE HARNESS, FR.
$189.53¢94 763
1
#6
32112-MGE-640
SUB-HARNESS, INJECTOR
$111.63¢55 813
1
#7
35160-MGS-D31
SENSOR ASSY., BANK ANGLE
$193.17¢96 587
1
#10
38120-MCE-951
HORN (LOW)
$35.84¢17 919
1
#11
38301-MGH-N01
RELAY, TURN SIGNAL (LED)
No Disponible
1
#12
38306-MGH-640
CUSHION, TURN SIGNAL RELAY
$7.95¢3 975
1
#13
38501-MCS-G01
RELAY, POWER (MICRO ISO 4P)
$12.59¢6 294
1
#14
38506-751-701
SUSPENSION, STARTER RELAY (TATEISHI)
$5.76¢2 881
1
#15
38506-MBW-G91
HOLDER, RELAY
$4.59¢2 294
1
#16
38770-MGH-A51
PGM-FI UNIT
$2076.60¢1 038 300
1
#17
50609-MCW-D00
COLLAR, HEAT GUARD SETTING
$3.20¢1 600
1
#18
64535-MFJ-D00
RUBBER, SIDE COVER
$2.50¢1 250
1
#19
90101-MGE-640
BOLT, SOCKET (5X8)
$3.04¢1 519
1
#20
90113-MCJ-000
SCREW, PAN (5X15)
$2.88¢1 438
1
#21
90651-MA6-720
BAND, WIRE HARNESS
$4.51¢2 256
1
#22
91504-SD5-901
CLIP, WASHER MOUTH
$5.34¢2 669
1
#23
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
1
#24
93401-06020-07
BOLT-WASHER (6X20)
$1.17¢587
1
#25
94001-06070-0S
NUT, HEX. (6MM)
$1.68¢838
1
#26
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#27
95701-08012-07
BOLT, FLANGE (8X12)
$2.31¢1 156
1
