THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

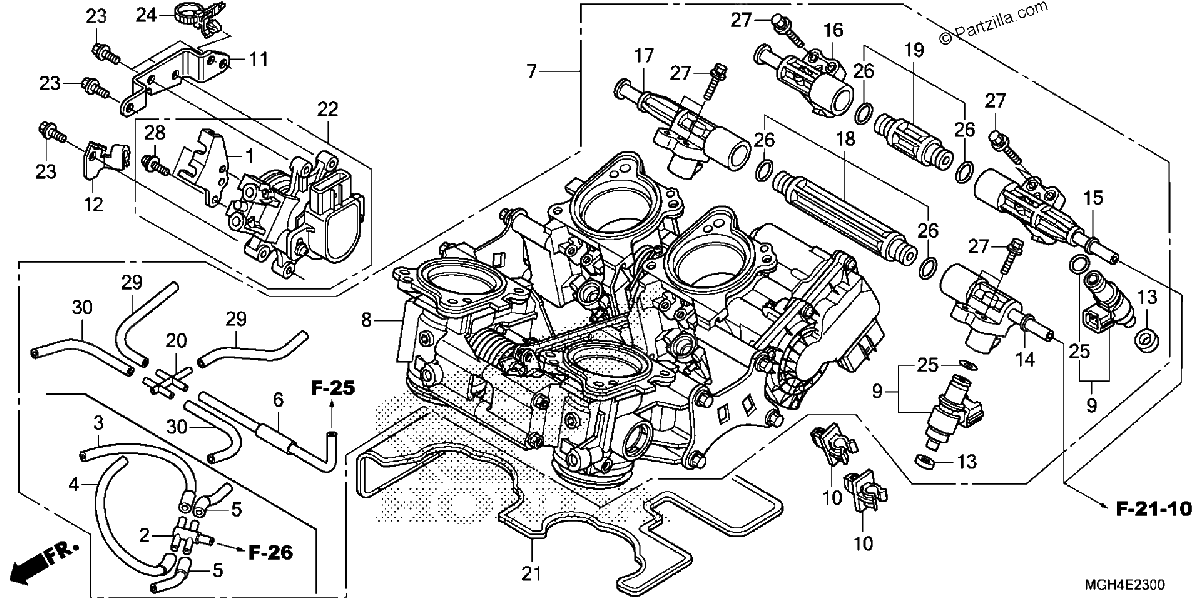

Diagrama de THROTTLE BODY

Repuestos

#1
16169-MFL-003
STAY, WIRE
$17.84¢8 918
1
#2
16180-ME5-761
T-JOINT
$37.48¢18 739
1
#3
16197-MCZ-771
TUBE
$6.64¢3 318
1
#4
16197-MFJ-L01
TUBE
$7.70¢3 852
1
#5
16197-MGE-771
TUBE (3.5X50)
$7.79¢3 893
1
#6
16198-MGE-003
TUBE (3.5X190)
$6.84¢3 421
1
#7
16400-MGE-773
BODY ASSY., THROTTLE (GNH0B A)
$2960.34¢1 480 171
1
#8
16402-MGE-771
BODY ASSY., THROTTLE
$2539.05¢1 269 525
1
#9
16450-MFL-003
INJECTOR ASSY., FUEL
$159.40¢79 701
1
#10
16453-MGE-003
CLIP, HOSE (D15.8)
$2.77¢1 386
1
#11
16454-MGE-000
STAY, APS UNIT
$9.97¢4 985
1
#12
16455-MGE-000
STAY, WATER HOSE CLAMP
$6.01¢3 007
1
#13
16472-MCW-000
SEAL RING, INJECTOR
$2.83¢1 414
1
#14
16610-MGE-003
PIPE, FUEL (#1)
$36.29¢18 147
1
#15
16620-MGE-003
PIPE, FUEL (#2)
$37.93¢18 963
1
#16
16630-MGE-003
PIPE, FUEL (#3)
$36.33¢18 164
1
#17
16640-MGE-003
PIPE, FUEL (#4)
$36.33¢18 164
1
#18
16650-MGE-003
JOINT SET, FR. FUEL
$57.38¢28 692
1
#19
16660-MGE-003
JOINT SET, RR. FUEL
$47.86¢23 931
1
#20
17201-MCJ-003
JOINT, FIVE-WAY
$9.27¢4 635
1
#22
37971-MGE-672
SENSOR UNIT, ACCELERATOR POSITION
$261.11¢130 554
1
#23
90012-GHB-610
BOLT, FLANGE (6X12)
$2.43¢1 213
1
#24
90672-SB2-003
STRAP, CABLE (105MM) (BLACK)
$6.49¢3 243
1
#25
91301-P7A-004
O-RING (7.8X1.9)
$3.75¢1 874
1
#26
91301-PLC-000
O-RING (7.47X3.6)
$3.46¢1 731
1
#27
93403-05025-00
BOLT-WASHER (5X25)
$1.45¢724
1
#28
93892-05012-00
SCREW-WASHER (5X12)
$0.98¢489
1
#28
93892-05012-10
SCREW-WASHER (5X12)
$0.98¢489
1
#29
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
#30
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
