REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

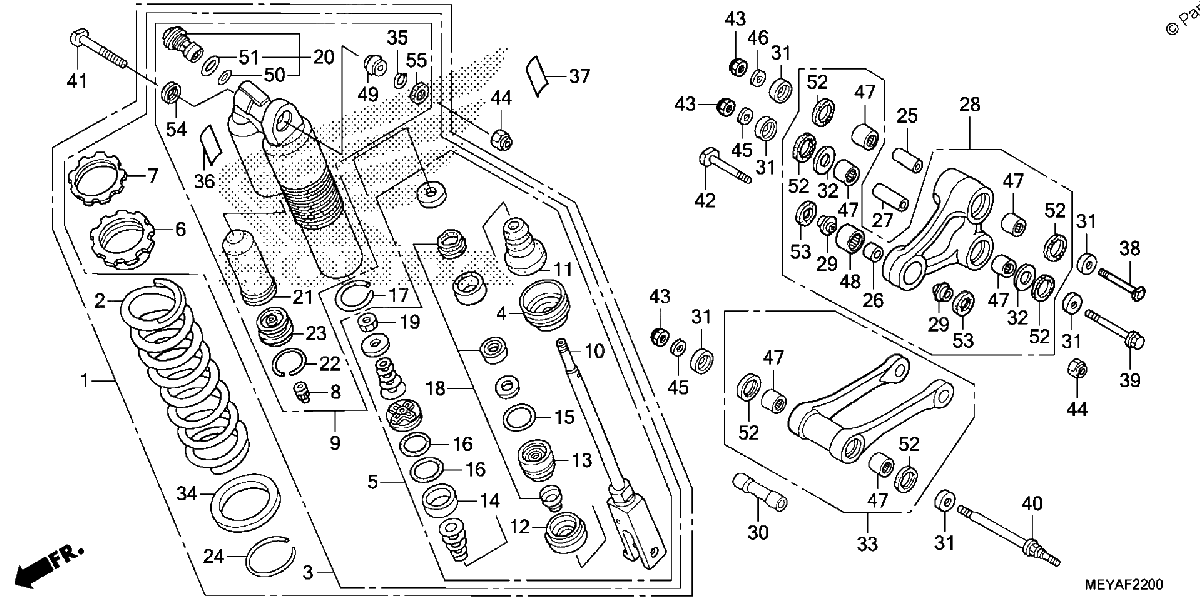

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
52400-MEY-305
CUSHION ASSY., RR. (COO) (SHOWA)
$1842.50¢921 250
1
#2
52401-MEN-A21
SPRING, RR. SHOCK ABSORBER (53.9N/MM,5.5KGF/MM) (SHOWA)
$220.51¢110 256
1
#2
52402-MEN-A21
SPRING, RR. SHOCK ABSORBER (55.9N/MM,5.7KGF/MM) (SHOWA)
$211.02¢105 512
1
#2
52403-MEN-A21
SPRING, RR. SHOCK ABSORBER (52.0N/MM,5.3KGF/MM) (SHOWA)
$211.02¢105 512
1
#3
52410-MEY-305
DAMPER, RR. (COO)
$1436.89¢718 444
1
#4
52419-KZ3-J21
STOPPER, SPRING SEAT
$28.91¢14 456
1
#5
52421-MEY-A21
ROD, PISTON
$559.80¢279 900
1
#6
52422-KZ3-J31
ADJUSTER, SPRING
$44.16¢22 081
1
#7
52423-KZ3-J21
NUT, ADJUSTER
$20.25¢10 125
1
#8
52425-381-771
CAP, AIR VALVE
$6.13¢3 063
1
#9
52425-MEY-671
CASE, DAMPER
$831.15¢415 575
1
#10
52426-MEN-711
ROD
$378.15¢189 075
1
#11
52427-KZ3-891
RUBBER, STOPPER
$22.07¢11 038
1
#12
52428-KRN-711
PLATE, END
$18.50¢9 250
1
#13
52429-KZ3-J41
CASE, ROD GUIDE
$25.70¢12 850
1
#14
52431-KZ3-J31
RING, PISTON
$20.26¢10 131
1
#15
52434-KZ3-J21
O-RING (3.5X43.7)
$4.80¢2 400
1
#16
52434-KZ3-J31
O-RING (42.5X2.0)
$4.19¢2 094
1
#17
52435-KZ3-J21
RING, STOPPER
$3.05¢1 525
1
#18
52436-MEN-671
OIL SEAL SET
$31.45¢15 725
1
#19
52438-KA4-741
NUT, HEX. (12MM)
$3.65¢1 825
1
#20
52440-MEN-671
ADJUSTER, COMPRESSION DAMPING FORCE
$175.64¢87 819
1
#21
52451-KZ3-891
BLADDER
$23.88¢11 938
1
#22
52452-KS7-831
RING, STOPPER
$3.73¢1 863
1
#23
52453-KRN-711
CAP, CHAMBER
$35.60¢17 800
1
#24
52455-KZ3-J21
RING, STOPPER
$7.48¢3 738
1
#25
52463-KZ4-J40
COLLAR C, CUSHION ARM
$6.90¢3 450
1
#26
52464-KRN-710
COLLAR D, CUSHION ARM
$11.99¢5 994
1
#27
52464-KZ4-J20
COLLAR B, CUSHION
$9.86¢4 931
1
#28
52465-MEY-000
ARM SUB-ASSY., CUSHION
$418.15¢209 075
1
#29
52466-KRN-710
COLLAR D, CUSHION ARM SIDE
$4.71¢2 356
1
#30
52473-KZ4-J20
COLLAR A, CONNECTING ROD
$20.80¢10 400
1
#31
52475-KZ4-J20
COLLAR, LINK SIDE
$8.22¢4 113
1
#32
52476-KZ4-J20
WASHER, THRUST
$6.29¢3 144
1
#33
52479-MEY-A20
ROD SUB-ASSY., CUSHION CONNECTING
$295.54¢147 769
1
#34
52486-KZ3-J21
SEAT, SPRING
$31.35¢15 675
1
#35
52487-KA4-831
RING, STOPPER
$4.76¢2 381
1
#36
87516-KZ1-600
LABEL, RR. DAMPER WARNING
$8.66¢4 331
1
#38
90130-MEN-840
BOLT, LINK (12X82)
$13.26¢6 631
1
#39
91351-KRN-711
DUST SEAL (17.5X26X3)
$3.65¢1 825
1
#39
90131-MEN-840
BOLT, LINK (12X92)
$12.75¢6 375
1
#40
90131-MEY-000
BOLT, LINK (12X120)
$15.60¢7 800
1
#41
90152-MEB-750
BOLT, CUSHION (UPPER) (10X53)
$3.65¢1 825
1
#42
90153-KZ4-710
BOLT, CUSHION (LOWER) (10X43.5)
$10.53¢5 263
1
#43
90306-KBP-901
NUT, U (12MM)
$10.65¢5 325
1
#44
90306-KZ4-711
NUT, U (10MM)
$4.54¢2 269
1
#45
90501-KRN-710
WASHER, PLAIN (12MM)
$4.79¢2 394
1
#46
90501-KZ4-J40
WASHER, PLAIN (12MM)
$2.88¢1 438
1
#47
91051-KSC-003
BEARING, NEEDLE (20X26X15)
$10.28¢5 138
1
#48
91074-KRN-711
BEARING, NEEDLE (19X26X13)
$9.95¢4 975
1
#49
91074-MAC-741
BEARING, SPHERICAL (10)
$40.66¢20 331
1
#50
91256-KZ3-731
O-RING (21.5X1.5)
$3.65¢1 825
1
#51
91257-KZ3-891
O-RING (26.2X1.9)
$3.71¢1 856
1
#52
91262-KZ3-731
DUST SEAL (25X32X4)
$9.10¢4 550
1
#54
91351-KZ3-731
DUST SEAL, RR. CUSHION PIVOT
$5.91¢2 956
1
#55
91351-MAC-671
DUST SEAL (16X26X3)
$6.72¢3 363
1
