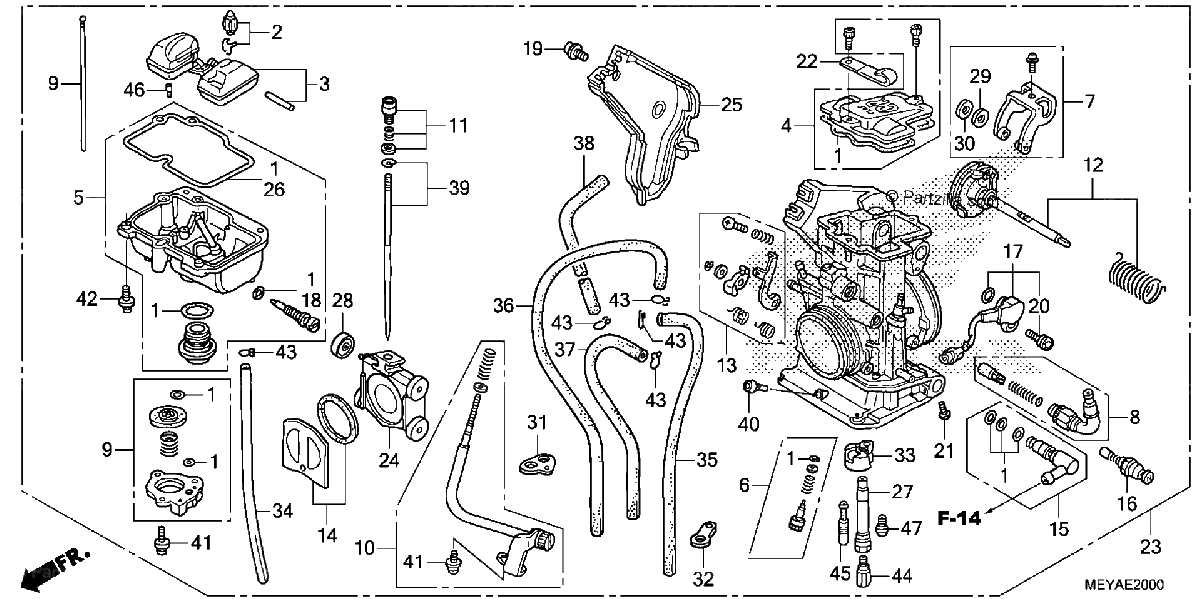

CARBURETOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GASKET SET
$30.50¢15 250
#2
VALVE SET, FLOAT
$49.68¢24 838
#3
FLOAT SET
$35.41¢17 706
#4
TOP SET
$63.59¢31 794
#5
CHAMBER SET, FLOAT
$108.79¢54 394
#6
SCREW SET A
$39.71¢19 856
#7
ARM SET, LINK
$21.92¢10 962
#8
START SET, HOT
$34.01¢17 006
#9
DIAPHRAGM SET, PUMP
$46.49¢23 244
#10
SCREW SET B
$56.21¢28 106
#11
SCREW SET, JET NEEDLE
$14.86¢7 431
#12
SHAFT SET, THROTTLE
$94.24¢47 119
#13
LEVER SET, PUMP
$20.23¢10 113
#14
VALVE SET, FLOATING
$137.24¢68 619
#15
JOINT SET, FUEL
$48.60¢24 300
#16
VALVE SET, STARTER
$34.05¢17 025
#17
SENSOR ASSY., THROTTLE
$214.81¢107 406
#18
O-RING (1.3X4.3)
$3.20¢1 600
#19
BOLT, COVER
$4.94¢2 469
#20
BOLT, BREAK HEAD
$7.24¢3 619
#21
SCREW, PAN
$1.95¢975
#22
CLIP
$9.68¢4 838
#23
CARBURETOR ASSY. (FCR13C A)
$1638.50¢819 250
#24
VALVE, THROTTLE
$395.99¢197 994
#25
COVER, THROTTLE
$29.50¢14 750
#26
GASKET, FLOAT CHAMBER
$15.26¢7 631
#27
HOLDER, NEEDLE JET
$15.35¢7 675
#28
ROLLER
$9.94¢4 969
#29
WASHER, PLAIN (PO)
$2.03¢1 013
#30
WASHER, PLAIN (SUS)
$1.80¢900
#31
BINDER
$6.38¢3 188
#32
BINDER
$9.46¢4 731
#33
PLATE, BUFFER
$13.08¢6 538
#34
TUBE, OVERFLOW
$10.76¢5 381
#35
TUBE, AIR VENT
$7.69¢3 844
#36
TUBE, AIR VENT
$15.86¢7 931
#37
TUBE, AIR VENT
$7.69¢3 844
#38
TUBE, AIR VENT
$13.24¢6 619
#39
NEEDLE SET, JET
$43.71¢21 856
#40
PIN, ADJUST SCREW
$3.65¢1 825
#41
SCREW-WASHER (4X8)
$1.47¢737
#41
SCREW-WASHER (4X8)
$1.47¢737
#42
SCREW-WASHER (4X14)
$1.35¢675
#42
SCREW-WASHER (4X14)
$1.35¢675
#43
CLIP, TUBE (B7)
$1.54¢769
#44
JET, MAIN (#145)
$11.68¢5 838
#45
JET, SLOW (#45)
$16.39¢8 194
#45
JET, SLOW (#45)
$16.39¢8 194
#45
JET, SLOW (#45)
$16.39¢8 194
#46
JET, LEAK (#60)
$10.74¢5 369
#47
JET, BY-STARTER (#70)
$16.56¢8 281
