GEARSHIFT DRUM CTX700N NA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

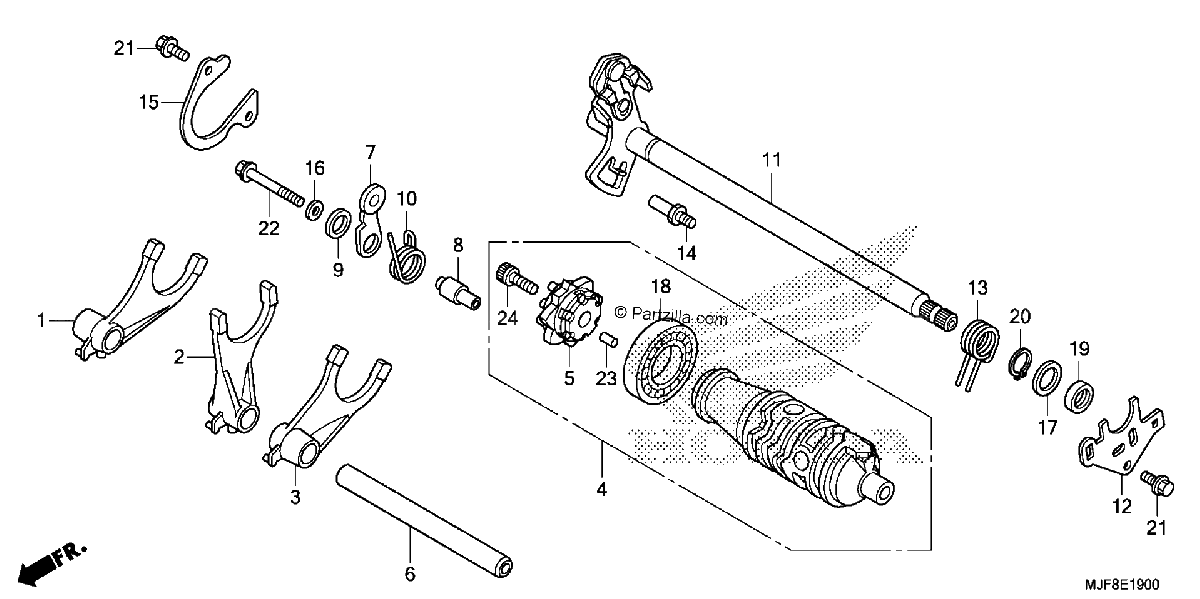

Diagrama de GEARSHIFT DRUM CTX700N NA

Repuestos

#1
24211-MGS-D30
FORK, R. GEARSHIFT
$124.86¢62 431
1
#2
24212-MGS-D30
FORK, CENTER GEARSHIFT
$124.86¢62 431
1
#3
24213-MGS-D30
FORK, L. GEARSHIFT
$124.84¢62 419
1
#4
24310-MGS-D30
DRUM ASSY., GEARSHIFT
$307.25¢153 625
1
#5
24315-MAS-E00
CENTER, SHIFT DRUM
$46.92¢23 463
1
#6
24321-MAS-000
SHAFT, GEARSHIFT FORK
$28.77¢14 388
1
#7
24430-MGS-D30
STOPPER, GEARSHIFT DRUM
$30.14¢15 069
1
#8
24434-MGS-D30
COLLAR, SHIFT DRUM STOPPER PLATE
$10.19¢5 094
1
#9
24435-MGE-000
COLLAR, DRUM STOPPER SIDE
$3.34¢1 669
1
#10
24435-MGS-D30
SPRING, SHIFT DRUM STOPPER
$7.01¢3 506
1
#11
24610-MGS-D30
SPINDLE, GEARSHIFT
$226.05¢113 025
1
#12
24612-MGS-D30
PLATE, SPINDLE
$3.75¢1 875
1
#13
24651-MGS-D30
SPRING, GEARSHIFT RETURN
$6.51¢3 256
1
#14
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.95¢4 975
1
#15
24655-MGS-D30
PLATE, SHIFT DRUM BEARING SETTING
$5.47¢2 738
1
#16
90417-360-000
WASHER, DRUM STOPPER
$2.24¢1 119
1
#17
90453-235-000
WASHER, THRUST (16MM)
$2.48¢1 238
1
#18
91007-MGS-D21
BEARING, RADIAL BALL (25X47X8)
$22.27¢11 138
1
#18
91007-MGS-D31
BEARING, RADIAL BALL (25X47X8)
$22.27¢11 138
1
#19
91201-MGS-D31
OIL SEAL (16X24X5)
$13.10¢6 550
1
#20
94510-16000
CIRCLIP (OUTER) (16MM)
$1.00¢500
1
#21
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#22
95701-06045-08
BOLT, FLANGE (6X45)
$2.79¢1 394
1
#23
96220-40080
ROLLER (4X8)
$0.65¢325
1
#24
96600-08020-10
BOLT, SOCKET (8X20)
$2.75¢1 375
1
