GEAR SHIFTING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

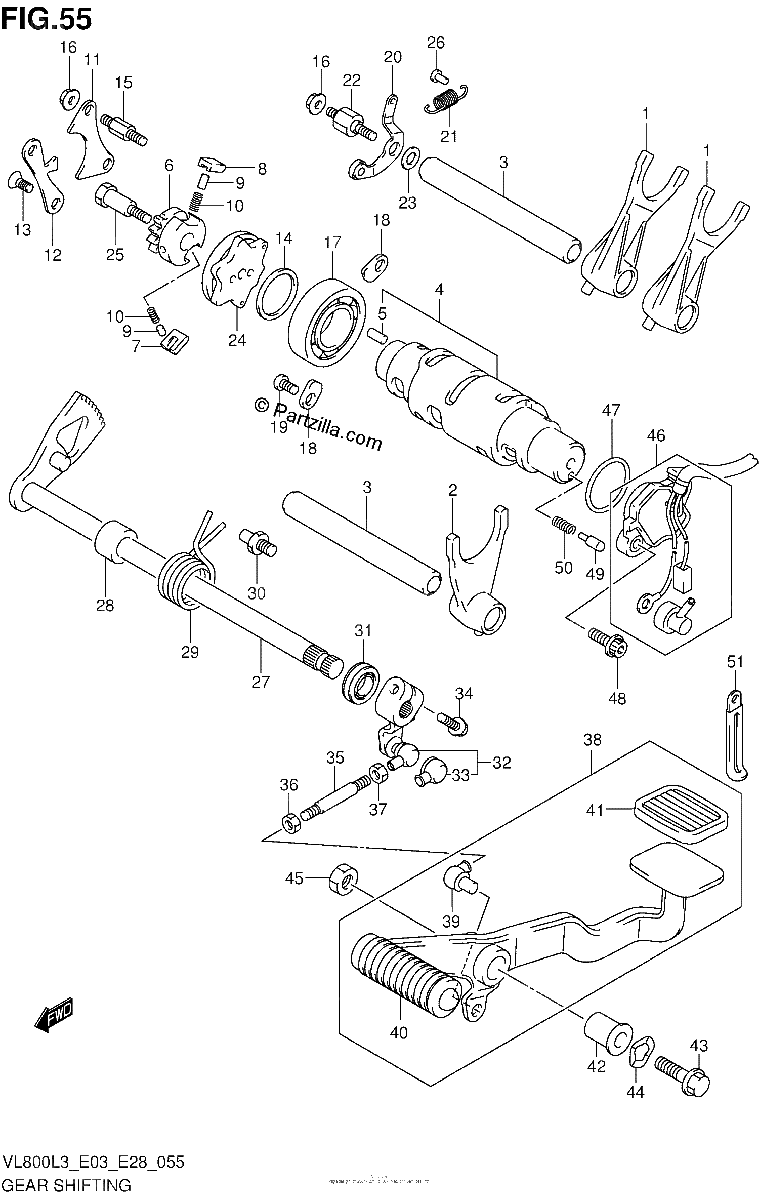

Diagrama de GEAR SHIFTING

Repuestos

#1
25211-38A10
FORK, GEAR SHIFTING NO.1
No Disponible
1
#2
25221-38A10
FORK, GEAR SHIFTING NO.2
No Disponible
1
#3
25411-38A00
SHAFT, GEAR SHIFTING FORK
$36.32¢18 158
1
#4
25310-41F00
CAM, GEAR SHIFTING
$326.83¢163 415
1
#5
04221-04089
.PIN
$1.32¢661
1
#6
25322-31310
GEAR, CAM DRIVEN
$33.44¢16 721
1
#7
25323-34201
PAWL, NO.1
$7.92¢3 962
1
#8
25324-34201
PAWL, NO.2
$8.15¢4 077
1
#9
09261-05003
PIN (5X8)
$1.77¢886
1
#10
09440-04003
SPRING
$1.77¢886
1
#11
25331-38A00
LIFTER, PAWL
No Disponible
1
#12
25341-38A00
GUIDE, CAM
No Disponible
1
#13
09126-06011
SCREW (6X12)
$2.42¢1 208
1
#14
09160-25059
WASHER (25X32X3)
$8.02¢4 008
1
#15
25332-38A10
BOSS, SHIFT PAWL LIFTER
No Disponible
1
#16
08316-1006A
NUT
$2.62¢1 311
1
#17
09262-25006
BEARING (25X47X8)
$27.62¢13 811
1
#18
24741-21A00
RETAINER, BEARING
$3.36¢1 679
1
#19
09125-06122
SCREW (6X12)
$2.64¢1 322
1
#20
25350-38A00
STOPPER, CAM
No Disponible
1
#21
09443-09027
SPRING
$4.75¢2 375
1
#22
25355-38A10
SUPPORT, CAM STOPPER
No Disponible
1
#23
08211-06141
WASHER
$1.92¢960
1
#24
25380-38A02
PLATE, STOPPER
No Disponible
1
#25
25312-38A00
PIN, SHIFT CAM
$6.89¢3 444
1
#26
09223-04004
RIVET
No Disponible
1
#27
25510-38A00
SHAFT, GEAR SHIFTING
$133.20¢66 602
1
#28
09180-12068
SPACER (12X20X15.3)
$3.15¢1 576
1
#29
09444-26013
SPRING
$3.40¢1 702
1
#30
25671-01011
STOPPER, GEAR SHIFT ARM
$4.91¢2 455
1
#31
09285-12006
OIL SEAL (12X22X9)
$6.83¢3 415
1
#32
25520-38B00
ARM, GEAR SHIFT LINK
$54.45¢27 226
1
#33
25526-47000
.COVER, DUST
$5.97¢2 984
1
#34
01547-0620A
BOLT
$2.42¢1 208
1
#35
25525-41F00
ROD, GEAR SHIFT LINK
$11.36¢5 681
1
#36
09140-06011
NUT
$1.64¢822
1
#37
08310-00067
NUT
$2.20¢1 098
1
#38
25600-41F20
LEVER ASSY, GEAR SHIFT
$170.17¢85 083
1
#39
25526-47000
.COVER, DUST
$5.97¢2 984
1
#40
25652-10F00
.RUBBER, GEAR, FR
$7.42¢3 709
1
#41
43151-01400
.RUBBER, GEAR, RR
$7.45¢3 726
1
#42
25617-41F00
SPACER, GEAR SHIFT LEVER
$28.26¢14 128
1
#43
09103-10300
BOLT (10X40)
$6.89¢3 444
1
#44
09164-18009
WASHER
$2.88¢1 438
1
#45
08310-0010B
NUT
$3.28¢1 639
1
#46
37730-41F02
BASE ASSY, GEAR SHIFT TERM
$162.53¢81 265
1
#47
09280-26005
O RING (D:2.4,ID:26.2)
$2.77¢1 386
1
#48
07120-0516A
BOLT
$2.75¢1 374
1
#49
09209-05011
PIN (5X15.5)
$2.36¢1 179
1
#50
09440-04010
SPRING
$1.77¢886
1
#51
09404-06434
CLAMP (L:80 T:1.0) | SHIELD
$2.10¢1 052
1
