TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

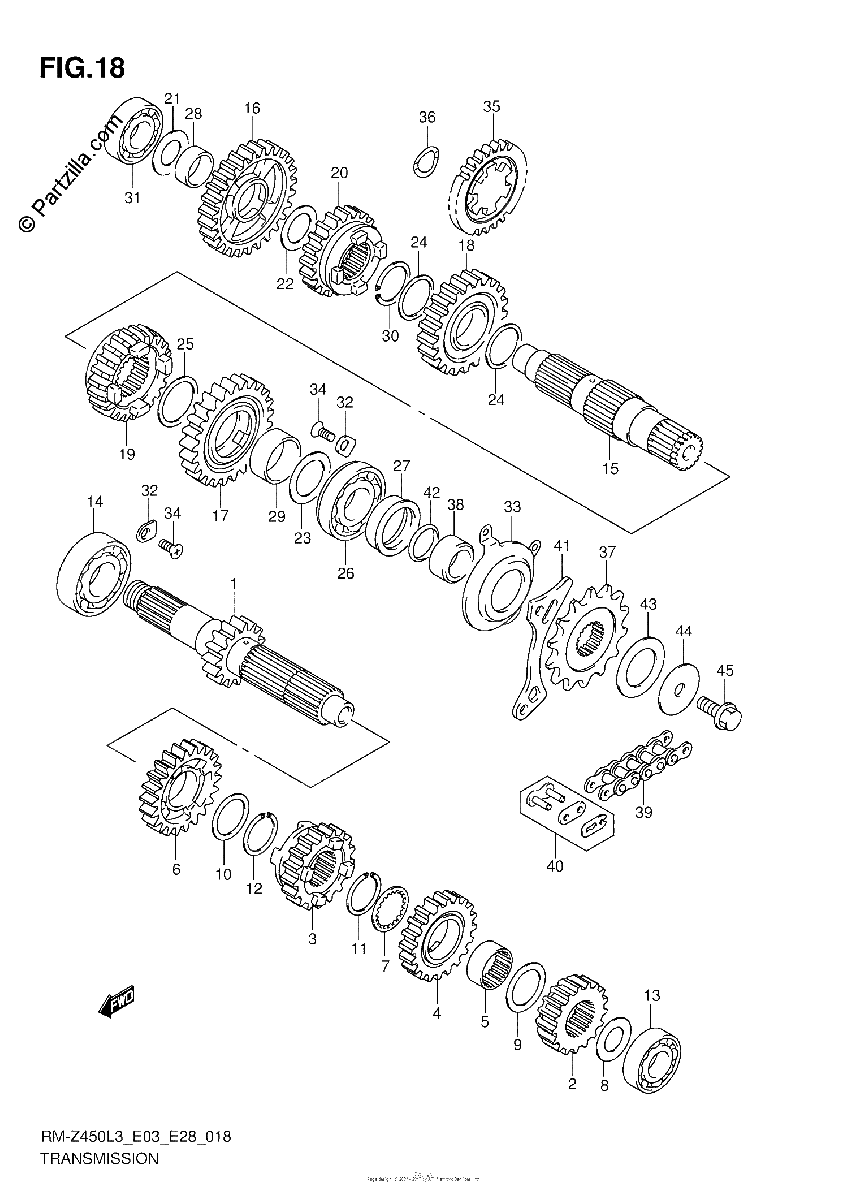

Diagrama de TRANSMISSION

Repuestos

#1
24120-28H10
SHAFT, COUNTER (NT:15)
$298.31¢149 156
1
#2
24221-28H10
GEAR, 2ND DRIVE (NT:17)
$154.69¢77 344
1
#3
24231-28H20
GEAR, 3RD DRIVE (NT:17) | NT:17
$164.21¢82 106
1
#4
24241-28H10
GEAR, 4TH DRIVE (NT:20)
$159.13¢79 563
1
#5
24242-28H00
BUSH, 4TH DRIVE GEAR
$42.53¢21 263
1
#6
24251-28H00
GEAR, 5TH DRIVE (NT:22)
$152.79¢76 394
1
#7
09167-25026
LOCK WASHER
$4.88¢2 438
1
#8
09181-17223
SHIM (17X30X1)
$3.65¢1 825
1
#9
09181-25059
SHIM (25X34X1)
$3.71¢1 856
1
#10
09181-25139
SHIM (25X32X1)
$3.65¢1 825
1
#11
09380-25010
CIRCLIP
$3.65¢1 825
1
#12
09380-25010
CIRCLIP
$3.65¢1 825
1
#13
08123-62030
BEARING
$33.41¢16 706
1
#14
08143-62057
BEARING | LH
$28.69¢14 344
1
#15
24131-28H10
SHAFT, DRIVE
No Disponible
1
#16
24311-28H00
GEAR, 1ST DRIVEN (NT:27)
$164.66¢82 331
1
#17
24321-28H00
GEAR, 2ND DRIVEN (NT:25)
$164.66¢82 331
1
#18
24331-28H10
GEAR, 3RD DRIVEN (NT:21)
$159.13¢79 563
1
#19
24341-28H10
GEAR, 4TH DRIVEN (NT:21)
$182.21¢91 106
1
#20
24351-28H30
GEAR, 5TH DRIVEN (NT:20) | NT:20
$164.21¢82 106
1
#21
09181-17223
SHIM (17X30X1)
$3.65¢1 825
1
#22
09181-20195
SHIM (20X30X1)
$3.36¢1 681
1
#23
09181-24005
SHIM (24X34X1)
$4.19¢2 094
1
#24
09181-25111
SHIM (25X30X1)
$5.38¢2 688
1
#25
09181-27015
SHIM (27X33X1)
$6.04¢3 019
1
#26
09262-24001
BEARING (24X56X14)
$118.38¢59 188
1
#27
09289-31003
OIL SEAL (31X40X8.5)
$16.14¢8 069
1
#28
09300-20037
BUSH (20X24X10)
$23.50¢11 750
1
#29
09300-27005
BUSH
No Disponible
1
#30
09380-25010
CIRCLIP
$3.65¢1 825
1
#31
08123-62030
BEARING
$33.41¢16 706
1
#32
24741-20A00
RETAINER, BEARING
$3.65¢1 825
1
#33
24751-28H00
RETAINER, DRIVE SHAFT OIL SEA
$21.72¢10 862
1
#34
09126-06011
SCREW (6X12)
$2.63¢1 313
1
#35
26260-35G00
GEAR, KICK STARTER IDLE | NT:23
$216.74¢108 369
1
#36
26264-28H00
WASHER, KICK IDLE
$9.56¢4 781
1
#37
27511-28H00
SPROCKET, ENGINE (NT:13)
$41.84¢20 919
1
#38
27531-35G01
SPACER, ENGINE SPROCKET
$38.59¢19 294
1
#39
27600-35G01-114
CHAIN ASSY, DRIVE (DID520MXV4
$439.63¢219 813
1
#40
27620-35G01
.JOINT SET, CHAIN | OPT
$28.85¢14 425
1
#41
27641-35G01
PLATE, FRONT CHAIN GUIDE
$14.25¢7 125
1
#42
27515-28H00
D RING, SPROCKET SPACER
$7.97¢3 988
1
#43
27514-49H00
WASHER, ENGINE SPROCKET WAVE
$9.06¢4 531
1
#44
27513-49H00
WASHER, ENGINE SPROCKET
$20.50¢10 250
1
#45
09103-08458
BOLT (8X30)
$6.63¢3 313
1
