ELECTRICAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

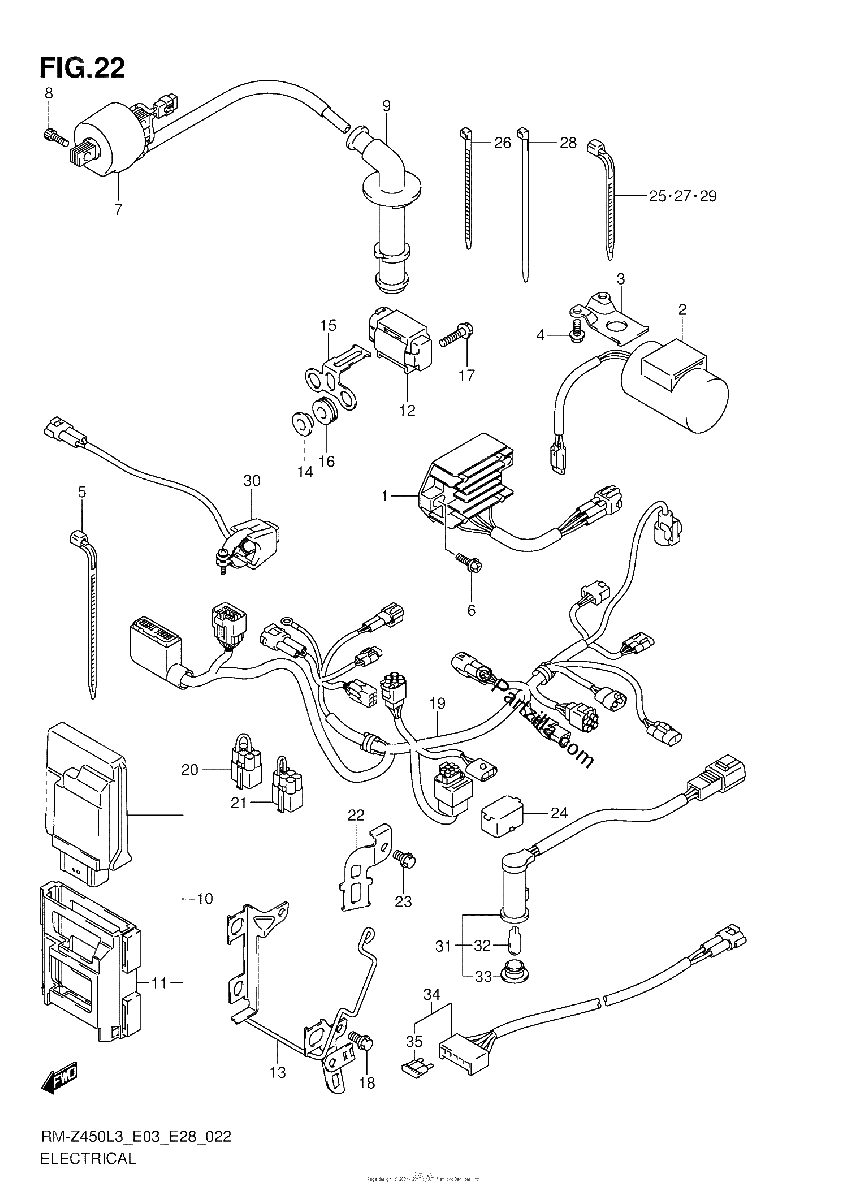

Diagrama de ELECTRICAL

Repuestos

#1
32800-28H00
RECTIFIER ASSY
$243.50¢121 750
1
#2
33640-28H00
CONDENSER ASSY
$191.36¢95 681
1
#3
33641-28H00
BRACKET, CONDENSER
No Disponible
1
#4
09103-06188
BOLT (6X10)
$3.81¢1 906
1
#5
09407-25401
CLAMP (L:235)
$5.49¢2 744
1
#6
02162-0620C
BOLT
$2.25¢1 125
1
#7
33410-28H00
COIL ASSY, IGNITION
$118.01¢59 006
1
#8
07130-0620A
BOLT
$3.25¢1 625
1
#9
33510-28H00
CAP ASSY, SPARK PLUG
$80.72¢40 363
1
#10
32920-28HC0
CONTROL UNIT, FI
No Disponible
1
#11
32981-28HA0
CUSHION, FI CONTROL UNIT
No Disponible
1
#12
33960-06G10
SENSOR ASSY, FUEL CUT
$107.21¢53 606
1
#13
32931-28H00
BRACKET, FI CONTROL UNIT
$53.27¢26 638
1
#14
09180-06331
.SPACER (6.2X8.4X10.9)
$6.25¢3 125
1
#15
33961-28HA0
BRACKET, FUEL CUT SENSOR
$9.10¢4 550
1
#16
09320-08501
CUSHION
$3.85¢1 925
1
#17
09116-06103
BOLT (6X30)
$4.13¢2 063
1
#18
01550-0610A
.BOLT
$2.56¢1 281
1
#19
36610-28H40
HARNESS, WIRING
$435.10¢217 550
1
#20
36852-28H00
WIRE, SHORT
$17.79¢8 894
1
#21
36852-49H00
WIRE, SHORT
$13.67¢6 837
1
#22
36672-28H10
BRACKET, COUPLER
$11.35¢5 675
1
#23
01547-0610A
BOLT
$1.77¢888
1
#24
36654-46H00
CAP, TS
$17.02¢8 513
1
#25
09407-11401
CLAMP (L:95)
$3.46¢1 731
1
#26
09407-10403
CLAMP (L:95)
No Disponible
1
#27
09407-14403
CLAMP (L:125)
$2.92¢1 463
1
#28
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#29
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
#30
37820-36E00
SWITCH ASSY, ENGINE STOP
$28.91¢14 456
1
#31
36380-28H00
LAMP ASSY, FI INDICATOR | OPT
$104.69¢52 344
1
#32
09471-12028
.BULB (12V,3.4W) | OPT
$2.58¢1 288
1
#33
36321-28H00
.LENS (RED) | OPT
$14.28¢7 138
1
#34
36890-28H00
WIRE, BATTERY | OPT
$62.13¢31 063
1
#35
09481-10101
.FUSE (10A) | OPT
$2.71¢1 356
1
