FUEL TANK GSX1300RAL3 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

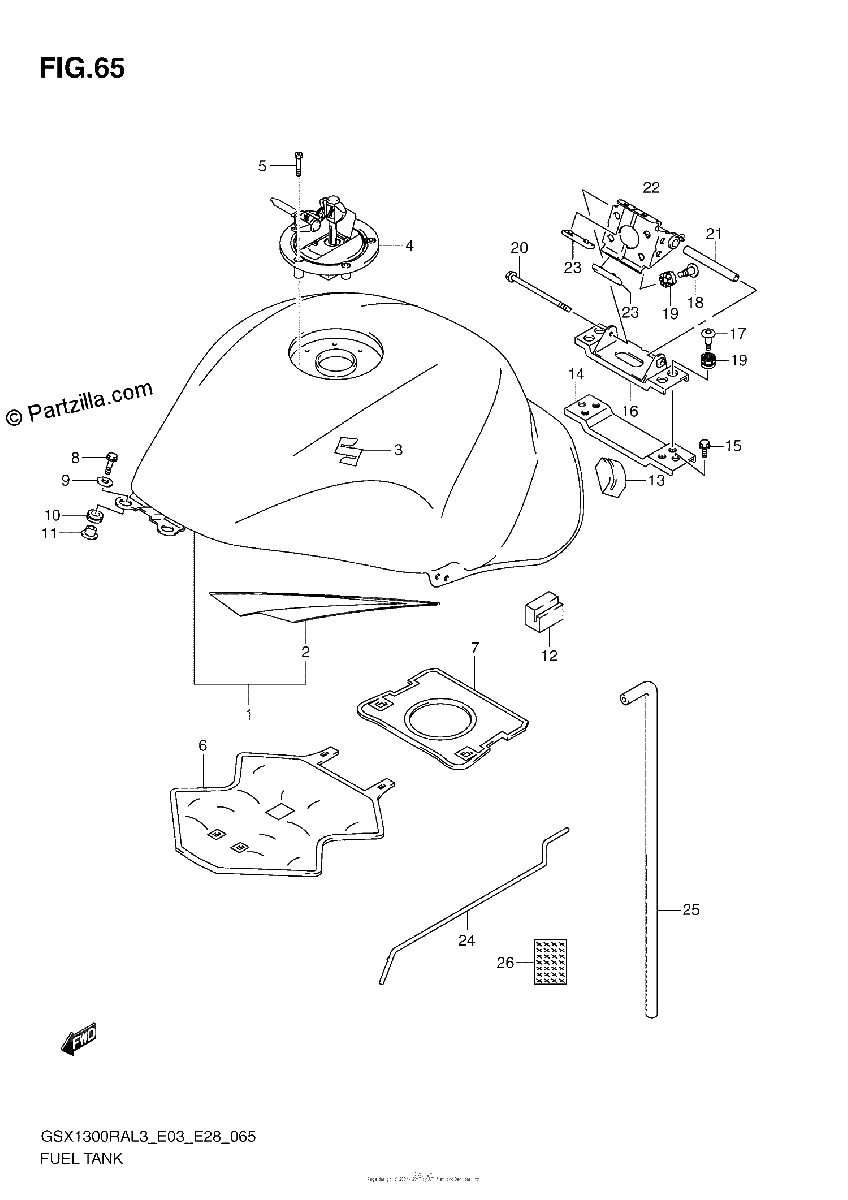

Diagrama de FUEL TANK GSX1300RAL3 E33

Repuestos

#1
44100-15HB0-YVB
TANK ASSY, FUEL (WHITE) | FOR AJM
No Disponible
1
#1
44100-15HB0-YWW
TANK ASSY, FUEL (BLACK) | FOR AJN
No Disponible
1
#1
44100-15HB0-YMF
TANK ASSY, FUEL (YELLOW) | FOR KGK
$2720.41¢1 360 203
1
#2
68110-15H20-AJT
TAPE SET (BLACK) | FOR YMF
$111.87¢55 936
1
#2
68110-15H20-AJV
TAPE SET (GRAY) | FOR YWW
No Disponible
1
#2
68110-15H20-AJU
TAPE SET (GRAY) | FOR YVB
$115.03¢57 517
1
#3
68111-18G20
EMBLEM, in.Sin.
$35.43¢17 716
1
#4
44200-16870
CAP SET, FUEL TANK
$191.25¢95 623
1
#5
09106-05017
BOLT (5X20)
$3.36¢1 679
1
#6
44191-15H00
SHIELD, FUEL TANK HEAT NO.1
$219.56¢109 779
1
#7
44191-15H10
SHIELD, FUEL TANK HEAT NO.2
$92.02¢46 011
1
#8
09139-06029
SCREW (6X25)
$5.80¢2 898
1
#9
09160-06054
WASHER
$1.93¢966
1
#10
44511-16G00
CUSHION, FUEL TANK FRONT
$4.52¢2 260
1
#11
44512-16G00
SPACER, FUEL TANK FRONT
$8.15¢4 077
1
#12
44541-24F00
CUSHION, SIDE
$6.44¢3 220
1
#13
44543-15H00
CUSHION, REAR
$6.36¢3 180
1
#14
44555-15H00
BRACKET, FUEL TANK REAR NO.3
No Disponible
1
#15
01550-0816A
BOLT
$2.77¢1 386
1
#16
44550-15H01
BRACKET, FUEL TANK REAR NO.2
No Disponible
1
#17
09139-06191
SCREW (6X22)
$4.42¢2 208
1
#18
09139-06191
SCREW (6X22)
$4.42¢2 208
1
#19
09320-08071
CUSHION
$3.66¢1 829
1
#20
07120-0695B
BOLT
$4.74¢2 369
1
#21
44561-18G00
SPACER, FUEL TANK REAR
$18.61¢9 304
1
#22
44530-15H01
BRACKET, FUEL TANK REAR NO.1
No Disponible
1
#23
45149-44G00
CUSHION, BRACKET
No Disponible
1
#24
44574-35F00
STAY | OPT
$16.64¢8 320
1
#25
44423-15H00
HOSE, DRAIN
$27.74¢13 869
1
#26
44427-15H10
SHIELD, DRAIN HOSE HEAT
No Disponible
1
