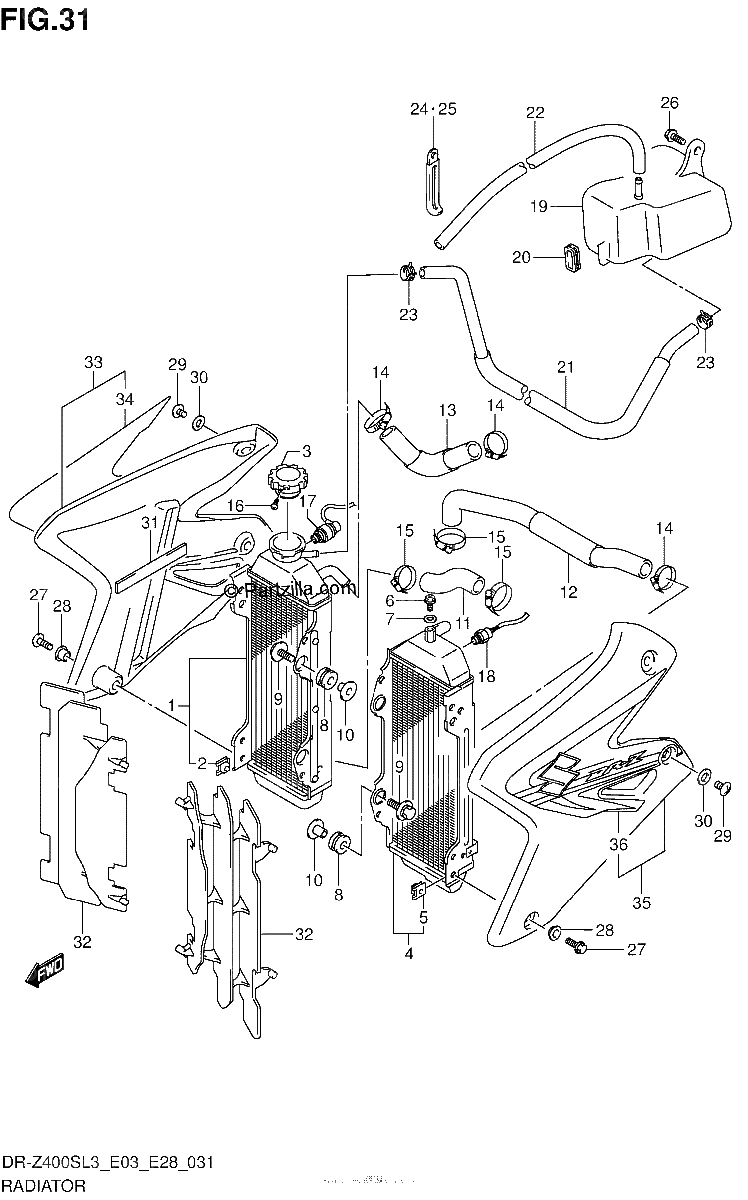

RADIATOR DR Z400SL3 E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RADIATOR, WATER RH
$724.99¢362 497
#2
.NUT
$3.36¢1 679
#3
CAP, RADIATOR (1.1)
$46.43¢23 213
#4
RADIATOR, WATER LH
$753.63¢376 815
#5
.NUT
$3.36¢1 679
#6
BOLT, THERMOSTAT COVER AIR
$6.96¢3 479
#7
GASKET (6.4X11.5X0.8)
$3.36¢1 679
#8
CUSHION, RADIATOR SUPPORT
$3.91¢1 955
#9
BOLT (6X25)
$3.51¢1 754
#10
SPACER (6.5X10.5X14.1)
$5.90¢2 950
#11
HOSE, RADIATOR INLET
$20.18¢10 091
#12
HOSE, RADIATOR OUTLET
$62.48¢31 240
#13
HOSE, RADIATOR JOINT
$33.14¢16 572
#14
CLAMP
$7.56¢3 778
#15
CLAMP
$15.50¢7 751
#16
SCREW, RADIATOR CAP
$3.25¢1 627
#17
SWITCH ASSY, WATER TEMP
$154.35¢77 176
#18
SWITCH, FAN
$153.98¢76 992
#19
TANK, RESERVOIR
$54.73¢27 364
#20
CUSHION, RESERVOIR TANK
$5.50¢2 749
#21
HOSE, RESERVOIR TANK INLET
$26.13¢13 064
#22
HOSE (5X9X2000) | L:2000-700
$38.27¢19 136
#23
CLIP
$2.12¢1 058
#24
CLAMP (L:45)
$2.70¢1 351
#25
CLAMP (L:45)
$2.14¢1 070
#26
.BOLT
$2.85¢1 426
#27
BOLT (6X16)
$2.42¢1 208
#28
.WASHER
$1.32¢661
#29
BOLT (6X8)
$2.56¢1 282
#30
WASHER (6.5X14X1.6)
$2.27¢1 133
#31
CUSHION, TOOL HOLDER
$5.50¢2 749
#32
LOUVER, RADIATOR
$20.93¢10 465
#33
COVER, RADIATOR RH (WHITE) | FOR 30H
No Disponible
#33
COVER, RADIATOR RH (BLACK) | FOR 019
$279.94¢139 972
#34
TAPE, RADIATOR COVER RH | FOR 3WX
$116.55¢58 276
#34
TAPE, RADIATOR COVER RH | FOR 5UX
No Disponible
#35
COVER, RADIATOR LH (WHITE) | FOR 30H
$135.72¢67 861
#35
COVER, RADIATOR LH (BLACK) | FOR 019
$279.94¢139 972
#36
TAPE, RADIATOR COVER LH | FOR 3WX
No Disponible
#36
TAPE, RADIATOR COVER LH | FOR 5UX
No Disponible
