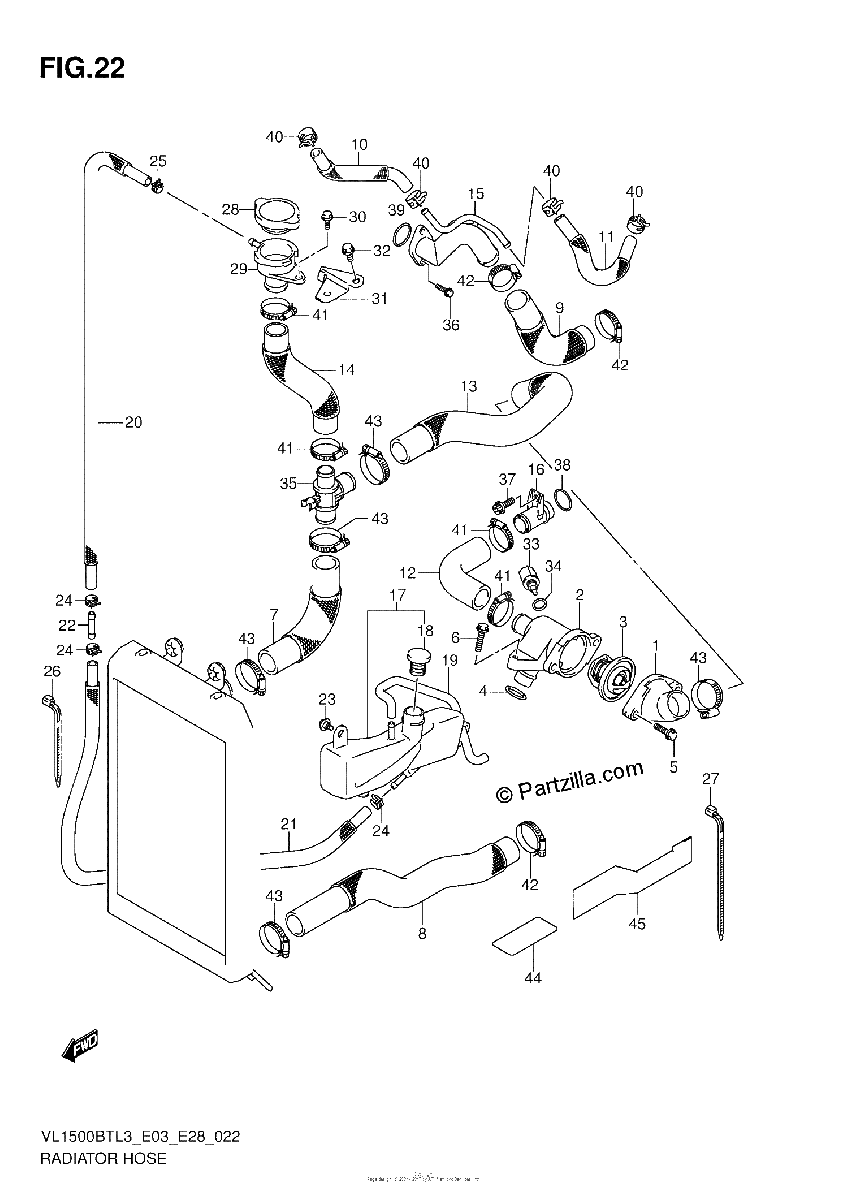

RADIATOR HOSE VL1500BTL3 E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, THERMOSTAT
$40.27¢20 138
#2
CONNECTOR, THERMOSTAT INLET
No Disponible
#3
THERMOSTAT, WATER
$30.72¢15 362
#4
O RING (D:3.2,ID:17.8)
$6.85¢3 425
#5
BOLT
$2.56¢1 281
#6
BOLT
$2.63¢1 313
#7
HOSE, RADIATOR INLET
$35.65¢17 825
#8
HOSE, RADIATOR OUTLET
$67.60¢33 800
#9
HOSE, CYLINDER INLET
No Disponible
#10
HOSE, WATER BYPASS UPPER
No Disponible
#11
HOSE, WATER BYPASS LOWER
No Disponible
#12
HOSE, RR CYLINDER HEAD OUTLET
$31.90¢15 950
#13
HOSE, THERMOSTAT OUTLET
$66.53¢33 263
#14
HOSE, CONDUCTION
$43.56¢21 781
#15
PIPE, CYLINDER WATER INLET
No Disponible
#16
UNION, CONNECTOR HOSE
$17.71¢8 856
#17
TANK ASSY, RESERVOIR
No Disponible
#18
.CAP
$6.64¢3 319
#19
HOSE, TANK OVERFLOW
No Disponible
#20
HOSE, TANK INLET NO.1
No Disponible
#21
HOSE (5X9X600) | L:600-500
$9.60¢4 800
#22
UNION
$7.50¢3 750
#23
BOLT (6X12)
$5.42¢2 713
#24
CLIP
$2.30¢1 150
#25
CLIP
$3.66¢1 831
#26
CLAMP (L:125)
$2.92¢1 463
#27
CLAMP (L:190)
$4.00¢2 000
#28
CAP, RADIATOR (1.1)
$51.08¢25 538
#29
CONDUCTION, RADIATOR
$31.69¢15 844
#30
BOLT
$1.94¢969
#31
BRACKET, CONDUCTION
No Disponible
#32
BOLT
$2.63¢1 313
#33
SENSOR, WATER TEMPERATURE
$107.54¢53 769
#34
GASKET (12X17X1)
$2.56¢1 281
#35
JOINT, 3 WAY
$15.35¢7 675
#36
BOLT (6X16)
$2.63¢1 313
#37
BOLT
$3.25¢1 625
#38
O RING (D:3.2,ID:17.8)
$6.85¢3 425
#39
O RING (D:2.4,ID:26.2)
$3.01¢1 506
#40
CLAMP
$3.89¢1 944
#41
CLAMP
$16.85¢8 425
#42
CLAMP
$13.97¢6 988
#43
CLAMP
$11.25¢5 625
#44
TAPE
$18.94¢9 469
#45
CUSHION, RESERVOIR TANK HOSE
No Disponible
