OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

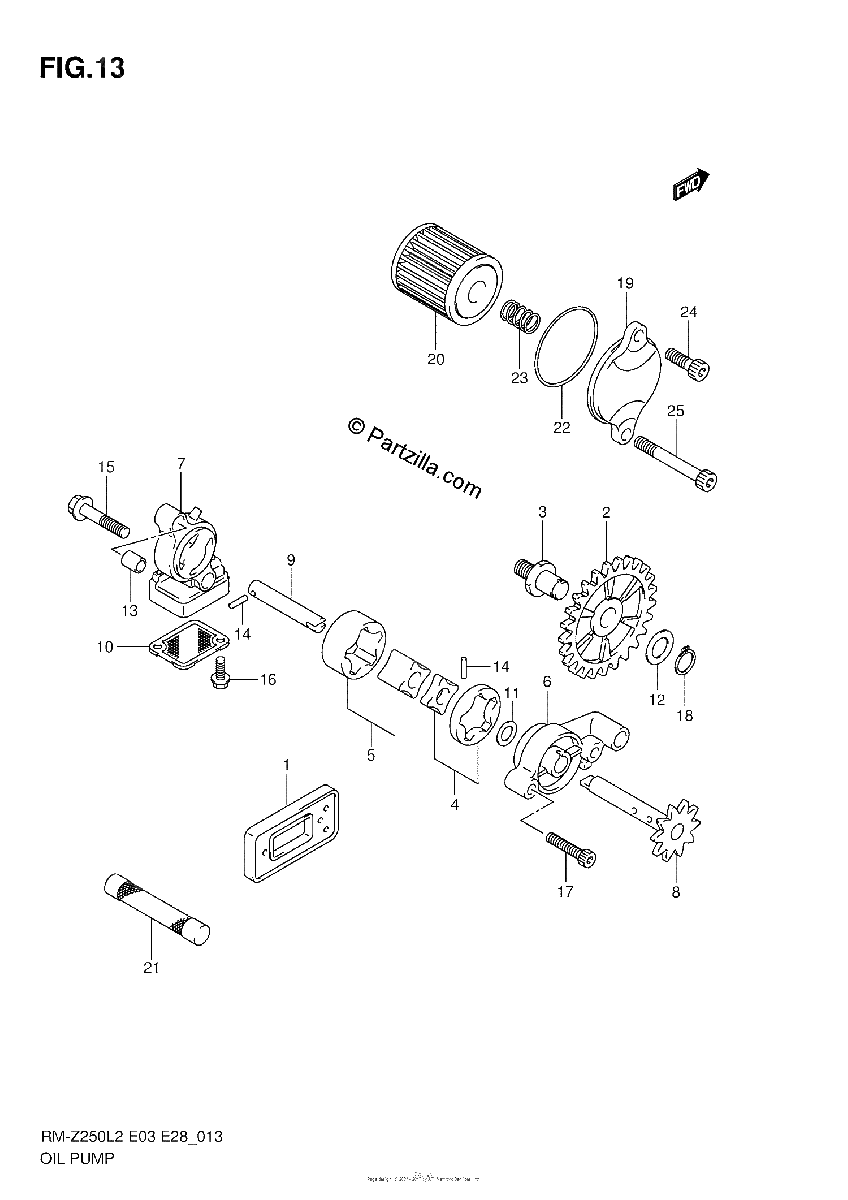

Diagrama de OIL PUMP

Repuestos

#1
13150-28H00
VALVE ASSY, OIL REED
$57.85¢28 925
1
#2
16321-49H00
GEAR, OIL PUMP IDLE (NT:25)
$82.22¢41 113
1
#3
16322-49H00
SHAFT, OIL PUMP IDLE GEAR
$63.48¢31 738
1
#4
16410-49H00
ROTOR SET, OIL PUMP NO.1
$41.42¢20 713
1
#5
16410-45G00
ROTOR SET, OIL PUMP NO.2
$48.71¢24 356
1
#6
16430-49H01
COVER, OIL PUMP NO.1
$72.34¢36 169
1
#7
16433-49H00
COVER, OIL PUMP NO.2
$76.85¢38 425
1
#8
16440-49H00
SHAFT, OIL PUMP DRIVEN GEAR
$91.44¢45 719
1
#9
16443-28H00
SHAFT, OIL PUMP NO.2
$26.19¢13 094
1
#10
16530-49H00
STRAINER, OIL PUMP NO.2
$13.40¢6 700
1
#11
09181-08106
WASHER (8X12X0.8)
$2.71¢1 356
1
#12
09181-10158
SHIM (10X18X0.5)
$2.56¢1 281
1
#13
09206-08001
.PIN (8X11)
$2.30¢1 150
1
#14
09261-02008
PIN (2.5X11.8)
$1.93¢963
1
#15
01547-0635A
BOLT
$3.01¢1 506
1
#16
07120-0512A
BOLT
$2.99¢1 494
1
#17
07130-0520B
BOLT
$3.31¢1 656
1
#18
08331-31109
CIRCLIP
$2.30¢1 150
1
#19
16315-35G40
CAP, ENG OIL FILTER OUTER
$30.40¢15 200
1
#20
16510-35G00
FILTER, ENGINE OIL
$11.74¢5 869
1
#21
16520-10H10
STRAINER, ENGINE OIL
$56.29¢28 144
1
#22
09280-39001
O RING (D:2,ID:38.5)
$3.71¢1 856
1
#23
09440-10038
SPRING
$3.65¢1 825
1
#24
01547-0616A
BOLT
$2.63¢1 313
1
#25
01547-0635A
BOLT
$3.01¢1 506
1
