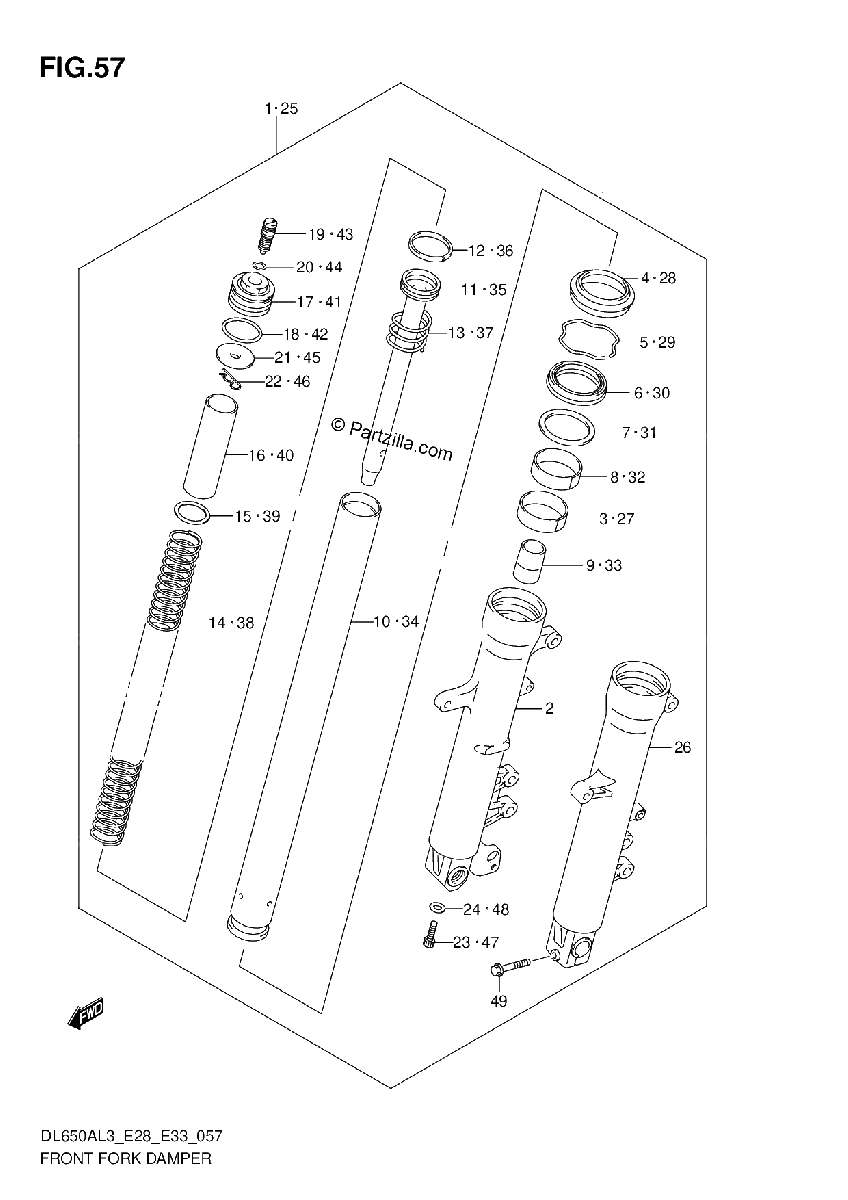

FRONT FORK DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1694.06¢847 031
#2
.TUBE, OUTER RH
No Disponible
#3
.BUSH, SLIDE
$25.16¢12 581
#4
.SEAL, DUST
$31.70¢15 850
#5
.RING
$8.61¢4 306
#6
.OIL SEAL
$32.09¢16 044
#7
.SPACER, SEAL
$7.70¢3 850
#8
.BUSH, GUIDE
$16.94¢8 469
#9
.PIECE, OIL LOCK
$40.79¢20 394
#10
.PIPE, FORK
$662.59¢331 294
#11
.PIPE SEAT
$79.13¢39 563
#12
.RING, PISTON
$9.46¢4 731
#13
.SPRING, REBOUND
$17.65¢8 825
#14
.SPRING, FRONT
$140.29¢70 144
#15
.SEAT, SPRING, LOWER
$10.19¢5 094
#16
.COLLAR, SPRING
$18.50¢9 250
#17
.BOLT, FORK
$56.59¢28 294
#18
.O RING
$7.30¢3 650
#19
.ADJUSTER BOLT, SPRING
No Disponible
#20
.O RING
$5.60¢2 800
#21
.SEAT, SPRING
$10.19¢5 094
#22
.PIN, SEAT SPRING
No Disponible
#23
.BOLT
$5.17¢2 588
#24
.GASKET
$4.25¢2 125
#25
DAMPER ASSY, FRONT FORK LH
$1694.06¢847 031
#26
.TUBE, OUTER LH
$906.59¢453 294
#27
.BUSH, SLIDE
$25.16¢12 581
#28
.SEAL, DUST
$31.70¢15 850
#29
.RING
$8.61¢4 306
#30
.OIL SEAL
$32.09¢16 044
#31
.SPACER, SEAL
$7.70¢3 850
#32
.BUSH, GUIDE
$16.94¢8 469
#33
.PIECE, OIL LOCK
$40.79¢20 394
#34
.PIPE, FORK
$662.59¢331 294
#35
.PIPE SEAT
$79.13¢39 563
#36
.RING, PISTON
$9.46¢4 731
#37
.SPRING, REBOUND
$17.65¢8 825
#38
.SPRING, FRONT
$140.29¢70 144
#39
.SEAT, SPRING, LOWER
$10.19¢5 094
#40
.COLLAR, SPRING
$18.50¢9 250
#41
.BOLT, FORK
$56.59¢28 294
#42
.O RING
$7.30¢3 650
#43
.ADJUSTER BOLT, SPRING
No Disponible
#44
.O RING
$5.60¢2 800
#45
.SEAT, SPRING
$10.19¢5 094
#46
.PIN, SEAT SPRING
No Disponible
#47
.BOLT
$5.17¢2 588
#48
.GASKET
$4.25¢2 125
#49
BOLT | LH
$5.36¢2 681
