FRONT CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

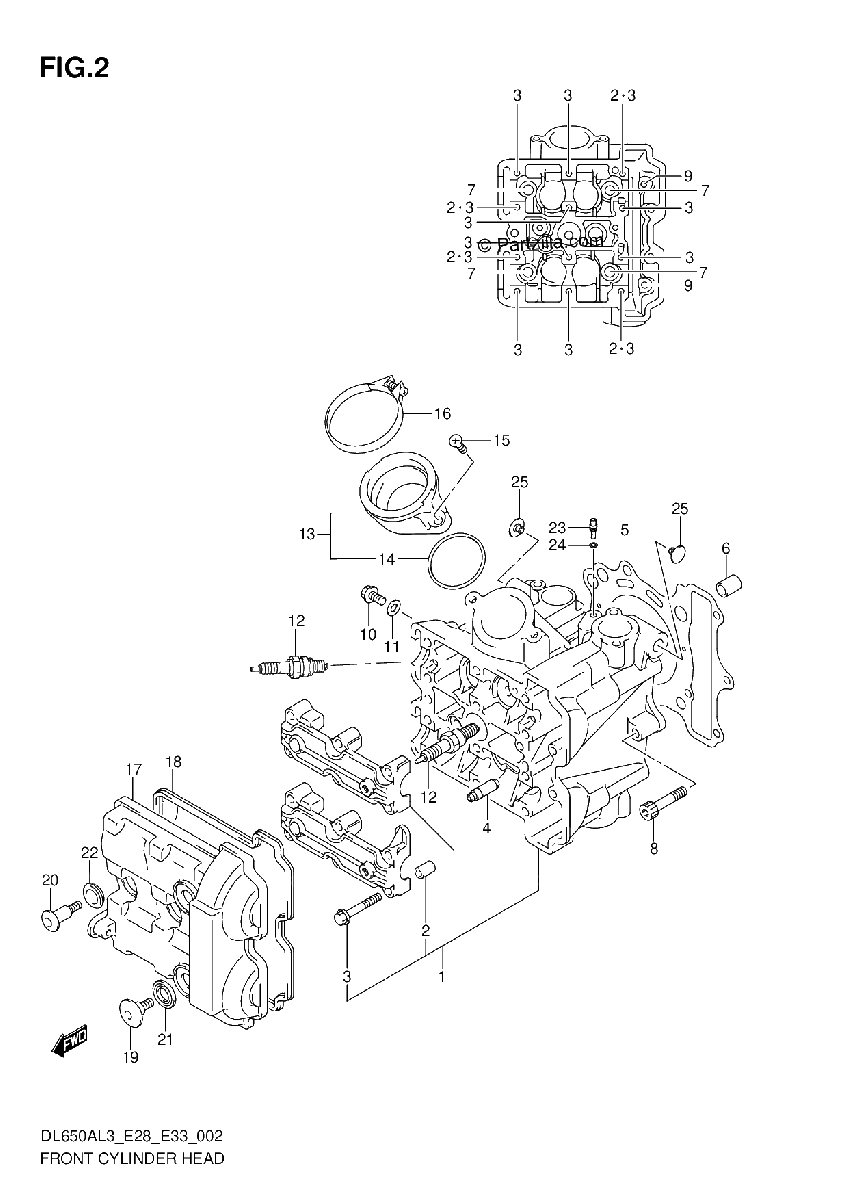

Diagrama de FRONT CYLINDER HEAD

Repuestos

#1
11101-44H00
HEAD ASSY, CYLINDER FRONT
No Disponible
1
#2
09206-08001
.PIN (8X11)
$2.12¢1 058
1
#3
09103-06266
.BOLT (6X40)
$2.55¢1 277
1
#4
11115-18D72
GUIDE, VALVE (OS:0.3) | OPT
$39.08¢19 538
1
#5
11141-20F00
GASKET, CYLINDER HEAD
$49.10¢24 553
1
#6
04211-13189
PIN
$2.62¢1 311
1
#7
11117-44H00
BOLT (10X160)
$24.49¢12 247
1
#8
07120-0640A
BOLT
$3.68¢1 840
1
#9
09103-06103
BOLT (6X70)
$3.02¢1 512
1
#10
09103-06222
BOLT (6X12)
$2.74¢1 368
1
#11
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#13
13101-17G10
PIPE ASSY, INTAKE FRONT
$68.71¢34 356
1
#14
09280-46006
.O RING (D:2.4,ID:47X42)
$7.58¢3 789
1
#15
02122-0616B
SCREW
$2.37¢1 185
1
#16
13827-40H01
CLAMP, INTAKE PIPE
$19.09¢9 545
1
#17
11171-19F20
COVER, CYLINDER HEAD FRONT
$188.51¢94 254
1
#18
11173-19F01
GASKET, CYLINDER HEAD COVER
$37.40¢18 699
1
#19
09106-07009
BOLT (7X17.5)
$4.88¢2 438
1
#20
09106-07010
BOLT (7X31)
$5.11¢2 553
1
#21
11191-27E00
WASHER
$4.46¢2 231
1
#22
11192-13E00
CUSHION HEAD COVER BOLT
$4.76¢2 380
1
#23
09493-80005
JET(8)
$19.63¢9 815
1
#24
09280-04004
O RING (D:1.2,ID:4)
$2.04¢1 018
1
#25
11151-27G00
CAP
$4.58¢2 289
1
#12-1
09482-00556
SPARK PLUG (CR8EIA-9) | OPT
$11.57¢5 784
1
#12-2
09482-00555
SPARK PLUG (IU24D) | OPT
$19.71¢9 856
1
#12-3
09482-00558
SPARK PLUG (CR9EIA-9) | NGK
$12.94¢6 469
1
#12-4
09482-00557
SPARK PLUG (IU27D) | DENSO
$18.22¢9 108
1
#12-5
09482-00554
SPARK PLUG (CR7EIA-9) | OPT
$12.75¢6 377
1
