REAR CYLINDER HEAD VL800L3 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

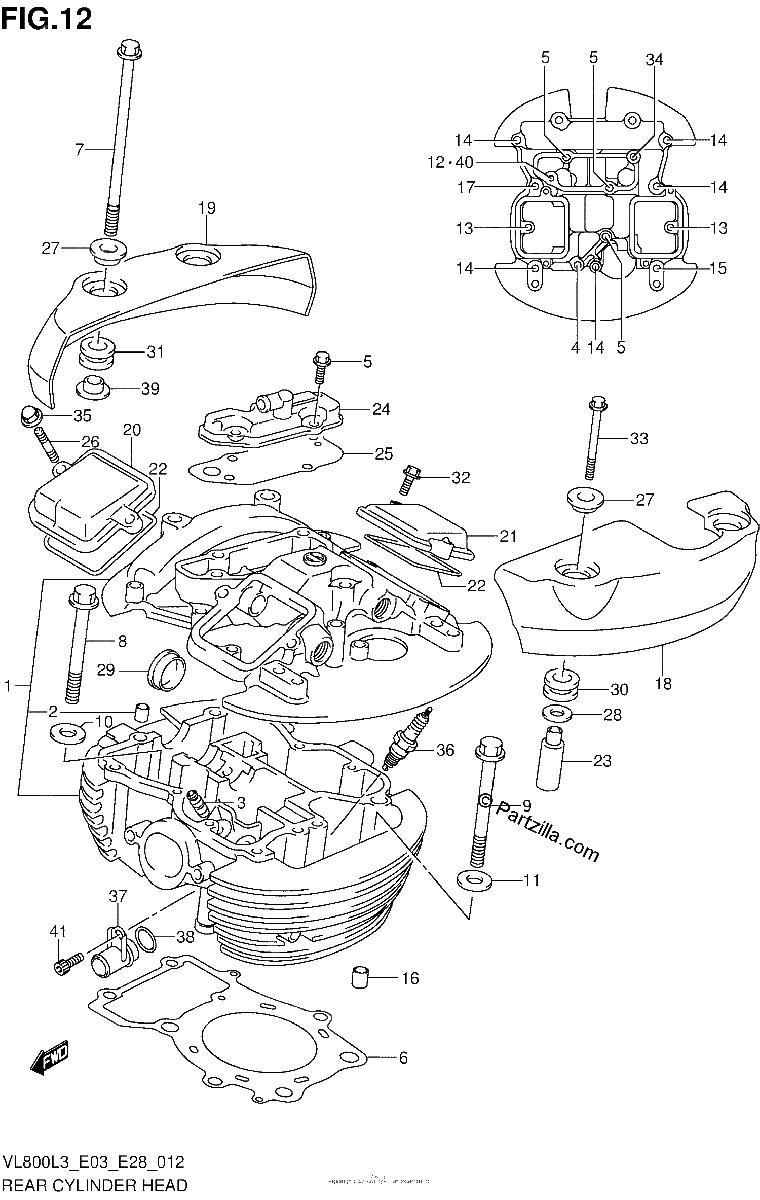

Diagrama de REAR CYLINDER HEAD VL800L3 E28

Repuestos

#1
11103-39G60
HEAD ASSY, CYLINDER REAR
No Disponible
1
#2
09206-11004
PIN
$5.80¢2 898
1
#3
11115-41F70
GUIDE, VALVE (OS 0.3) | OPT
$50.60¢25 300
1
#4
09103-06304
BOLT (6X50)
$3.07¢1 535
1
#5
09103-06305
BOLT (6X55)
No Disponible
1
#6
11142-41F00
GASKET, CYLINDER HEAD REAR
$43.40¢21 700
1
#7
09103-08370
BOLT (8X250)
$19.57¢9 786
1
#8
09103-10133
BOLT (10X155)
$11.47¢5 733
1
#9
09103-10134
BOLT (10X165)
$11.47¢5 733
1
#10
09160-08130
WASHER (8.5X24X1.6)
$2.42¢1 208
1
#11
09160-10039
WASHER (10.5X22X2.3)
$2.69¢1 346
1
#12
01547-0655A
BOLT
$2.91¢1 455
1
#13
01547-0625A
BOLT
$2.42¢1 208
1
#14
01547-0630A
BOLT
$2.77¢1 386
1
#15
01547-0640A
.BOLT
$2.77¢1 386
1
#16
04211-13189
PIN
$2.62¢1 311
1
#17
07120-0630B
BOLT (L:30)
$3.83¢1 915
1
#18
11173-41FA0
CAP, CYLINDER HEAD COVER RR
No Disponible
1
#19
11174-41F00
CAP, CYLINDER HEAD COVER RR
No Disponible
1
#20
11175-38A11
CAP, INSPECTION INTAKE
$28.66¢14 329
1
#21
11176-38A11
CAP, INSPECTION EXHAUST
$28.66¢14 329
1
#22
11177-38A00
GASKET, INSPECTION CAP
$4.91¢2 455
1
#23
11179-10F10
SPACER, HEAD COVER CAP
$15.10¢7 550
1
#24
11186-41FB0
COVER, BREATHER
No Disponible
1
#25
11187-41F20
GASKET, BREATHER COVER
$9.46¢4 732
1
#26
09108-06102
STUD BOLT
$4.92¢2 461
1
#27
09160-06084
WASHER (6.5X18X1.6)
$2.12¢1 058
1
#28
09160-09016
WASHER (9.5X20X1)
$2.78¢1 392
1
#29
09241-30004
PLUG (OD:30)
$7.15¢3 577
1
#30
09320-09016
CUSHION
$2.36¢1 179
1
#31
09320-13015
CUSHION
$3.36¢1 679
1
#32
01547-0620A
BOLT
$2.42¢1 208
1
#33
01547-06557
BOLT
$2.81¢1 403
1
#34
01547-0620A
BOLT
$2.42¢1 208
1
#35
09159-06093
NUT
No Disponible
1
#36
09482-00354
SPARK PLUG (DPR7EA-9) | NGK
$3.65¢1 823
1
#36
09482-00335
SPARK PLUG (X24EPR-U9) | OPT
$5.88¢2 938
1
#36
09482-00334
SPARK PLUG (DPR8EA-9) | OPT
$3.36¢1 679
1
#36
09482-00331
SPARK PLUG (X27EPR-U9) | OPT
$6.38¢3 191
1
#36
09482-00330
SPARK PLUG (DPR9EA-9) | OPT
$3.42¢1 708
1
#37
17891-41F10
UNION, CYLINDER HEAD JOINT
$22.83¢11 414
1
#38
09280-16005
O RING (D:2.4,ID:15.8)
$2.69¢1 346
1
#39
09301-08007
BUSH
$8.20¢4 100
1
#40
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#41
07130-0612A
BOLT
$2.99¢1 495
1
