REAR SWINGING ARM GSX R1000L3 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

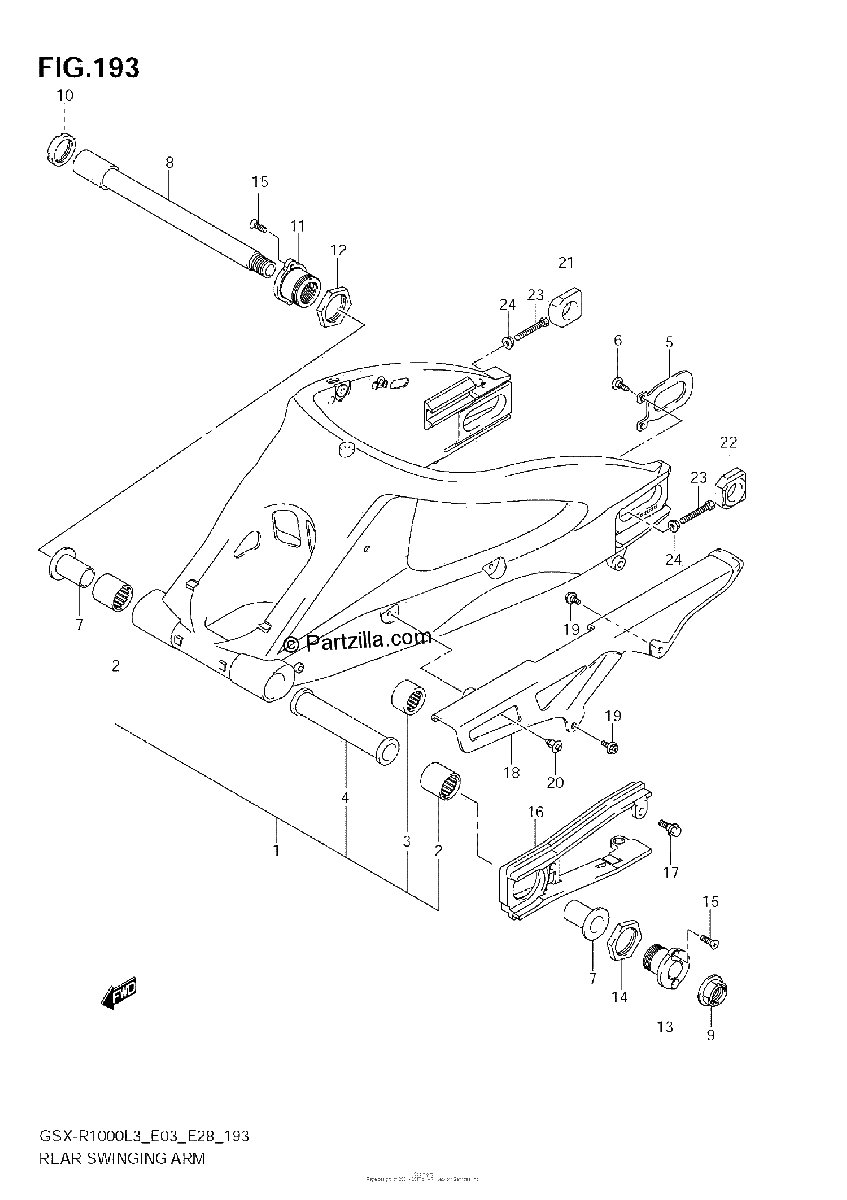

Diagrama de REAR SWINGING ARM GSX R1000L3 E28

Repuestos

#1
61000-47H10-YAP
SWINGING ARM ASSY, REAR (BLACK)
$2778.14¢1 389 068
1
#1
61000-47H10-YUA
SWINGING ARM ASSY, REAR (BLUE) | FOR GLR
$4051.25¢2 025 627
1
#2
09263-27013
.BEARING (27X35X35)
$29.80¢14 898
1
#3
09263-20070
.BEARING (20X27X30)
$45.56¢22 781
1
#4
61281-41G00
.SPACER, CENTER
$69.15¢34 575
1
#5
61124-41G00
PLATE, BRACKET
$10.84¢5 422
1
#6
09125-06060
SCREW (6X12)
$1.93¢966
1
#7
61251-41G00
SPACER, SWINGING ARM
$43.29¢21 643
1
#8
61211-41G00
SHAFT, PIVOT
$210.43¢105 213
1
#9
09159-20006
NUT
$38.50¢19 251
1
#10
61214-42E10
NUT, PIVOT SHAFT
$52.82¢26 410
1
#11
61212-47H00
BOSS, RR SWGARM PIVOT RH
No Disponible
1
#12
61213-41G00
NUT, RR SWGARM PIVOT BOSS RH
$34.76¢17 382
1
#13
61214-47H00
BOSS, RR SWGARM PIVOT LH
No Disponible
1
#14
61215-41G00
NUT, RR SWGARM PIVOT BOSS LH
$40.97¢20 487
1
#15
02122-0512B
SCREW
$2.93¢1 466
1
#16
61273-47H00
BUFFER, CHAIN TOUCH DEFENSE
$29.50¢14 749
1
#17
09111-06072
BOLT (6X17.8)
$2.42¢1 208
1
#18
61311-21H00
CASE, CHAIN
$78.97¢39 485
1
#19
09111-06107
BOLT (6X12)
$3.09¢1 547
1
#20
09409-08308-5ES
CLIP (BLACK)
$2.36¢1 179
1
#21
61445-40F20
ADJUSTER, CHAIN LH
$51.77¢25 886
1
#22
61446-40F00
ADJUSTER, CHAIN LH
$51.77¢25 886
1
#23
09100-08287
BOLT (8X50)
$3.36¢1 679
1
#24
08316-1008A
NUT
$2.96¢1 478
1
