REAR SWINGING ARM GSX R1000L3 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

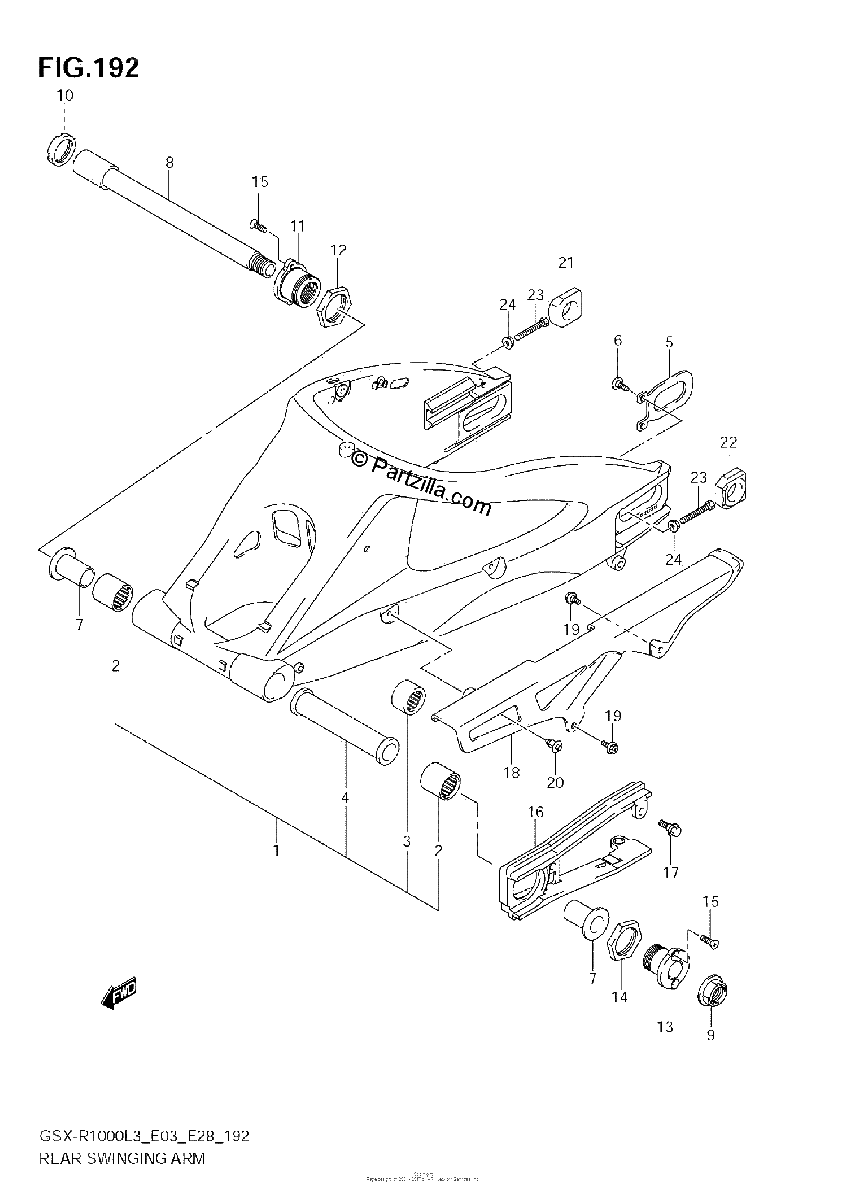

Diagrama de REAR SWINGING ARM GSX R1000L3 E03

Repuestos

#1
61000-47H10-YAP
SWINGING ARM ASSY, REAR (BLACK)
$3019.71¢1 509 856
1
#1
61000-47H10-YUA
SWINGING ARM ASSY, REAR (BLUE) | FOR GLR
$4403.54¢2 201 769
1
#2
09263-27013
.BEARING (27X35X35)
$32.39¢16 194
1
#3
09263-20070
.BEARING (20X27X30)
$49.52¢24 763
1
#4
61281-41G00
.SPACER, CENTER
$75.16¢37 581
1
#5
61124-41G00
PLATE, BRACKET
$11.79¢5 894
1
#6
09125-06060
SCREW (6X12)
$2.10¢1 050
1
#7
61251-41G00
SPACER, SWINGING ARM
$47.05¢23 525
1
#8
61211-41G00
SHAFT, PIVOT
$228.72¢114 363
1
#9
09159-20006
NUT
$41.85¢20 925
1
#10
61214-42E10
NUT, PIVOT SHAFT
$57.41¢28 706
1
#11
61212-47H00
BOSS, RR SWGARM PIVOT RH
No Disponible
1
#12
61213-41G00
NUT, RR SWGARM PIVOT BOSS RH
$37.79¢18 894
1
#13
61214-47H00
BOSS, RR SWGARM PIVOT LH
No Disponible
1
#14
61215-41G00
NUT, RR SWGARM PIVOT BOSS LH
$44.54¢22 269
1
#15
02122-0512B
SCREW
$3.19¢1 594
1
#16
61273-47H00
BUFFER, CHAIN TOUCH DEFENSE
$32.06¢16 031
1
#17
09111-06072
BOLT (6X17.8)
$2.63¢1 313
1
#18
61311-21H00
CASE, CHAIN
$85.84¢42 919
1
#19
09111-06107
BOLT (6X12)
$3.36¢1 681
1
#20
09409-08308-5ES
CLIP (BLACK)
$2.56¢1 281
1
#21
61445-40F20
ADJUSTER, CHAIN LH
$56.28¢28 138
1
#22
61446-40F00
ADJUSTER, CHAIN LH
$56.28¢28 138
1
#23
09100-08287
BOLT (8X50)
$3.65¢1 825
1
#24
08316-1008A
NUT
$3.21¢1 606
1
