FUEL TANK GSX R1000L3 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

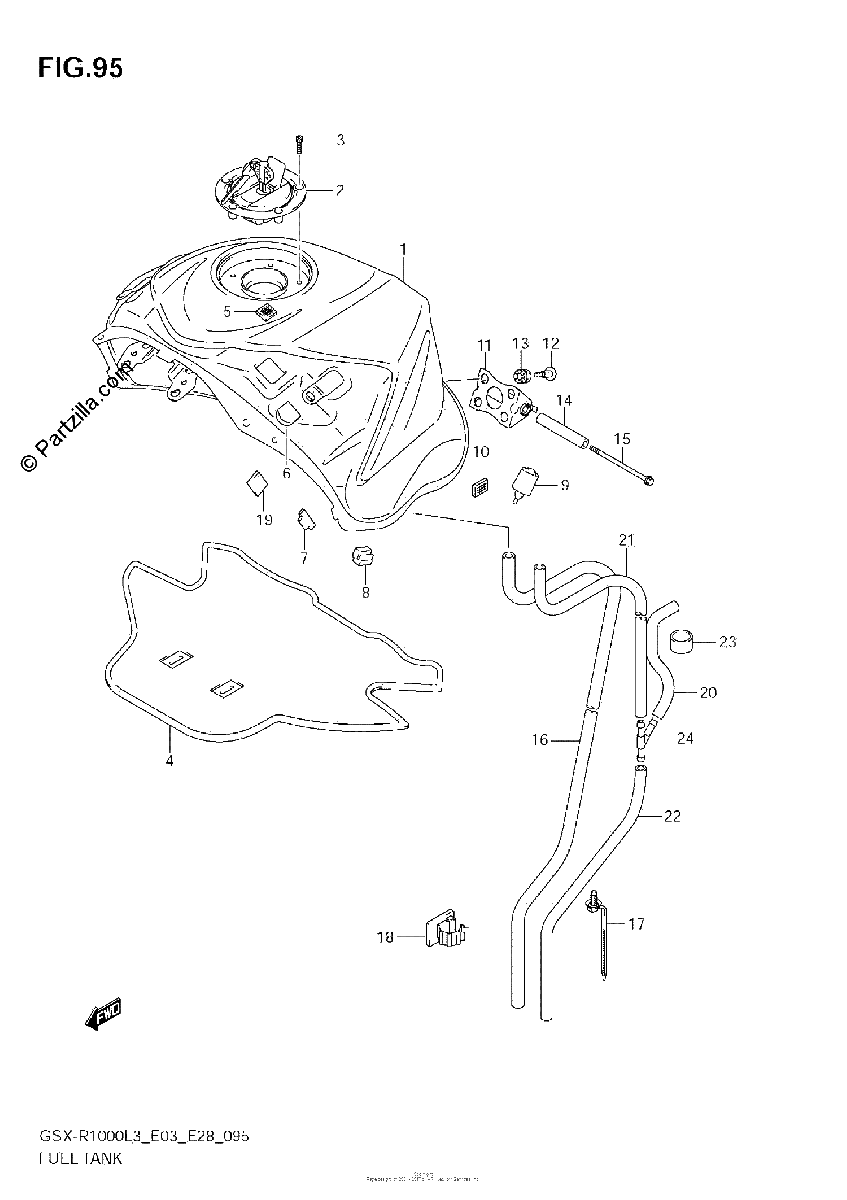

Diagrama de FUEL TANK GSX R1000L3 E28

Repuestos

#1
44100-47H01-YVB
TANK ASSY, FUEL (BLACK) | FOR KGL
$2007.50¢1 003 750
1
#1
44100-47H01-YSF
TANK ASSY, FUEL (BLUE) | FOR GLR
$2042.04¢1 021 019
1
#2
44200-16850
CAP SET, FUEL TANK
$140.95¢70 475
1
#3
09106-05017
BOLT (5X20)
$3.65¢1 825
1
#4
44191-47H00
SHIELD, FUEL TANK HEAT
No Disponible
1
#5
44572-44G00
FASTENER
$12.14¢6 069
1
#6
09329-18001
CUSHION
$2.46¢1 231
1
#7
44276-21H00
CUSHION, FUEL TANK COVER
$7.11¢3 556
1
#8
44541-41G00
CUSHION, SIDE
$7.13¢3 563
1
#9
44542-41G00
CUSHION, FUEL TANK REAR
$9.18¢4 588
1
#10
44572-13G00
FASTENER
$13.19¢6 594
1
#11
44530-41G01
BRACKET, FUEL TANK REAR
$54.75¢27 375
1
#12
09139-06191
SCREW (6X22)
$4.80¢2 400
1
#13
09320-08071
CUSHION
$3.98¢1 988
1
#14
44561-18G00
SPACER, FUEL TANK REAR
$20.23¢10 113
1
#15
09106-06119
BOLT (6X110)
$6.79¢3 394
1
#16
44423-47H00
HOSE, DRAIN
No Disponible
1
#17
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#18
09403-14311
.CLAMP
$6.36¢3 181
1
#19
61544-94500
CUSHION, HEAT SHIELD
$2.10¢1 050
1
#20
44424-15H10
HOSE, BREATHER NO.3
$18.52¢9 263
1
#21
44424-47H00
HOSE, FUEL TANK BRTHR NO.1
No Disponible
1
#22
44424-47H10
HOSE, FUEL TANK BRTHR NO.2
$11.23¢5 613
1
#23
09352-12163-600
HOSE (12X16X600) | L:600-10
No Disponible
1
#24
09367-06007
3 WAY
$4.14¢2 069
1
