FRONT DAMPER SFV650L3 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

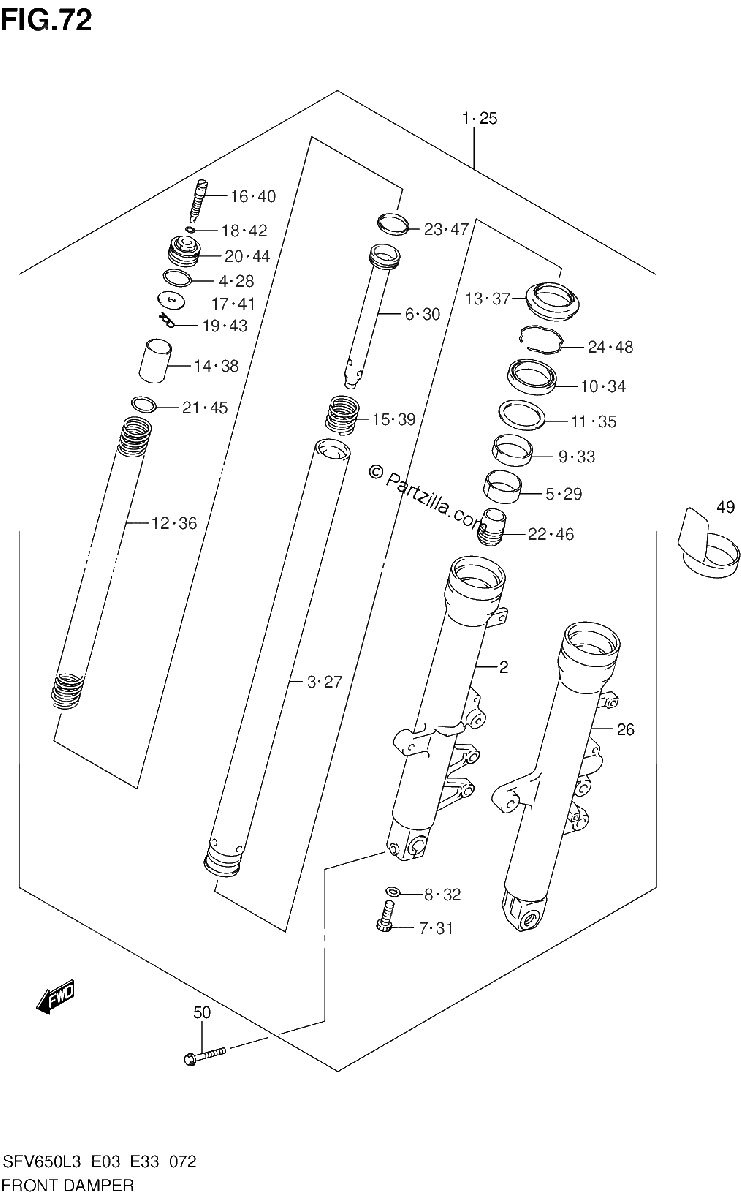

Diagrama de FRONT DAMPER SFV650L3 E33

Repuestos

#1
51103-44H20
DAMPER ASSY, FRONT FORK RH
$1153.19¢576 594
1
#2
51130-44H20
TUBE, OUTER RH
No Disponible
1
#3
51110-44H00
.TUBE, INNER
$631.69¢315 844
1
#4
51117-12C00
.O RING
$4.76¢2 381
1
#5
51121-44H00
.BUSH, SLIDE
$30.79¢15 394
1
#6
51146-17G20
.CYLINDER
No Disponible
1
#7
51147-48130
.BOLT
$5.17¢2 588
1
#8
51148-36011
.GASKET
$4.25¢2 125
1
#9
51152-01H10
.BUSH, GUIDE
$21.75¢10 875
1
#10
51153-01H10
.OIL SEAL
$32.09¢16 044
1
#11
51168-17G80
.SPACER, SEAL
$8.65¢4 325
1
#12
51171-44H00
SPRING, FRONT
$52.34¢26 169
1
#13
51173-01H00
.DUST SEAL
$13.89¢6 944
1
#14
51176-12C10
.COLLAR, SPRING
$18.79¢9 394
1
#15
51177-17G50
.SPRING, REBOUND
No Disponible
1
#16
51185-17G00
.ADJUSTER BOLT,SPRING
No Disponible
1
#17
51186-12C00
.SEAT, SPRING
$10.19¢5 094
1
#18
09280-09005
O RING (D:1.9, ID:8.6)
$4.34¢2 169
1
#19
51188-32B00
.PIN, SEAT SPRING
No Disponible
1
#20
51189-12C00
.BOLT,FORK
No Disponible
1
#21
51192-19C00
.JOINT, SPRING
$6.78¢3 388
1
#22
51195-48B30
PIECE, OIL LOCK
$29.34¢14 669
1
#23
51196-12C00
.RING, PISTON
$11.38¢5 688
1
#24
51556-38B00
.RING
$8.61¢4 306
1
#25
51104-44H20
DAMPER ASSY, FRONT FORK LH
$1335.77¢667 887
1
#26
51140-44H20
TUBE, OUTER LH
$698.65¢349 325
1
#27
51110-44H00
.TUBE, INNER
$631.69¢315 844
1
#28
51117-12C00
.O RING
$4.76¢2 381
1
#29
51121-44H00
.BUSH, SLIDE
$30.79¢15 394
1
#30
51146-17G20
.CYLINDER
No Disponible
1
#31
51147-48130
.BOLT
$5.17¢2 588
1
#32
51148-36011
.GASKET
$4.25¢2 125
1
#33
51152-01H10
.BUSH, GUIDE
$21.75¢10 875
1
#34
51153-01H10
.OIL SEAL
$32.09¢16 044
1
#35
51168-17G80
.SPACER, SEAL
$8.65¢4 325
1
#36
51171-44H00
SPRING, FRONT
$52.34¢26 169
1
#37
51173-01H00
.DUST SEAL
$13.89¢6 944
1
#38
51176-12C10
.COLLAR, SPRING
$18.79¢9 394
1
#39
51177-17G50
.SPRING, REBOUND
No Disponible
1
#40
51185-17G00
.ADJUSTER BOLT,SPRING
No Disponible
1
#41
51186-12C00
.SEAT, SPRING
$10.19¢5 094
1
#42
09280-09005
O RING (D:1.9, ID:8.6)
$4.34¢2 169
1
#43
51188-32B00
.PIN, SEAT SPRING
No Disponible
1
#44
51189-12C00
.BOLT,FORK
No Disponible
1
#45
51192-19C00
.JOINT, SPRING
$6.78¢3 388
1
#46
51195-48B30
PIECE, OIL LOCK
$29.34¢14 669
1
#47
51196-12C00
.RING, PISTON
$11.38¢5 688
1
#48
51556-38B00
.RING
$8.61¢4 306
1
#49
51201-32F00
PROTECTOR
$25.69¢12 844
1
#50
51166-01H10
BOLT
$9.96¢4 981
1
