RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

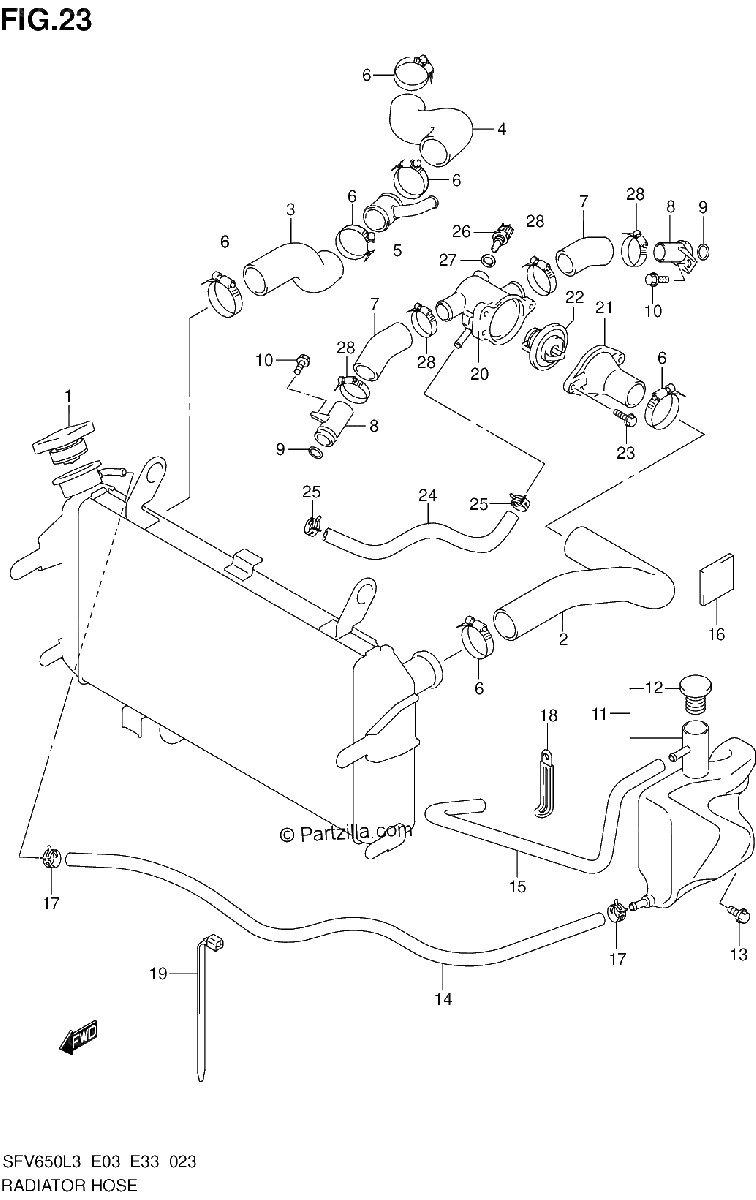

Diagrama de RADIATOR HOSE

Repuestos

#1
17730-12C30
CAP, RADIATOR, 1.1
$64.49¢32 246
1
#2
17851-44H00
HOSE, RADIATOR INLET
$73.68¢36 840
1
#3
17852-44H00
HOSE, RADIATOR OUTLET NO.1
$28.66¢14 329
1
#4
17854-44H00
HOSE, RADIATOR OUTLET NO.2
$24.62¢12 311
1
#5
17880-44H00
UNION, 3WAY
$50.62¢25 312
1
#6
09402-38512
CLAMP
$12.86¢6 429
1
#7
17853-19F00
HOSE, CONNECTOR INLET
$16.18¢8 090
1
#8
17890-06G20
UNION, CONNECTOR HOSE
$16.30¢8 148
1
#9
09280-18008
O RING (D:3.2,ID:17.8)
$6.30¢3 151
1
#10
07130-0612A
BOLT
$2.99¢1 495
1
#11
17910-44H00
TANK ASSY, RESERVOIR
No Disponible
1
#12
17931-02FA0
.CAP
$6.11¢3 053
1
#13
09111-06085
BOLT (6X12)
$4.99¢2 496
1
#14
17981-44H00
HOSE, RESERVOIR TANK INLET
No Disponible
1
#15
17982-44H00
HOSE, RESERVOIR TANK OVERFLOW
No Disponible
1
#16
63191-25C00
CUSHION, UPPER
$3.45¢1 725
1
#17
09401-08411
CLIP
$2.12¢1 058
1
#18
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#19
09407-19401
CLAMP (L:190)
$3.68¢1 840
1
#20
17662-02F11
CONNECTOR, THERMOSTAT INLET
$79.87¢39 934
1
#21
17663-17G00
CAP, THERMOSTAT CONNECTOR
$36.43¢18 216
1
#22
17670-06G70
THERMOSTAT, WATER
$51.15¢25 576
1
#23
01547-0616A
BOLT
$2.42¢1 208
1
#24
17856-44H00
HOSE, CONNECTOR TO WATER PUMP
$25.64¢12 823
1
#25
09401-12409
CLAMP
$3.58¢1 788
1
#26
13650-49X00
SENSOR, WATER TEMPERATURE
$98.93¢49 467
1
#27
09168-12017
GASKET (12X17X1)
$2.36¢1 179
1
#28
09402-28513
CLAMP
$7.56¢3 778
1
