FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

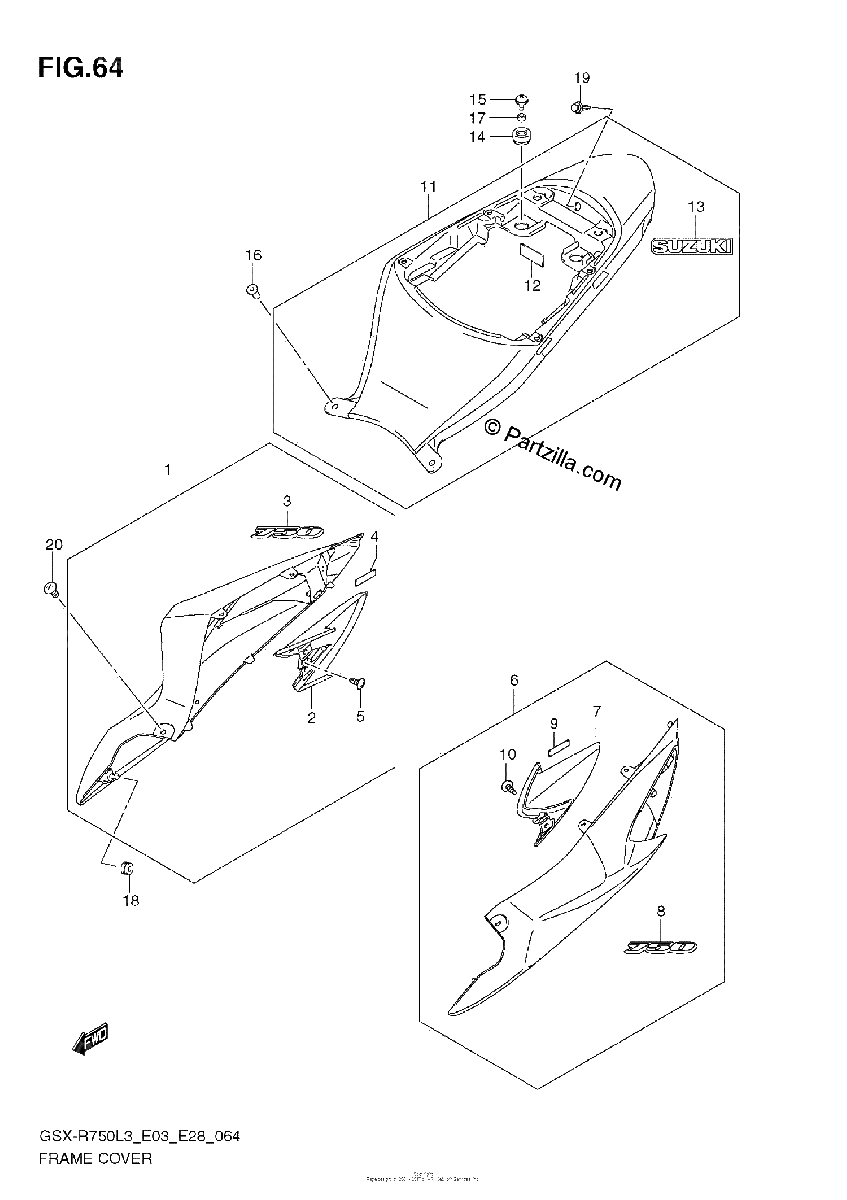

Diagrama de FRAME COVER

Repuestos

#1
47100-15J10-YLF
COVER, FRAME RH (GRAY) | FOR AA3
$216.34¢108 169
1
#1
47100-15J10-YWW
COVER, FRAME RH (WHITE) | FOR AGQ
$209.65¢104 823
1
#2
47611-14J00
.COVER, FRAME
$20.52¢10 258
1
#3
68131-15J00-JWH
EMBLEM, in.750in. (ORANGE/BLACK) | FOR GLR
$18.95¢9 476
1
#3
68131-15J00-AA3
.EMBLEM in.750in. (GRAY/BLACK) | FOR YMF
$18.09¢9 045
1
#4
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#5
03541-0512A
SCREW
$1.64¢822
1
#6
47200-15J10-YLF
COVER, FRAME LH (GRAY) | FOR AA3
$220.40¢110 199
1
#6
47200-15J10-YWW
COVER, FRAME LH (WHITE) | FOR AGQ
$205.76¢102 879
1
#7
47621-14J00
.COVER, FRAME
$20.61¢10 304
1
#8
68131-15J00-JWH
EMBLEM, in.750in. (ORANGE/BLACK) | FOR GLR
$18.95¢9 476
1
#8
68131-15J00-AA3
.EMBLEM in.750in. (GRAY/BLACK) | FOR YMF
$18.09¢9 045
1
#9
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#10
03541-0512A
SCREW
$1.64¢822
1
#11
47300-14J00
COVER, FRAME CENTER
$105.73¢52 866
1
#12
48128-14FA0
CUSHION, BOX UPPER
$8.03¢4 013
1
#13
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#14
47312-37H00
CUSHION
$3.36¢1 679
1
#15
09136-06056
SCREW (6X16)
$2.52¢1 259
1
#16
09159-05019
NUT
$7.72¢3 858
1
#17
09180-06283
SPACER (6.5X10X7)
$2.27¢1 133
1
#18
09320-06504
CUSHION
$5.36¢2 680
1
#19
09409-06314-5PK
CLIP (BLACK)
$3.31¢1 656
1
#20
02142-1520B
SCREW
$2.81¢1 403
1
