MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

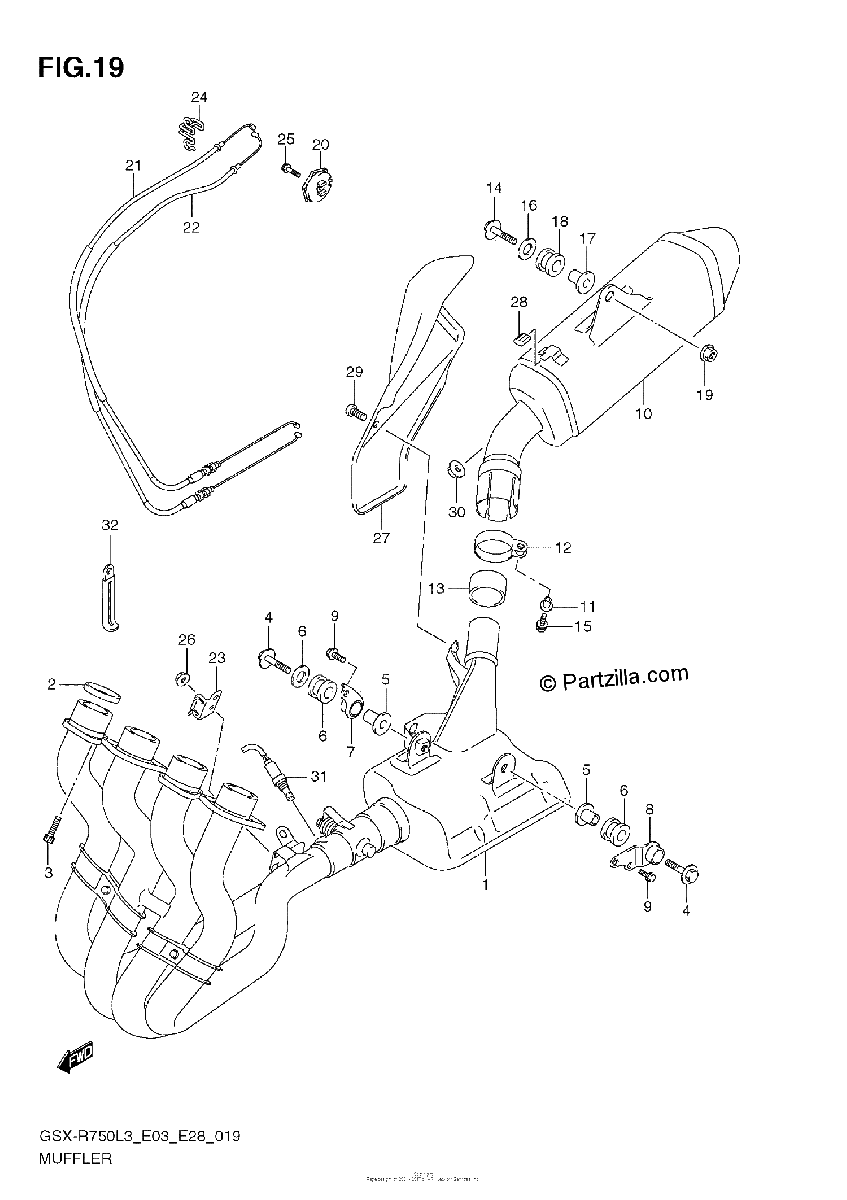

Diagrama de MUFFLER

Repuestos

#1
14100-15J00
EXHAUST
$3076.63¢1 538 313
1
#2
14181-46E10
GASKET, EXHAUST PIPE | NOT ILLUSTRATED
$8.61¢4 306
1
#3
09106-08165
BOLT (8X25)
$4.80¢2 400
1
#4
09118-08152-A05
BOLT (8X45)
$6.16¢3 081
1
#5
09180-08152
SPACER (8.6X12X24.2)
$6.85¢3 425
1
#6
09320-12077
CUSHION
$14.05¢7 025
1
#7
14770-14J00
BRACKET, CHAMBER SPRT RH
$24.41¢12 206
1
#8
14773-14J00
BRACKET, CHAMBER SPRT LH
$24.14¢12 069
1
#9
01550-0816A
BOLT
$3.01¢1 506
1
#10
14310-15J00-H01
BODY, MUFFLER
$2938.79¢1 469 394
1
#11
14458-14J00
SPACER, MUFFLER CLAMP
$9.94¢4 969
1
#12
14459-21H40
CLAMP, MUFFLER CONNECTOR
$35.09¢17 544
1
#13
14771-42F10
CONNECTOR, MUFFLER
$27.57¢13 788
1
#14
09103-08358
BOLT (8X45)
$3.43¢1 713
1
#15
09103-08392
BOLT (8X40)
$4.44¢2 219
1
#16
09160-08142
WASHER (8.5X28X1.5)
$3.63¢1 813
1
#17
09180-08152
SPACER (8.6X12X24.2)
$6.85¢3 425
1
#18
09320-12048
CUSHION
$6.01¢3 006
1
#19
08361-2508A
NUT
$2.56¢1 281
1
#20
11269-18G01
PULLEY, CONTROLLER
$38.88¢19 438
1
#21
11276-14J00
CABLE, EXH VALVE NO.1
$106.94¢53 469
1
#22
11277-14J00
CABLE, EXH VALVE NO.2
$106.94¢53 469
1
#23
14250-21H00
BRACKET, EXHAUST VALVE CABLE
$13.38¢6 688
1
#24
14252-14J00
GUIDE, EXHAUST VALVE CABLE
$9.94¢4 969
1
#25
01547-0516A
BOLT
$2.04¢1 019
1
#26
08316-1006A
NUT
$2.85¢1 425
1
#27
14780-14J00
COVER, MUF FR
$358.69¢179 344
1
#28
14795-10FA0
.GROMMET
$6.85¢3 425
1
#29
09139-06172
SCREW (6X10)
$3.65¢1 825
1
#30
09320-08066
CUSHION
$9.69¢4 844
1
#31
18213-23H01
SENSOR, OXYGEN
$529.52¢264 763
1
#32
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
