TURNSIGNAL LAMP E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

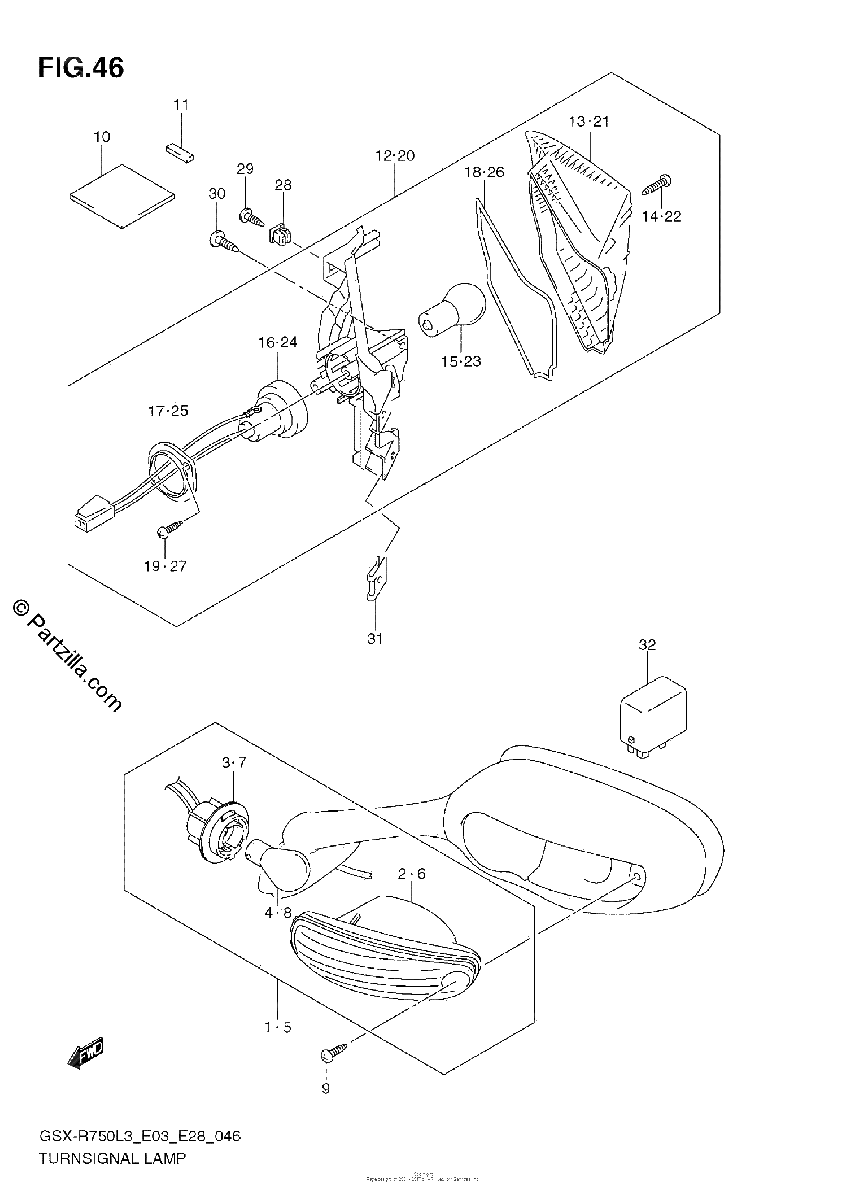

Diagrama de TURNSIGNAL LAMP E33

Repuestos

#1
35601-41G00
LAMP ASSY, FRONT TURNSIGNAL R
$62.09¢31 044
1
#2
35610-41G00
.LAMP UNIT, RH
$55.18¢27 588
1
#3
35618-10G50
.SOCKET, RH
$37.52¢18 762
1
#4
09471-12186
.BULB (12V,21W)
$17.97¢8 987
1
#5
35602-41G00
LAMP ASSY, FRONT TURNSIGNAL L
$62.09¢31 044
1
#6
35630-41G00
.LAMP UNIT, LH
$41.83¢20 913
1
#7
35638-10G50
.SOCKET, LH
$36.14¢18 072
1
#8
09471-12186
.BULB (12V,21W)
$17.97¢8 987
1
#9
09132-04032
SCREW (4X20)
$2.37¢1 185
1
#10
33652-20C00
CUSHION (50X50X5)
$3.36¢1 679
1
#11
94443-21H00
.TAPE (5X20X0.4)
$4.91¢2 455
1
#12
35603-14J30
LAMP ASSY, REAR TURNSIGNAL RH
$145.28¢72 640
1
#13
35652-14J30
LENS RH
$46.15¢23 075
1
#14
03211-0416A
.SCREW
$1.71¢857
1
#15
09471-12186
.BULB (12V,21W)
$17.97¢8 987
1
#16
35658-41G00
.SOCKET CORD, RH
$39.94¢19 970
1
#17
35716-07A30
.PLATE
$12.30¢6 152
1
#18
35653-47H00
.GASKET
$13.42¢6 710
1
#19
03211-0412A
.SCREW
$2.42¢1 208
1
#20
35604-14J30
LAMP ASSY, REAR TURNSIGNAL LH
$142.54¢71 271
1
#21
35672-14J30
LENS LH
$48.39¢24 196
1
#22
03211-0416A
.SCREW
$1.71¢857
1
#23
09471-12186
.BULB (12V,21W)
$17.97¢8 987
1
#24
35678-41G00
.SOCKET CORD, LH
$39.94¢19 970
1
#25
35716-07A30
.PLATE
$12.30¢6 152
1
#26
35653-47H00
.GASKET
$13.42¢6 710
1
#27
03211-0412A
.SCREW
$2.42¢1 208
1
#28
09148-04021
NUT
$1.71¢857
1
#29
03541-0412A
SCREW
$1.64¢822
1
#30
03511-0512A
SCREW
$2.01¢1 006
1
#31
09148-05038
NUT
$2.36¢1 179
1
#32
38610-03F00
RELAY ASSY, TURNSIGNAL LAMP
$98.27¢49 134
1
