CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

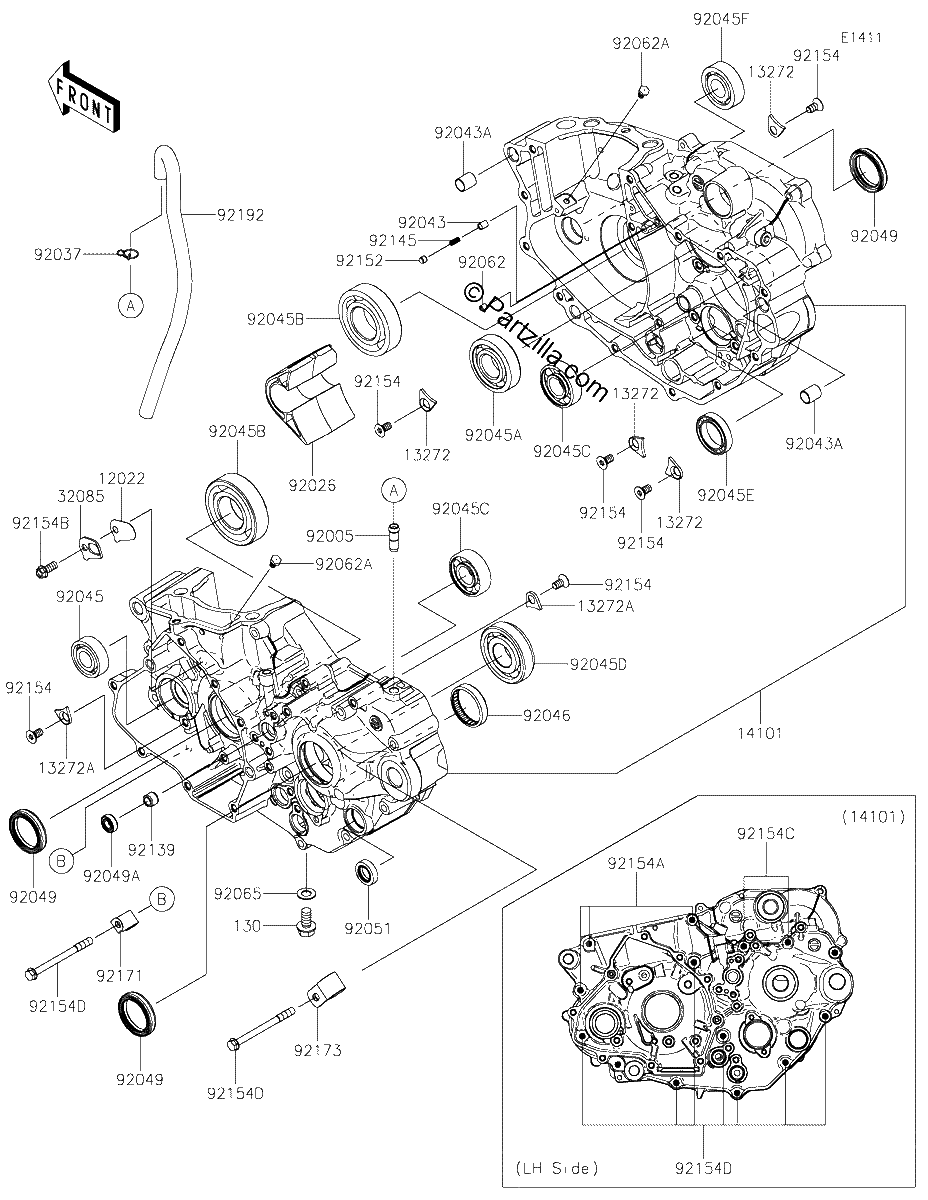

Diagrama de CRANKCASE

Repuestos

#130
130AA0816
BOLT-FLANGED,8X16
$0.93¢463
1
#12022
12022-0010
VALVE-REED
$10.94¢5 469
1
#13272
13272-0488
PLATE
$6.05¢3 025
1
#13272A
13272-0670
PLATE
$6.05¢3 025
1
#14101
14101-0046
SET CRANKCASE
$804.63¢402 313
1
#32085
32085-0876
STOPPER,VALVE-REED
$3.84¢1 919
1
#92005
92005-1369
FITTING
$8.71¢4 356
1
#92026
92026-0979
SPACER
$29.98¢14 988
1
#92037
92037-1972
CLAMP,TUBE
$4.29¢2 144
1
#92043
92043-1676
PIN,PLUNGER
$8.66¢4 331
1
#92043A
92043-4009
PIN,10.1X12X14
$6.09¢3 044
1
#92045
92045-0037
BEARING BALL,6202SH2C3
$13.86¢6 931
1
#92045F
92045-1465
BEARING BALL,6203
$35.81¢17 906
1
#92045B
92045-0827
BEARING-BALL,CRANKSHAFT MAIN
$73.45¢36 725
1
#92045A
92045-0051
BEARING BALL,22X50X14
$36.19¢18 094
1
#92045E
92045-1432
BEARING BALL,6805JRZ
$36.94¢18 469
1
#92045C
92045-1287
BEARING-BALL,TMB203LU
$27.74¢13 869
1
#92045D
92045-1335
BEARING BALL,SX04A81C3
$74.55¢37 275
1
#92046
92046-1221
BEARING NEEDLE,7E HKS33X38X8
$37.00¢18 500
1
#92049A
92049-0808
SEAL OIL
$8.92¢4 462
1
#92049
92049-0030
SEAL OIL,TC 30 40 7
$20.92¢10 462
1
#92051
92051-005
SEAL-OIL,TB13225.5
$7.70¢3 850
1
#92062A
92062-0576
NOZZLE
$15.94¢7 969
1
#92062
92062-0029
NOZZLE
$6.11¢3 056
1
#92065
92065-023
GASKET,8.5X16X1
$3.43¢1 713
1
#92139
92139-0907
BUSHING
$10.67¢5 337
1
#92145
92145-0453
SPRING
$3.85¢1 925
1
#92152
92152-2453
COLLAR
$1.72¢862
1
#92154D
92154-4134
BOLT,FLANGED,6X60
$1.42¢712
1
#92154C
92154-2981
BOLT,FLANGED,6X70
$1.42¢712
1
#92154B
92154-2964
BOLT,FLANGED,6X14
$0.78¢388
1
#92154A
92154-1929
BOLT,FLANGED,6X65
$1.55¢775
1
#92154
92154-1621
BOLT,TORX
$3.89¢1 944
1
#92171
92171-0761
CLAMP
$9.90¢4 950
1
#92173
92173-2551
CLAMP
$3.01¢1 506
1
#92192
92192-1886
TUBE,BREATHER
$10.41¢5 206
1
