FOOTREST VL1500L3 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

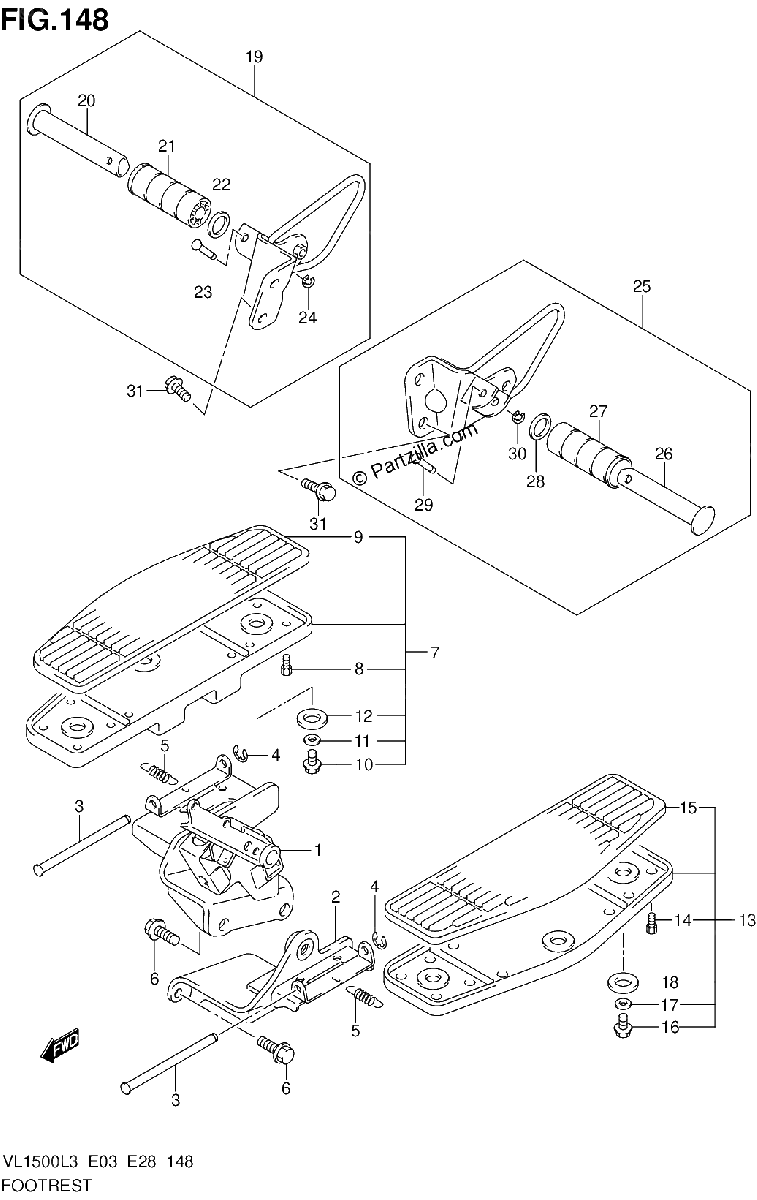

Diagrama de FOOTREST VL1500L3 E33

Repuestos

#1
43510-06J00
BRACKET, FRONT FOOTREST RH
$277.36¢138 679
1
#2
43520-06J01
BRACKET, FRONT FOOTREST LH
$119.50¢59 748
1
#3
43539-10F00
PIN
$9.17¢4 583
1
#4
08332-1106A
.E RING
$1.71¢857
1
#5
09443-11033
SPRING
$4.88¢2 438
1
#6
01550-1025B
BOLT
$4.94¢2 472
1
#7
43501-10F11
FOOTREST ASSY, FRONT RH
$257.23¢128 616
1
#8
43576-07D01
BOLT, BANK SENSOR
$9.71¢4 853
1
#9
43550-10F10
.RUBBER
No Disponible
1
#10
01550-0610A
.BOLT
$2.36¢1 179
1
#11
09160-06158
.WASHER (6.5X22X1.6)
$2.78¢1 392
1
#12
09320-10036
.CUSHION
$2.70¢1 351
1
#13
43502-10F11
FOOTREST ASSY, FRONT LH
$257.23¢128 616
1
#14
43576-07D01
BOLT, BANK SENSOR
$9.71¢4 853
1
#15
43550-10F10
.RUBBER
No Disponible
1
#16
01550-0610A
.BOLT
$2.36¢1 179
1
#17
09160-06158
.WASHER (6.5X22X1.6)
$2.78¢1 392
1
#18
09320-10036
.CUSHION
$2.70¢1 351
1
#19
43600-40H50
FOOTREST ASSY, PILLION RH
$213.78¢106 893
1
#20
43610-39G00
BAR
$27.97¢13 984
1
#21
43612-39G00
.RUBBER
$8.05¢4 025
1
#22
09160-19024
.WASHER (19.5X32X2)
$3.20¢1 598
1
#23
09208-06007
PIN
$3.61¢1 805
1
#24
08332-1104A
E RING
$1.64¢822
1
#25
43700-40H50
FOOTREST ASSY, PILLION LH
No Disponible
1
#26
43610-39G00
BAR
$27.97¢13 984
1
#27
43612-39G00
.RUBBER
$8.05¢4 025
1
#28
09160-19024
.WASHER (19.5X32X2)
$3.20¢1 598
1
#29
09208-06007
PIN
$3.61¢1 805
1
#30
08332-1104A
E RING
$1.64¢822
1
#31
09103-08412
BOLT (8X16)
$3.66¢1 829
1
