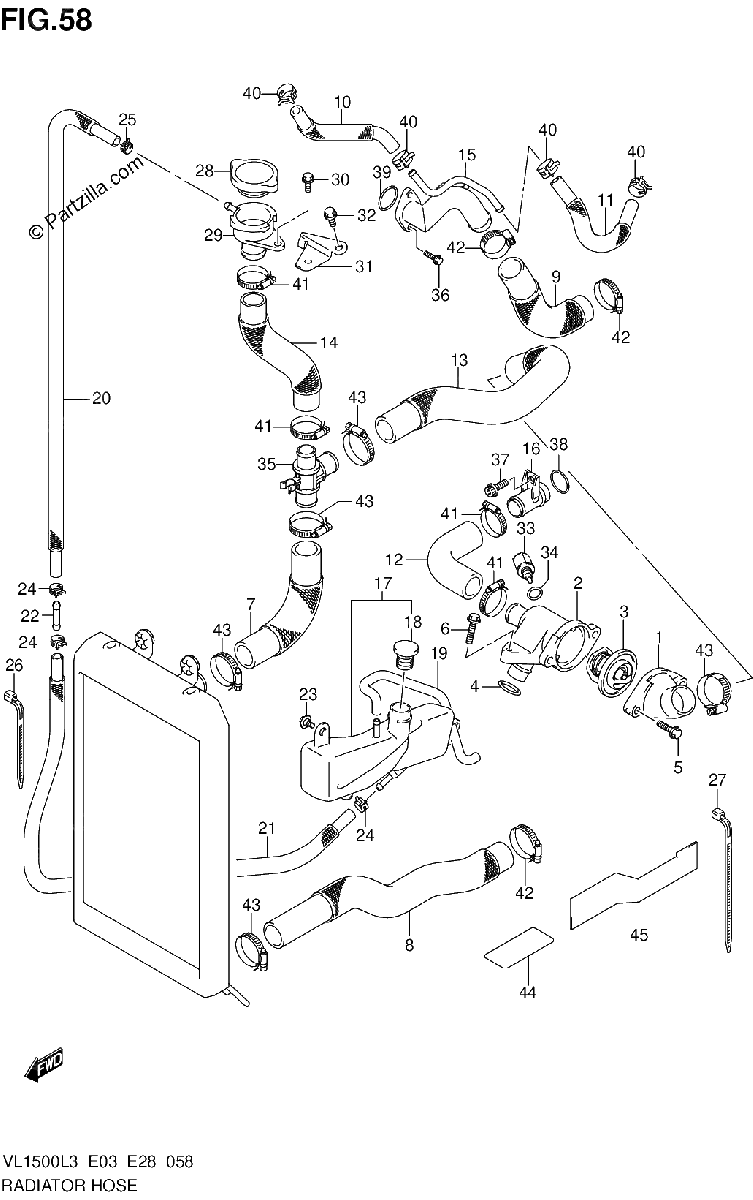

RADIATOR HOSE VL1500L3 E03
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, THERMOSTAT
$37.05¢18 527
#2
CONNECTOR, THERMOSTAT INLET
No Disponible
#3
THERMOSTAT, WATER
$28.27¢14 133
#4
O RING (D:3.2,ID:17.8)
$6.30¢3 151
#5
BOLT
$2.36¢1 179
#6
BOLT
$2.42¢1 208
#7
HOSE, RADIATOR INLET
$32.80¢16 399
#8
HOSE, RADIATOR OUTLET
$62.19¢31 096
#9
HOSE, CYLINDER INLET
No Disponible
#10
HOSE, WATER BYPASS UPPER
No Disponible
#11
HOSE, WATER BYPASS LOWER
No Disponible
#12
HOSE, RR CYLINDER HEAD OUTLET
$29.35¢14 674
#13
HOSE, THERMOSTAT OUTLET
$61.20¢30 601
#14
HOSE, CONDUCTION
$40.08¢20 039
#15
PIPE, CYLINDER WATER INLET
No Disponible
#16
UNION, CONNECTOR HOSE
$16.30¢8 148
#17
TANK ASSY, RESERVOIR
No Disponible
#18
.CAP
$6.11¢3 053
#19
HOSE, TANK OVERFLOW
No Disponible
#20
HOSE, TANK INLET NO.1
No Disponible
#21
HOSE (5X9X600) | L:600-500
$8.83¢4 416
#22
UNION
$6.90¢3 450
#23
BOLT (6X12)
$4.99¢2 496
#24
CLIP
$2.12¢1 058
#25
CLIP
$3.37¢1 685
#26
CLAMP (L:125)
$2.69¢1 346
#27
CLAMP (L:190)
$3.68¢1 840
#28
CAP, RADIATOR (1.1)
$46.99¢23 495
#29
CONDUCTION, RADIATOR
$29.15¢14 576
#30
BOLT
$1.78¢891
#31
BRACKET, CONDUCTION
No Disponible
#32
BOLT
$2.42¢1 208
#33
SENSOR, WATER TEMPERATURE
$98.93¢49 467
#34
GASKET (12X17X1)
$2.36¢1 179
#35
JOINT, 3 WAY
$14.12¢7 061
#36
BOLT (6X16)
$2.42¢1 208
#37
BOLT
$2.99¢1 495
#38
O RING (D:3.2,ID:17.8)
$6.30¢3 151
#39
O RING (D:2.4,ID:26.2)
$2.77¢1 386
#40
CLAMP
$3.58¢1 788
#41
CLAMP
$15.50¢7 751
#42
CLAMP
$12.86¢6 429
#43
CLAMP
$10.35¢5 175
#44
TAPE
$17.42¢8 711
#45
CUSHION, RESERVOIR TANK HOSE
No Disponible
