REAR TURNSIGNAL LAMP VL1500L3 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

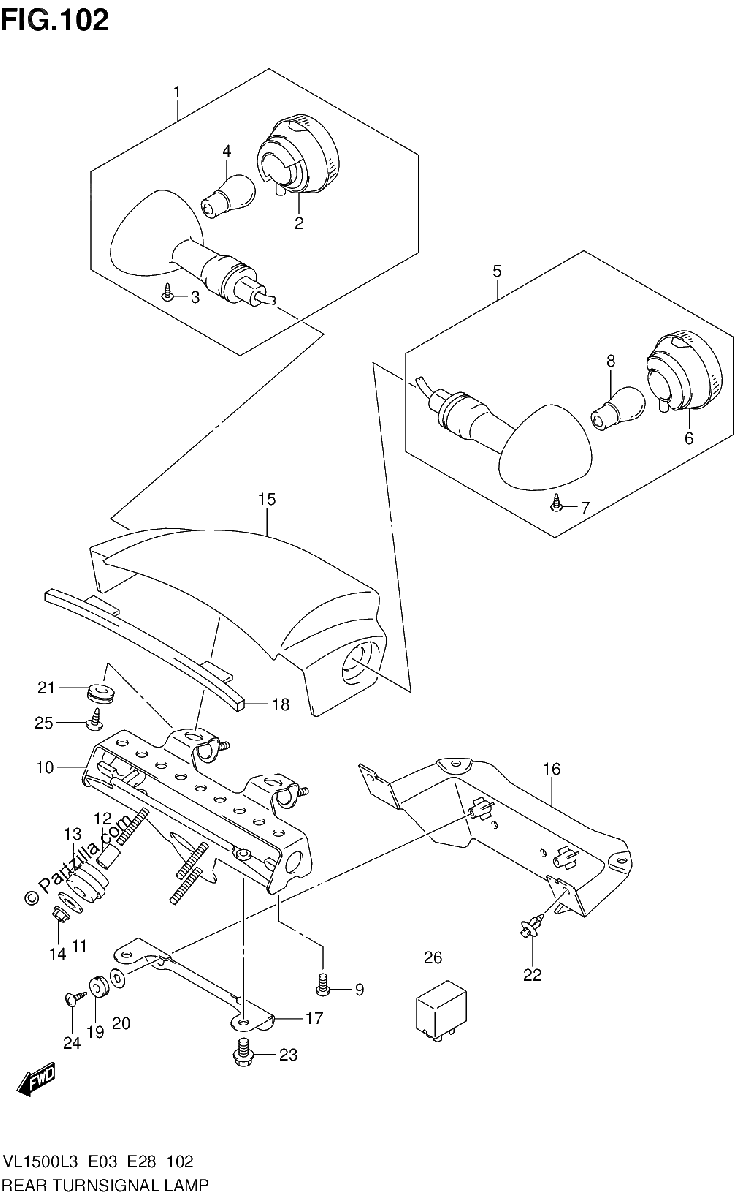

Diagrama de REAR TURNSIGNAL LAMP VL1500L3 E03

Repuestos

#1
35603-38AH0
LAMP ASSY, REAR RH
$189.21¢94 606
1
#2
35610-38AH0
.LENS, RH
$52.65¢26 325
1
#3
35623-38AA0
.SCREW (4X10)
$6.09¢3 044
1
#4
09471-12045
.BULB (12V,21W) | FOR CLEAR
$3.85¢1 925
1
#5
35604-38AH0
LAMP ASSY, REAR LH
$182.13¢91 063
1
#6
35630-38AH0
.LENS, LH
$52.65¢26 325
1
#7
35623-38AA0
.SCREW (4X10)
$6.09¢3 044
1
#8
09471-12045
.BULB (12V,21W) | FOR CLEAR
$3.85¢1 925
1
#9
09103-06507
BOLT (6X14)
$5.66¢2 831
1
#10
35620-43H01
BRACKET, RR TURN
$72.88¢36 438
1
#11
09160-06077
WASHER (6.5X20X1.2)
$2.46¢1 231
1
#12
09180-06195
SPACER (6.4X10X18)
$3.43¢1 713
1
#13
09320-10504
CUSHION
$7.60¢3 800
1
#14
08316-1006A
NUT
$2.85¢1 425
1
#15
35621-06J00
COVER, REAR TURNSIGNAL UPPER
$190.09¢95 044
1
#16
35622-06J00
COVER, RR TURN LOWER
$57.73¢28 863
1
#17
35623-43H00
BRACKET, RR TURN COVER
$14.28¢7 138
1
#18
35657-06J00
GASKET, REAR TURNSIGNAL COVER
No Disponible
1
#19
09160-04022
WASHER (4.3X14X0.8)
$2.84¢1 419
1
#20
09320-06016
CUSHION
$2.76¢1 381
1
#21
09320-08066
CUSHION
$9.69¢4 844
1
#22
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#23
01550-0612A
BOLT
$2.56¢1 281
1
#24
03541-0412A
SCREW
$1.79¢894
1
#25
03541-0510A
SCREW
$1.86¢931
1
#26
38610-03F00
RELAY ASSY, TURNSIGNAL LAMP
$106.81¢53 406
1
