FRAME COVER VL1500L3 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

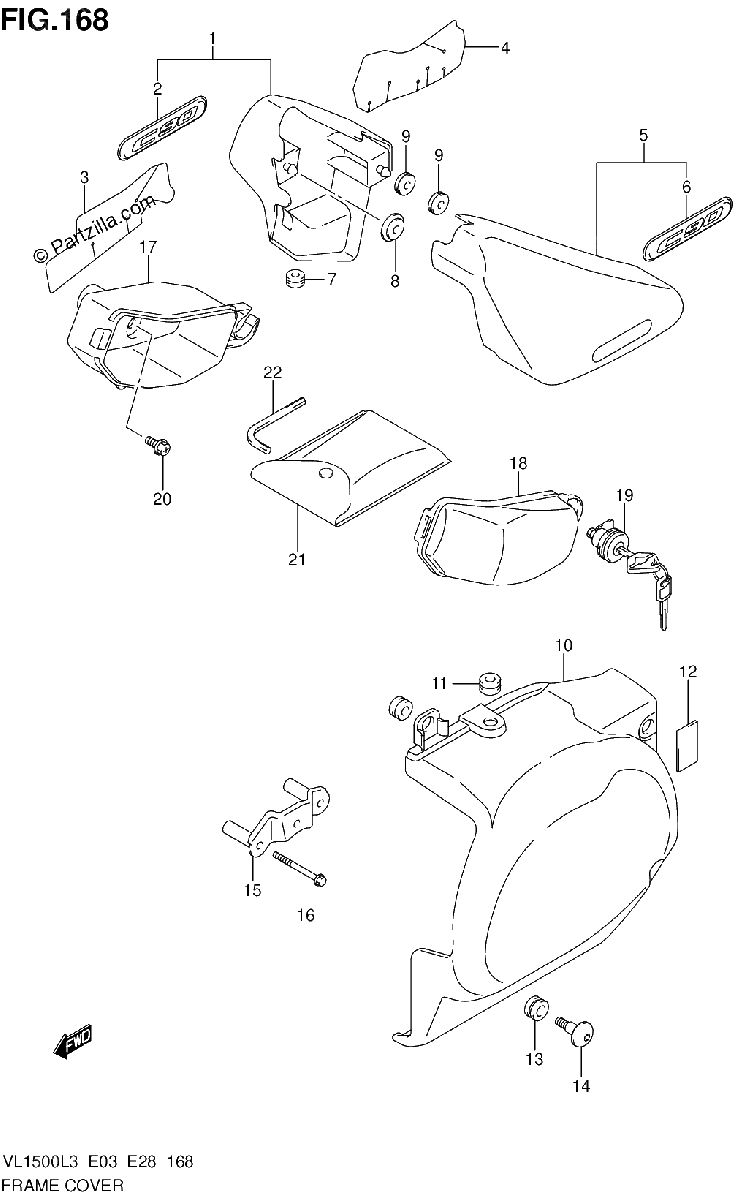

Diagrama de FRAME COVER VL1500L3 E33

Repuestos

#1
47110-06J00-YKZ
COVER, SIDE RH (BLUE)
$127.39¢63 693
1
#2
68131-10FA0
.EMBLEM, "C90"
$47.93¢23 966
1
#3
47166-06J10
SHIELD, SIDE COVER RH
No Disponible
1
#4
47166-06J20
SHIELD, SIDE COVER RH
$7.01¢3 507
1
#5
47210-06J00-YKZ
COVER, SIDE LH (BLUE)
No Disponible
1
#6
68131-10FA0
.EMBLEM, "C90"
$47.93¢23 966
1
#7
47167-06J00
CUSHION, SIDE COVER LOWER RH
$9.49¢4 744
1
#8
47191-06J00
CUSHION, SIDE COVER FRONT
$6.01¢3 007
1
#9
09320-08018
CUSHION | LH
$3.36¢1 679
1
#10
47231-40H00
COVER, LOWER LH
$398.15¢199 077
1
#11
09320-06504
CUSHION
$5.36¢2 680
1
#12
51827-01A00
CUSHION | LH
$7.65¢3 824
1
#13
09320-09016
CUSHION
$2.36¢1 179
1
#14
09139-06190
BOLT (6X20)
$4.52¢2 260
1
#15
47250-06J00
BRACKET, LOWER COVER LH
$36.20¢18 101
1
#16
01547-0650A
.BOLT
$2.90¢1 449
1
#17
92211-06J00
BODY, LUGGAGE BOX
No Disponible
1
#18
92212-06J00
LID
No Disponible
1
#19
95700-07860
LOCK SET, FUEL LID
$83.29¢41 647
1
#20
09111-06107
BOLT (6X12)
$3.09¢1 547
1
#21
09800-21056
TOOL ASSY
$49.28¢24 639
1
#22
09816-00050
SPANNER, 6 HEXAGON
$6.07¢3 036
1
