INTAKE PIPE GSX R1000ZL3 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

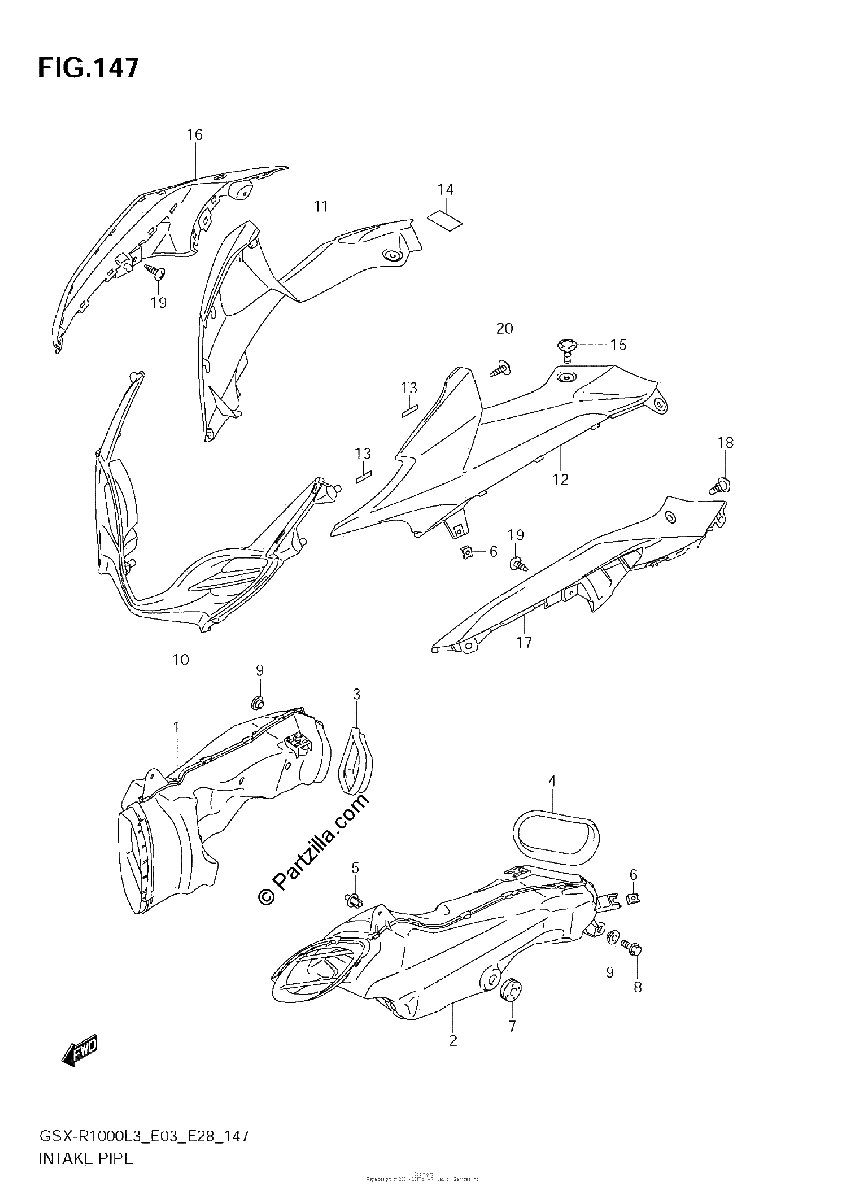

Diagrama de INTAKE PIPE GSX R1000ZL3 E33

Repuestos

#1
94420-47H00
PIPE, AIR INTAKE RH
$165.85¢82 925
1
#2
94430-47H00
PIPE, AIR INTAKE LH
$168.98¢84 488
1
#3
94423-47H00
MOLDING, RH
$24.09¢12 044
1
#4
94433-47H00
MOLDING, LH
$23.65¢11 825
1
#5
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#6
09148-05052
NUT
$3.96¢1 981
1
#7
09320-08028
CUSHION
$3.65¢1 825
1
#8
01550-0616A
BOLT
$2.56¢1 281
1
#9
09169-06082
.WASHER
$5.66¢2 831
1
#10
94671-47H10-YVZ
COVER, INTAKE FRONT (RED)
$299.65¢149 825
1
#11
94672-47H10-YKV
COVER, INTAKE RH (BLACK) | FOR HTL
$331.90¢165 950
1
#12
94682-47H10-YKV
COVER, INTAKE LH (BLACK) | FOR HTL
$325.75¢162 875
1
#13
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#14
33652-29F00
PROTECTOR, HARNESS (30X80X1.0)
$3.65¢1 825
1
#15
94479-35F00
CLIP
$6.70¢3 350
1
#16
94473-47H00-YWW
COWL, SIDE UPPER RH (BLUE) | FOR AGQ
$410.44¢205 219
1
#17
94483-47H00-YWW
COWL, SIDE UPPER LH (BLUE) | FOR AGQ
$410.44¢205 219
1
#18
09139-05077
SCREW (5X16)
$3.88¢1 938
1
#19
03541-0516A
SCREW
$1.79¢894
1
#20
09132-05050
SCREW (5X12)
$2.40¢1 200
1
