WIRING HARNESS DR200SEL3 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

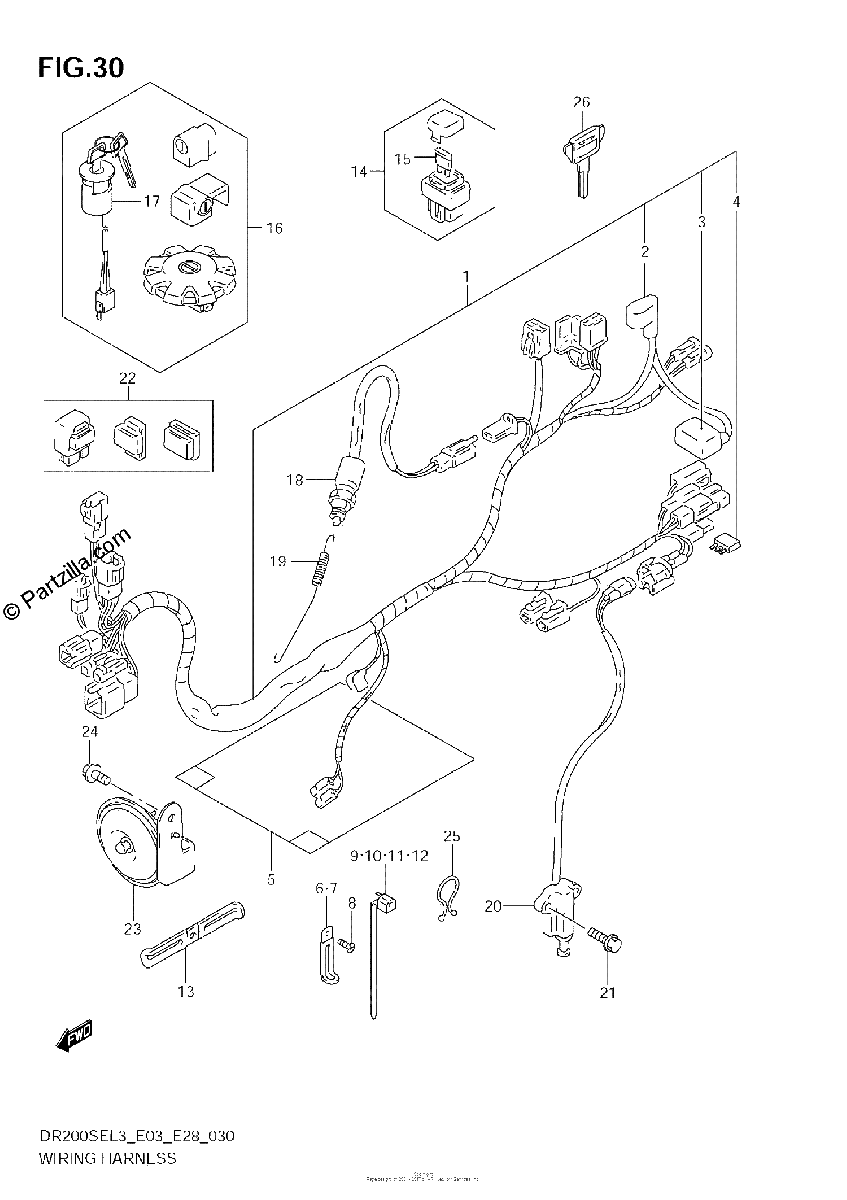

Diagrama de WIRING HARNESS DR200SEL3 E28

Repuestos

#1
36610-42A50
HARNESS, WIRING
No Disponible
1
#2
31861-10D00
.CAP, STARTER RELAY
No Disponible
1
#3
33624-10D00
.CAP, BATTERY PLUS
$7.82¢3 910
1
#4
36611-38A10
.DIODE
$14.85¢7 423
1
#4
36611-38A00
.DIODE
$14.85¢7 423
1
#5
36618-15D20
COVER, WIRE HARNESS
$23.43¢11 713
1
#6
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#7
09404-06434
CLAMP (L:80 T:1.0) | SHIELD
$2.10¢1 052
1
#7
09404-06433
CLAMP (L:80)
$2.10¢1 052
1
#8
03541-0410B
SCREW
$2.28¢1 138
1
#9
09407-11401
CLAMP (L:95)
$3.19¢1 593
1
#10
09407-14403
CLAMP (L:125)
$2.69¢1 346
1
#11
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
#12
09407-25401
CLAMP (L:235)
$5.05¢2 524
1
#13
36651-05301
CLAMP, STARTER MOTOR LEAD
No Disponible
1
#14
36740-24B01
FUSE ASSY, MAIN
$35.02¢17 509
1
#15
09481-20101
FUSE (20A)
$2.55¢1 277
1
#16
37000-44821
LOCK SET
No Disponible
1
#17
37110-44A20
SWITCH ASSY, IGNITION
$129.41¢64 705
1
#18
37740-45D00
SWITCH ASSY, STOP LAMP
$22.68¢11 339
1
#18
37740-31D00
SWITCH ASSY, STOP
$31.85¢15 927
1
#19
09443-06064
SPRING
$6.29¢3 145
1
#20
37840-44X50
SWITCH ASSY, SIDE STAND
$83.28¢41 642
1
#21
01550-0620B
BOLT (6X20)
$2.85¢1 426
1
#22
38740-24X50
RELAY ASSY, FAN MOTOR
$49.59¢24 794
1
#23
38500-44B00
HORN ASSY
$108.94¢54 470
1
#24
01550-0612A
BOLT
$2.36¢1 179
1
#25
09408-00012
CLIP (ID:11.5)
$2.99¢1 495
1
#26
37146-03A20
KEY, BLANK | OPT
$15.03¢7 515
1
#26
37146-03A30
KEY, BLANK | OPT
$11.60¢5 802
1
#26
37146-03A10
KEY, BLANK | OPT
$14.46¢7 228
1
#26
37146-03A00
KEY, BLANK | OPT
$11.17¢5 583
1
#26-1
37146-03A00
KEY, BLANK | OPT
$11.17¢5 583
1
#26-2
37146-03A10
KEY, BLANK | OPT
$14.46¢7 228
1
#26-3
37146-03A20
KEY, BLANK | OPT
$15.03¢7 515
1
#26-4
37146-03A30
KEY, BLANK | OPT
$11.60¢5 802
1
