FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

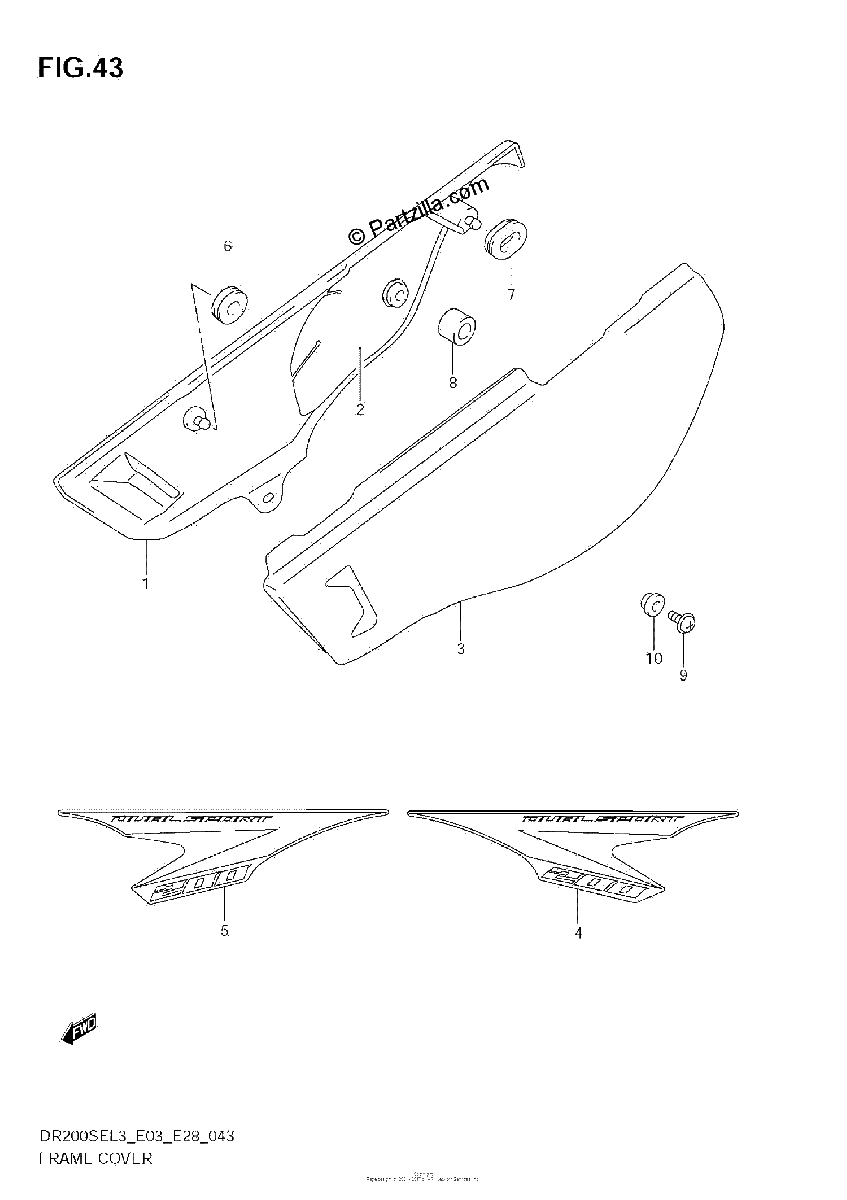

Diagrama de FRAME COVER

Repuestos

#1
47111-44AC0-30H
COVER, FRAME RH (WHITE)
$123.53¢61 766
1
#1
47111-44AC0-019
COVER, FRAME RH (BLACK)
$128.25¢64 124
1
#2
47166-44AA0
SHIELD, FRAME COVER RH
$37.72¢18 860
1
#3
47211-44AB0-019
COVER, FRAME LH (BLACK)
$128.25¢64 124
1
#3
47211-44AB0-30H
COVER, FRAME LH (WHITE)
$118.93¢59 467
1
#4
68135-42A30-HLW
TAPE, RH *{FOR 30H}*
$22.14¢11 069
1
#4
68135-42A30-HLV
TAPE, RH *{FOR 019}*
No Disponible
1
#5
68145-42A30-HLV
TAPE, LH | FOR 019
No Disponible
1
#5
68145-42A30-HLW
TAPE, LH | FOR 30H
$22.14¢11 069
1
#6
09320-08018
CUSHION | LH
$3.36¢1 679
1
#7
09320-08029
CUSHION
$2.90¢1 449
1
#8
09321-10027
CUSHION
$8.20¢4 100
1
#9
09136-06017
SCREW (6X16)
$2.79¢1 397
1
#10
09169-06031
WASHER
$2.36¢1 179
1
#10
09169-06041
WASHER
$2.36¢1 179
1
#1-1
47111-44AC0-019
COVER, FRAME RH (BLACK)
$128.25¢64 124
1
#1-2
47111-44AC0-30H
COVER, FRAME RH (WHITE)
$123.53¢61 766
1
#3-1
47211-44AB0-019
COVER, FRAME LH (BLACK)
$128.25¢64 124
1
#3-2
47211-44AB0-30H
COVER, FRAME LH (WHITE)
$118.93¢59 467
1
#4-1
68135-42A30-HLV
TAPE, RH *{FOR 019}*
No Disponible
1
#4-2
68135-42A30-HLW
TAPE, RH *{FOR 30H}*
$22.14¢11 069
1
#5-1
68145-42A30-HLV
TAPE, LH | FOR 019
No Disponible
1
#5-2
68145-42A30-HLW
TAPE, LH | FOR 30H
$22.14¢11 069
1
