WIRING HARNESS DR200SEL3 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

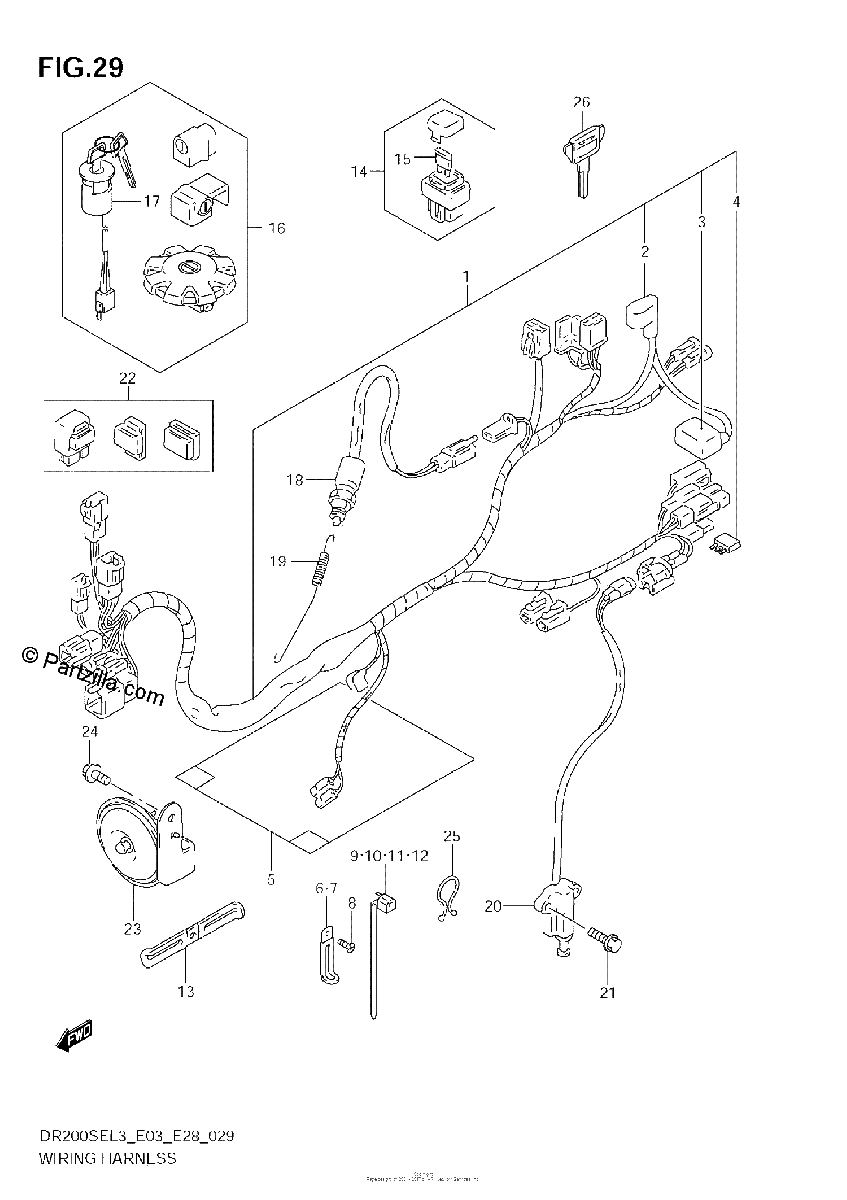

Diagrama de WIRING HARNESS DR200SEL3 E03

Repuestos

#1
36610-42A50
HARNESS, WIRING
No Disponible
1
#2
31861-10D00
.CAP, STARTER RELAY
No Disponible
1
#3
33624-10D00
.CAP, BATTERY PLUS
$8.50¢4 250
1
#4
36611-38A10
.DIODE
$16.14¢8 069
1
#4
36611-38A00
.DIODE
$16.14¢8 069
1
#5
36618-15D20
COVER, WIRE HARNESS
$25.46¢12 731
1
#6
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#7
09404-06434
CLAMP (L:80 T:1.0) | SHIELD
$2.29¢1 144
1
#7
09404-06433
CLAMP (L:80)
$2.29¢1 144
1
#8
03541-0410B
SCREW
$2.48¢1 238
1
#9
09407-11401
CLAMP (L:95)
$3.46¢1 731
1
#10
09407-14403
CLAMP (L:125)
$2.92¢1 463
1
#11
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
#12
09407-25401
CLAMP (L:235)
$5.49¢2 744
1
#13
36651-05301
CLAMP, STARTER MOTOR LEAD
No Disponible
1
#14
36740-24B01
FUSE ASSY, MAIN
$38.06¢19 031
1
#15
09481-20101
FUSE (20A)
$2.78¢1 388
1
#16
37000-44821
LOCK SET
No Disponible
1
#17
37110-44A20
SWITCH ASSY, IGNITION
$140.66¢70 331
1
#18
37740-45D00
SWITCH ASSY, STOP LAMP
$24.65¢12 325
1
#18
37740-31D00
SWITCH ASSY, STOP
$34.63¢17 313
1
#19
09443-06064
SPRING
$6.84¢3 419
1
#20
37840-44X50
SWITCH ASSY, SIDE STAND
$90.53¢45 263
1
#21
01550-0620B
BOLT (6X20)
$3.10¢1 550
1
#22
38740-24X50
RELAY ASSY, FAN MOTOR
$53.90¢26 950
1
#23
38500-44B00
HORN ASSY
$118.41¢59 206
1
#24
01550-0612A
BOLT
$2.56¢1 281
1
#25
09408-00012
CLIP (ID:11.5)
$3.25¢1 625
1
#26
37146-03A20
KEY, BLANK | OPT
$16.34¢8 169
1
#26
37146-03A30
KEY, BLANK | OPT
$12.61¢6 306
1
#26
37146-03A10
KEY, BLANK | OPT
$15.71¢7 856
1
#26
37146-03A00
KEY, BLANK | OPT
$12.14¢6 069
1
#26-1
37146-03A00
KEY, BLANK | OPT
$12.14¢6 069
1
#26-2
37146-03A10
KEY, BLANK | OPT
$15.71¢7 856
1
#26-3
37146-03A20
KEY, BLANK | OPT
$16.34¢8 169
1
#26-4
37146-03A30
KEY, BLANK | OPT
$12.61¢6 306
1
